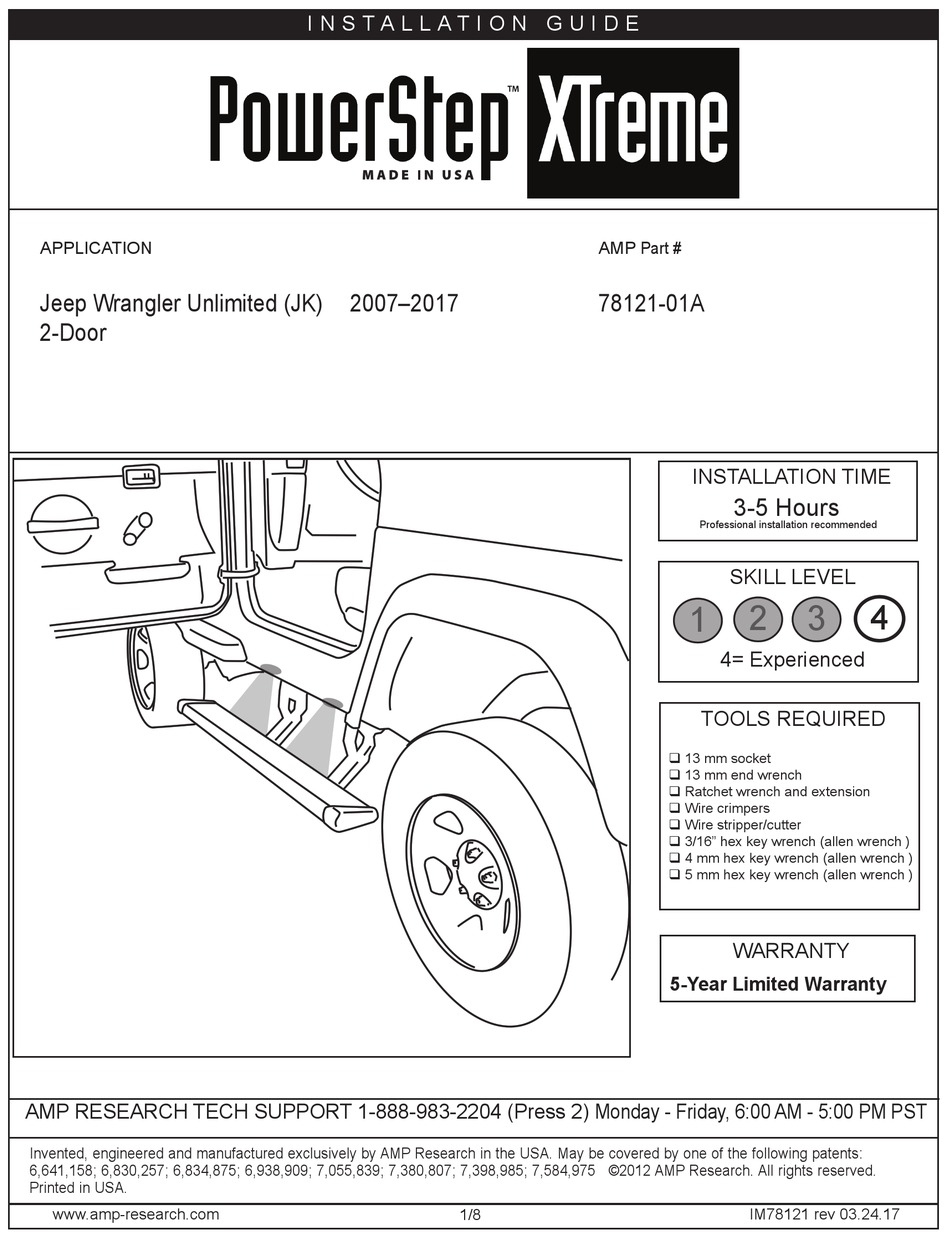

APPLICATION
Jeep Wrangler Unlimited (JK)
2-Door
AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST
Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents:
6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
Printed in USA.
www.amp-research.com
I N S T A L L A T I O N G U I D E
2007–2017
1/8
AMP Part #
78121-01A
INSTALLATION TIME
3-5 Hours
Professional installation recommended
SKILL LEVEL
2
1
4= Experienced
TOOLS REQUIRED
q 13 mm socket
q 13 mm end wrench
q Ratchet wrench and extension
q Wire crimpers
q Wire stripper/cutter
q 3/16" hex key wrench (allen wrench )
q 4 mm hex key wrench (allen wrench )
q 5 mm hex key wrench (allen wrench )
WARRANTY
5-Year Limited Warranty
IM78121 rev 03.24.17
4
3
Advertisement
Related Manuals for AMP Research PowerStep XTreme 78121-01A
Summary of Contents for AMP Research PowerStep XTreme 78121-01A
- Page 1 AMP RESEARCH TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 6:00 AM - 5:00 PM PST Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the following patents: 6,641,158; 6,830,257; 6,834,875; 6,938,909; 7,055,839; 7,380,807; 7,398,985; 7,584,975 ©2012 AMP Research. All rights reserved.
- Page 2 A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) PARTS LIST AND HARDWARE IDENTIFICATION End cap left (x1) End cap right (x1) T-nut insert (x2)
- Page 3 A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) PARTS LIST AND HARDWARE IDENTIFICATION Hex Flange Bolt...
- Page 4 A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) Slide motor assembly onto drive shaft and mounting bosses of driving linkage assembly. Use flathead socket head cap screws (14) on the inner location.
- Page 5 A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) Mount step extrusion to linkage assemblies. Line up Line up rear of step extrusion with rear fender well.
- Page 6 A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) Remove passenger side front door sill. Lift carpet.
- Page 7 A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) Insert plug from wire harness onto motors. Slide Insert plastic push pin rivets in mounting holes of rubber grommet on wire harness into slot of motor motor cover.
-
Page 8: Final System Check
A M P R E S E A R C H P O W E R S T E P – J E E P W R A N G L E R ( J K ) Check that all doors activate the Power Step and the LED Lights work when doors open and close. -
Page 9: Year Limited Warranty
5-YEAR LIMITED WARRANTY AMP RESEARCH warrants this product to be free from defects in material and workmanship for FIVE (5) YEARS FROM DATE OF PURCHASE, provided there has been normal use and proper maintenance. This warranty applies to the original purchaser only.
