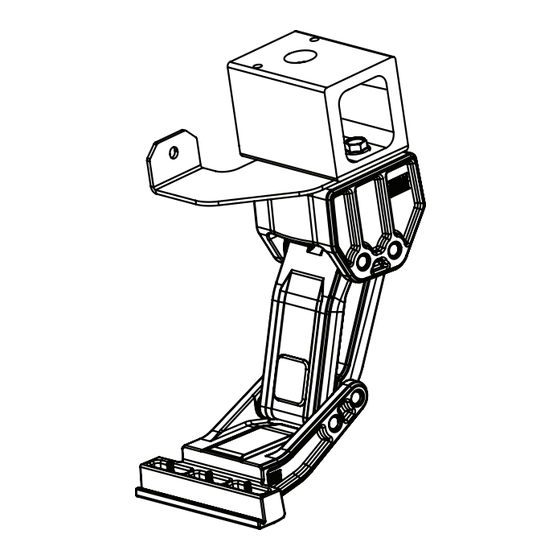

APPLICATION
Dodge Ram DR
Dodge Ram DR
(Includes Dually applications)
1
7
8
9
Driver-Side Orientation
1

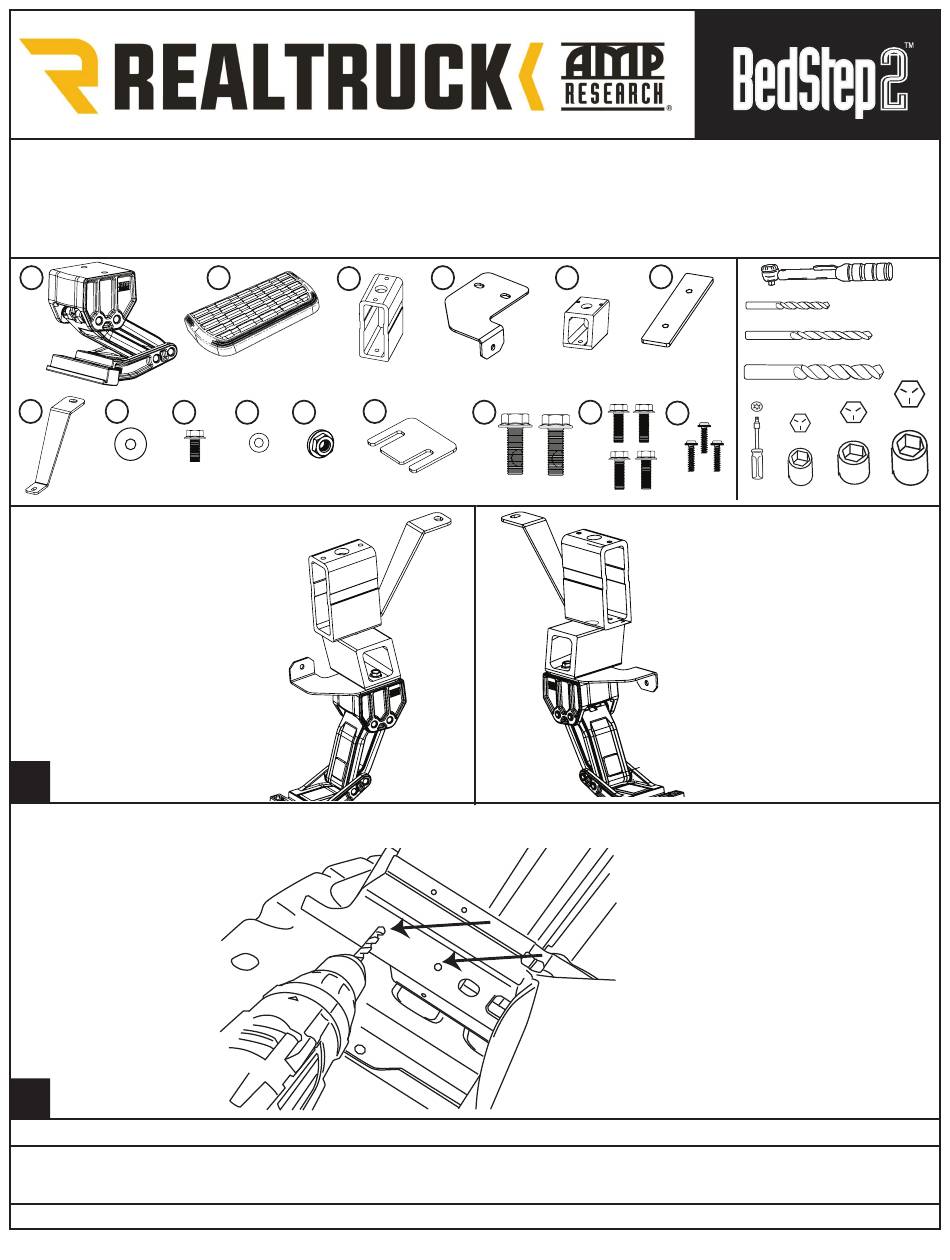

Use supplied drill template (See page 4) and mark holes in front bed channel mount. Pre drill holes using 1/4" drill bit.
Next drill hole to 7/16".
2
REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST
Designed and manufactured by AMP Research
Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/
© 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended.
www.realtruck.com
1500
2500/3500
2
3
12
10
11
(Mega Cab only)
• Made in Mexico
®
MODEL YEAR
2002-2008
2003-2009
4
5
13
14
1/4
PART NUMBER
75404-01A
75404-01A
6
1/4" Drill Bit
5/16" Drill Bit
7/16" Drill Bit
15
T25
13 mm 15 mm
Passenger-Side Orientation
Note: On passenger side Ground
strap may interfere with mounting
of frame mount
Relocation may
.
be required
IM75404 rev 04.04.24
Torque wrench
18 mm
Advertisement
Related Manuals for AMP Research BedStep 2 REALTRUCK 75404-01A
Summary of Contents for AMP Research BedStep 2 REALTRUCK 75404-01A
- Page 1 REALTRUCK TECH SUPPORT 1-888-983-2204 (Press 2) Monday - Friday, 8:00 AM - 5:00 PM EST Designed and manufactured by AMP Research • Made in Mexico ® Patent Protected. Please see our product site for applicable patents. www.realtruck.com/b/amp-research/ © 2024 AMP Research • Three-year limited warranty. • Professional installation is recommended. www.realtruck.com IM75404 rev 04.04.24...
- Page 2 Using a 15mm Socket assemble Lateral mount onto linkage. Steel bracket is to be assembled between linkage and lateral mount. Do not tighten bolts yet. Drivers side orientation show. Mirror for passenger side. Note: Mega Cab applications need provided spacer. Place spacer between linkage and steel bracket.
- Page 3 Slide Support bracket up to bed sheetmetal. Drill using the Use a 13mm socket and wrench to tighten the bolt using a 5/16 drill bit. fender washer. Torque to 16 ft-lbs. 13mm Use a 15mm socket to tighten the bolts that mount the Using a 13mm socket tighten two bolts holding Frame linkage to the lateral mount.
- Page 4 To deploy the step, press down using your foot on the outside edge of the step pad. DRILL TEMPLATE To retract, gently kick up on the underside of the step pad. Note: If linkage or step pad comes in contact with the body use provided washer.
- Page 5 AMERICAN DESIGNED & ENGINEERED Thank you for your recent Realtruck Purchase. REGISTER YOUR PRODUCT TODAY FOR FASTER SERVICE & PRODUCT UPDATES Please visit: https://realtruck.com/warranty-registration/ or scan the QR Code Product Registration Benefits: • Ensure we have your purchase receipt and product info in our system which is required for warranty.
- Page 6 ® Here’s what you should know... OPERATION The AMP Research BedStep is foot operated and deploys and retracts with a nudge of your foot. ® To deploy, press down using your left foot, on the forward outside corner of the step pad.
