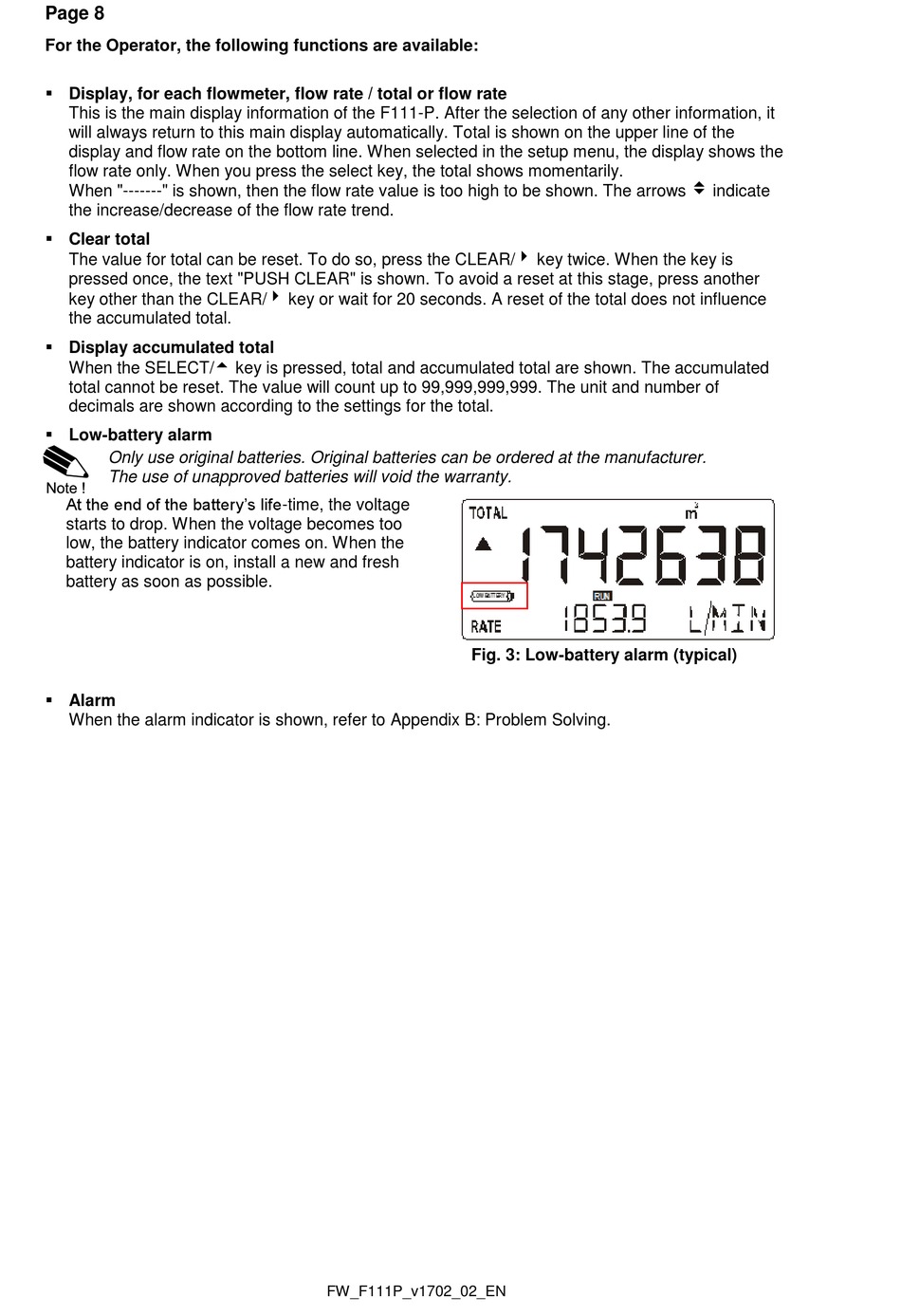

Page 8
For the Operator, the following functions are available:
 Display, for each flowmeter, flow rate / total or flow rate
This is the main display information of the F111-P. After the selection of any other information, it
will always return to this main display automatically. Total is shown on the upper line of the
display and flow rate on the bottom line. When selected in the setup menu, the display shows the
flow rate only. When you press the select key, the total shows momentarily.
When "-------" is shown, then the flow rate value is too high to be shown. The arrows  indicate
the increase/decrease of the flow rate trend.
 Clear total
The value for total can be reset. To do so, press the CLEAR/ key twice. When the key is
pressed once, the text "PUSH CLEAR" is shown. To avoid a reset at this stage, press another
key other than the CLEAR/ key or wait for 20 seconds. A reset of the total does not influence
the accumulated total.
 Display accumulated total
When the SELECT/ key is pressed, total and accumulated total are shown. The accumulated
total cannot be reset. The value will count up to 99,999,999,999. The unit and number of
decimals are shown according to the settings for the total.
 Low-battery alarm
Only use original batteries. Original batteries can be ordered at the manufacturer.
The use of unapproved batteries will void the warranty.
At the end of the battery's life-time, the voltage
starts to drop. When the voltage becomes too
low, the battery indicator comes on. When the
battery indicator is on, install a new and fresh
battery as soon as possible.
 Alarm
When the alarm indicator is shown, refer to Appendix B: Problem Solving.
Fig. 3: Low-battery alarm (typical)
