Page 18
130 mm (5.12")
HK back box:
(flat bottom)
HD
HK
HE
D=16mm
HF
D=22mm (0.866")
HC
31 mm
(1.22")
75 mm (2.95")
75 mm (2.95")
30mm 30mm
D=16mm
D=20mm
29.1 mm (1.15")

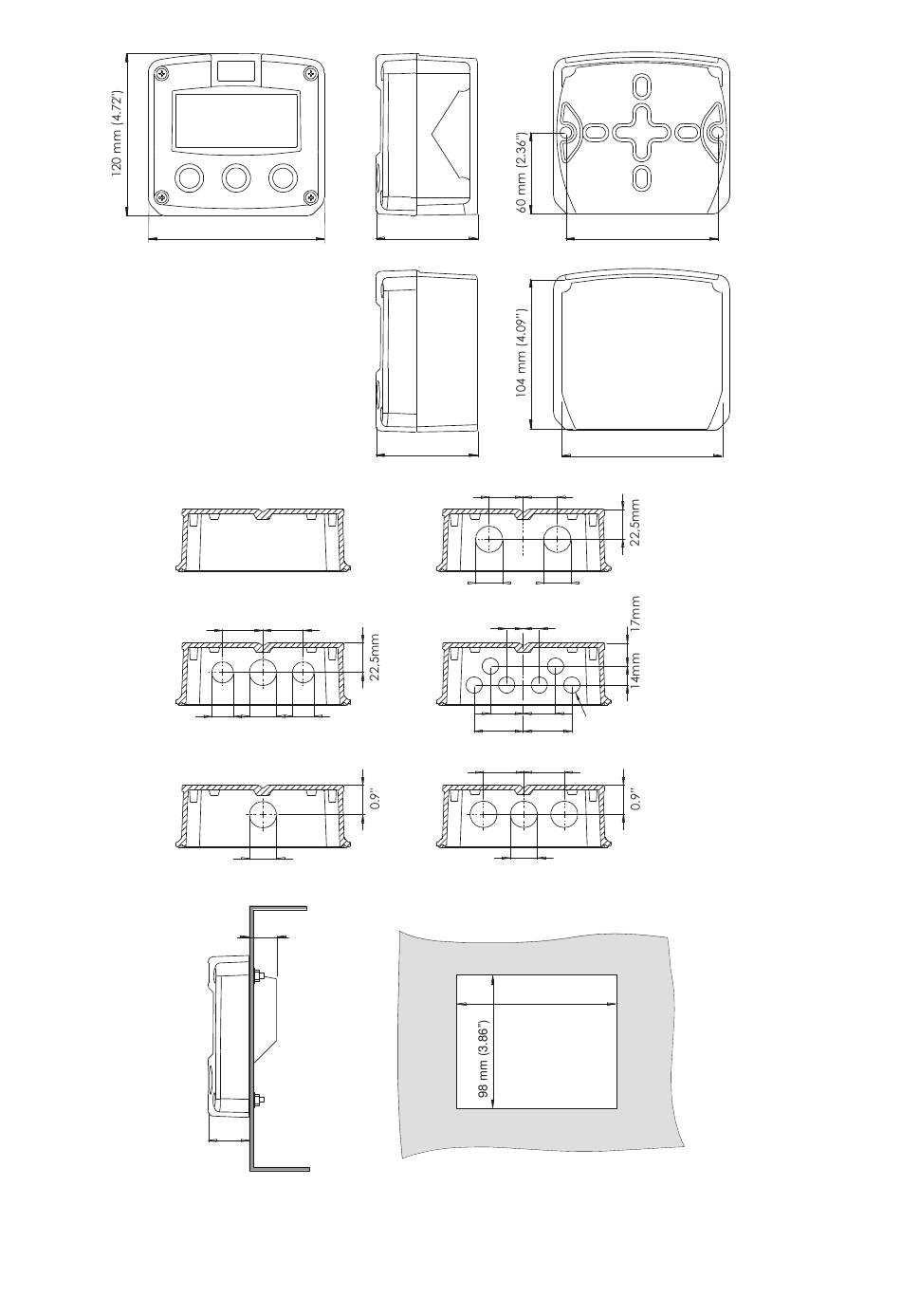

Fig. 5: GRP enclosures - Dimensions
FW_F111P_v1702_02_EN
112 mm (4.40")
118 mm (4.65")
25mm 25mm
D=20mm
D=20mm
12mm 12mm
24mm
24mm
D=12mm
36mm
36mm
0.12" 0.12"
3x D=22mm (0.866")
115 mm (4.53")
HG
HH
HJ
