HOWER

IMPORTANT

DreamLine

reserves the right to alter, modify or redesign products at any time without prior notice for the

purpose of product improvement and customer experience. Please refer to the model's web page on

DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional

product details.

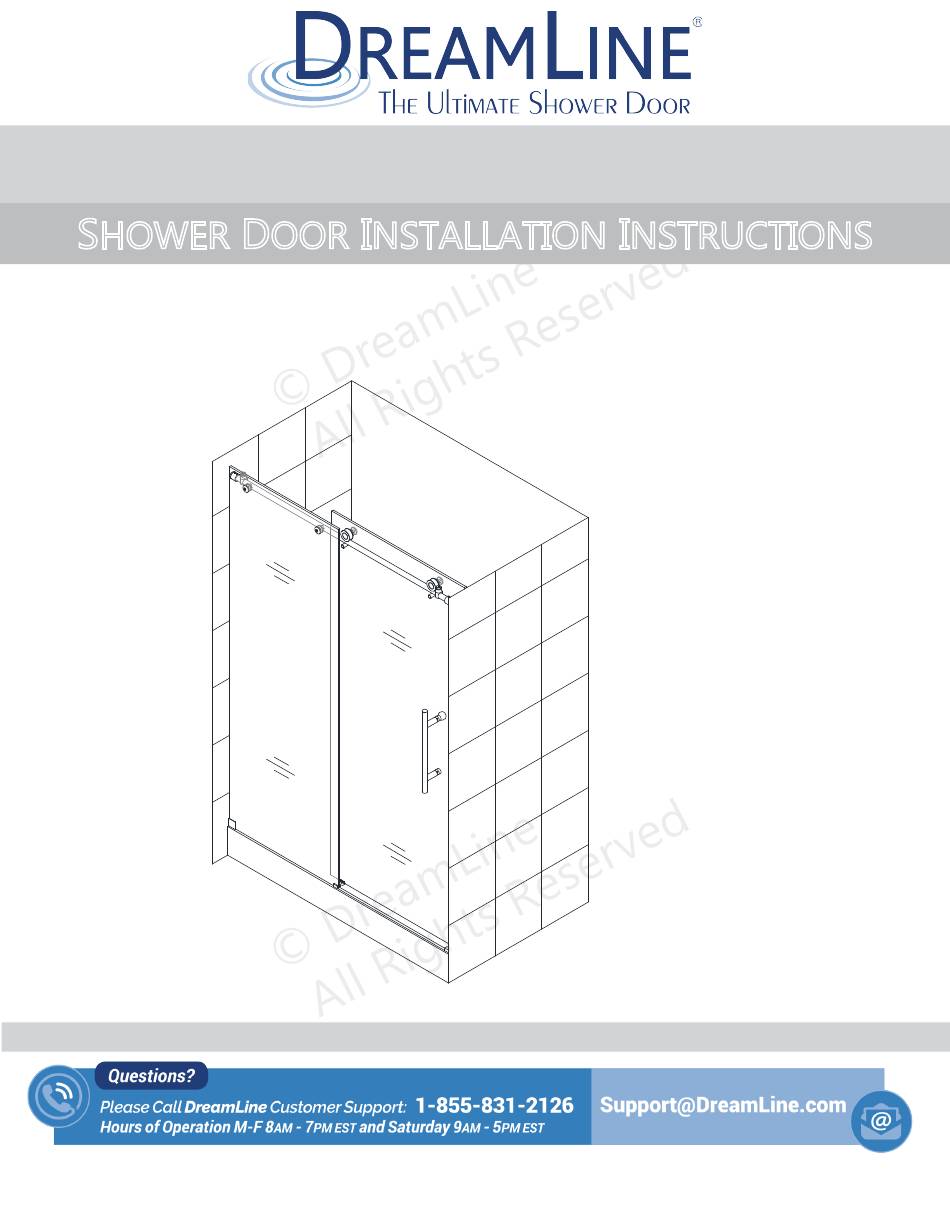

Right-hand door installation shown

PLEASE REVIEW THIS ENTIRE MANUAL PRIOR TO INSTALLATION

For more information about DreamLine

MYSTERIE shower door manual Ver 6 Rev 7 07/2018

MYSTERIE

OOR

NSTALLATION

Shower Doors & Tub Doors please visit DreamLine.com

NSTRUCTIONS

Model#s:

SHDR-61AMZ48-##

SHDR-61AMZ60-##

##=finish

07- Brushed Stainless Steel

08- Polished Stainless Steel

Table of Contents

Need help?

Do you have a question about the MYSTERIE SHDR-61AMZ48 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamline MYSTERIE SHDR-61AMZ48 Series

Page 1 ® purpose of product improvement and customer experience. Please refer to the model’s web page on DreamLine.com for the latest technical drawings, installation manuals, warranty information or additional product details. Model#s:...
Page 2 This model is treated with DreamLine’s exclusive ClearMax Glass technology. This is a specially formulated coating that prevents the build up of soap and water spots. Install the surface with the ClearMax label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.
Page 3: Table Of Contents
Table of Contents Page # Section title Important Model Information Reinforcement Instructions Preparation Tools Detailed Diagram ‘A’ of Shower Door Components Installation Steps 8-23 Guide Rail Bracket Adjustment Guide Block Installation Roller Wheel Adjustment Procedure 17 & 24 Roller Guards Vinyl Seals Door Stopper Installation Bumper Installation...
Page 4: Important Model Information
MANUAL FOR DETAILS REGARDING PROPER INSTALLATION. Roller Wheel Safety Set Screws must be retightened after installation. THE LATEST VERSION OF THE INSTALLATION Apply Thread lock. MANUAL IS AVAILABLE TO VIEW OR PRINT ON DREAMLINE.COM MYSTERIE shower door manual Ver 6 Rev 7 07/2018...
Page 5: Reinforcement Instructions
Reinforcement for MYSTERIE Heavy Glass frameless sliding shower door Install studs OR install 2”x 6” wood blocking between the studs where the Guide Rail Brackets will attach to the wall ” 2 ” S t u ” 2 ” measured from threshold* (see list below) o l d...
Page 6: Preparation
Components”. Examine boxes and packages for shipping damage. If the unit has been damaged, has a finishing defect, or is missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine will not replace any damaged products or ®...
Page 7: Tools
Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in ®...
Page 8: Detailed Diagram 'A'of Shower Door Components
Detailed Diagram ‘A’of Shower Door Components 9a/9b The glass surface with the ClearMax™ label must be installed to face inside of the shower for Model # SHDR-61AMZ48-07/08 SHDR-61AMZ60-07/08 DAMZ-61607610-07/08 Packing List A DESCRIPTION PART# DESCRIPTION PART# 2pcs Door stopper Guide block (with caps) Stationary glass Bumper strip ** 2pcs...
Page 9: Installation Steps
Installation steps Measure the distance between the two finished walls at the top, middle and bottom. Measure the width at the model height. This top measurement will be the “W” dimension used to cut the guide rail to the correct size for the finished opening.
Page 10 Attach the Upper Guide Rail (#03) to the Stationary Glass (#02) panel end stopper hole with the Glass Brackets (#07) and tighten the bolts into the holes in the Upper Guide Rail (#03). Make sure both adjustment disks are installed in the same direction with the high spot towards the door end.
Page 11 Once the Upper Guide Rail (#03) is level, mark the position of the Wall Bracket (#19) and Guide Rail Brackets (#08) on the wall. (Fig 9) inside Fig 9 Make sure that the Stationary Glass (#02) is parallel to the front edge of the threshold and mark it. Slide the Guide Block (#12) into the notch of the Stationary Glass (#02), and align flush with the edge (Fig 10).
Page 12 After marking the positions of all the hardware, set the Stationary Glass (#02) with the Upper Guide Rail (#03) aside. Remove the Guide Rail Brackets (#08) from the Upper Guide Rail (#03) and the Wall Bracket (#19) from the Stationary Glass (#02).
Page 13: Guide Block Installation
Fasten the Wall Bracket (#19) to the wall using the ST4.2×55 Truss Head Screw (#18). (Fig 13.1) Install the base parts of the Guide Rail Brackets (#08) onto both walls using the ST6×65 Large Truss Head Screw (#10). Note that the adjustment set screws must be aligned vertically for easier access to adjust for level if necessary after the glass is installed.
Page 14 NOTE: Before you install the Stationary Glass (#02), take the Door Glass (#05) into the shower area and lean it against the wall with the handle holes on the correct side. After the Stationary Glass (#02) is installed, it may not be possible to easily get the door glass into the shower.
Page 15: Guide Rail Bracket Adjustment
Re-position the Stationary Glass (#02) and Upper Guide Rail (#03) onto the threshold and fasten both sleeves of the Guide Rail Brackets (#08) to the brackets on the walls. Tighten the set screws on the Guide Rail Brackets (#08) to secure the Upper Guide Rail (#03).
Page 16 Measure the distance from the edge of the Guide Block (#12) to the wall. This distance will be “X”. Cut the Anti-Splash Guard (#15) to the size of: (X) + 3/8”. (Fig 15) X + 3/8” measure the distance ‘X’ from the guide block to the wall and add 3/8”...
Page 17 Secure the Anti-Splash Guard (#15) to the threshold with several pieces of painter’s tape to hold it in position and tight to the threshold until the silicone fully cures. (Fig 17) Fig 17 Attach the Guide block face plate to the installed Guide Block (#12) and tighten the set screw with the supplied allen wrench.
Page 18: Roller Wheel Adjustment Procedure 17
NOTE: DO NOT attach the handle to the door glass until instructed to do so. DO NOT attempt to lift the door glass with the handle as this may result in damage to the glass and/or serious personal injury. Attach the two Rollers (#04) to the Door Glass (#05) with the wheels facing the outside of the shower.
Page 19: Roller Guards
Attach the two Roller Guards (#29) onto the door to secure the door to the Upper Guide Rail (#03). Apply Thread Lock Adhesive (#26) to the bolts. Leave no more than a 1/16” gap between the Roller Guards (#29) and the Upper Guide Rail (#03). Tighten the bolt and screw on the cap. (Fig 22) TIP: Position the roller guard 1/16”...
Page 20: Vinyl Seals
Note: The Safety set screw on both wheels MUST BE re-tightened after installation to prevent the large bolt from coming loose. Apply thread lock during installation. (See details Fig 23 and also on Page 24) add threadlock to the safety set screw and wheel bolt Fig 23 Press the Anti-Water Strip (#14) onto the vertical edge...
Page 21: Door Stopper Installation
Position the Door Stoppers (#01) and screw them tightly to the Upper Guide Rail (#03). NOTE: The Door Stoppers (#01) must be positioned correctly to prevent the handle from contacting the wall Stationary Glass (#02) and to stop the Door Glass (#05) in a position that allows the bumper strip to create an even seal with the wall, but does not allow the door glass to bang into the wall during normal operation (Fig 24a 24b)
Page 22: Bumper Installation
Install the Bumper (#30) onto the threshold and against the wall on the stationary panel side of the installation. (For 72” model, this will be the side of the opening with the large stationary panel) Remove the 3M Tape and position the Bumper (#30) onto the threshold against the Wall Bracket (#19).
Page 23 To install the Bumper (#30) with the screw method, position the bumper (#30) onto the threshold and against the wall on the stationary panel side of the installation. (For 72” model, this will be the side of the opening with the large stationary panel). and mark the position of the hole onto the wall. Drill a 5/16”...
Page 24 Apply a good quality mildew-resistant silicone along the interior perimeter where the glass meets the wall and threshold and also along the Anti-Splash Guard (#15). (Fig 27) Allow 24 hours for the silicone to cure before using the shower. Hours Fig 27 Do Not hang or drape a towel or wash cloth over the guide rail as this may cause the roller wheels to get stuck and possibly cause serious...
Page 25 Roller adjustment procedure for: MYSTERIE To create a good seal with the wall and to achieve minimal clearance beneath the door glass without making contact with the bottom guide block or threshold. Have at least two 3/16” shims or wedge shims (to maintain space beneath the door glass) and an assistant available to help with this procedure.
Page 26: Product Maintenance
NOTE: To maximize the life of your door, it is important to regularly inspect the glass and other hardware for misalignment, proper attachment, and/or damage. Contact DreamLine with any questions or concerns. ®...
