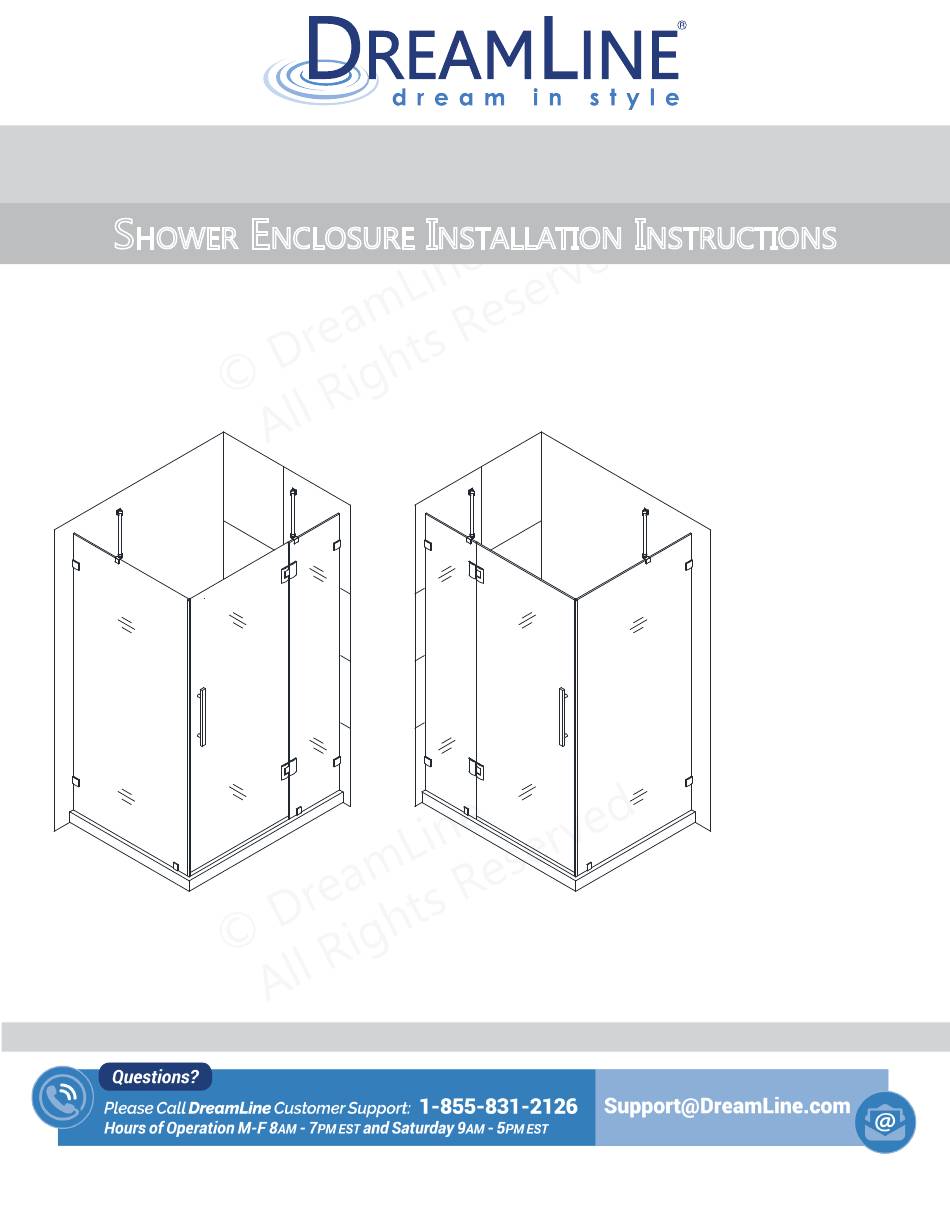

Dreamline SHEN-1332460 Series Installation Instructions Manual

Quatra lux shower enclosure

Advertisement

Quick Links

QUATRA LUX
S
HOWER
IMPORTANT
DreamLine
reserves the right to alter, modify or redesign products at any time without prior notice.
®
For the latest up-to-date technical drawings, manuals, warranty information or additional details please refer
to your model's web page on DreamLine.com
Left-hand return panel
For more information about DreamLine
QUATRA LUX 32x46 34x46 shower enclosure manual Ver 3 Rev 4a 112019
32" x 46" / 34" x 46"
E
I
NCLOSURE
Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com
®
NSTALLATION
Right-hand return panel
I
NSTRUCTIONS
MODEL #s
SHEN-1332460-##
SHEN-1334460-##
##=finish
01- Chrome
04- Brushed Nickel
06- Oil Rubbed Bronze
09- Satin Black
©2019 DreamLine. All Rights Reserved

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHEN-1332460 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamline SHEN-1332460 Series

  • Page 1 01- Chrome 04- Brushed Nickel 06- Oil Rubbed Bronze 09- Satin Black Shower Doors, Tub Doors & Enclosures, please visit DreamLine.com For more information about DreamLine ® QUATRA LUX 32x46 34x46 shower enclosure manual Ver 3 Rev 4a 112019 ©2019 DreamLine. All Rights Reserved...
  • Page 2: Table Of Contents

    This product should be installed by someone familiar with the construction requirements for this type of project and the care necessary for the safe installation and operation of the product. ©2019 DreamLine. All Rights Reserved QUATRA LUX 32x46 34x46 shower enclosure manual Ver 3 Rev 4a 112019...
  • Page 3 This model is treated with DreamLine’s exclusive ClearMax Glass technology. This is a specially formulated coating that prevents the build up of soap and water spots. Install the surface with the ClearMax label towards the inside of the shower. Please note that depending on the model, the glass may be coated on either one or both surfaces.
  • Page 4: Preparation

    “Detailed Diagram of Shower Door Components”. If the unit has been damaged, has a finishing defect, or has missing parts, please contact our customer support department within 3 business days of the delivery date. Please note that DreamLine will ®...
  • Page 5: Tools

    Before discarding the carton, check for small hardware bags that may have fallen to the bottom of the box. If any parts are damaged or missing, please contact DreamLine for replacement. The shipping boxes may contain extra parts not used in ®...
  • Page 6: Enclosure Diagram

    SHOWER ENCLOSURE PLAN (Outside dimensions of installed enclosures shown) dimensions: mm [in”] model with Right-hand return panel shown as an example 1177 [46 3/8] 560 [22] 600 [23 5/8] (Glass dimensions measured to inside surface of return panel glass) 1177 [46 3/8] 560 [22] 600 [23 5/8] (Glass dimensions measured to inside surface of return panel glass)
  • Page 7: Parts List

    Detailed Diagram of shower door components Quatra Lux with Support Bar MODEL #s SHEN-1332460-## SHEN-1334460-## with Hardware box: SHEN-AC1321-## The glass surface with the ClearMax™ label must be installed to face inside of the shower Parts List DESCRIPTION DESCRIPTION PART# PART# 2pcs Hinge Panel glass...
  • Page 8: Installation Steps

    Installation steps Assemble the Wall Brackets (#14) onto the Hinge Panel Glass (#01) and the Return Panel Glass (#03) using at least one gasket per side to protect the glass surface. NOTE that the top notch on the hinge panel glass is closer to the top of the glass and the Bottom bracket hole is at the bottom.
  • Page 9 The distance between the Hinge Panel Glass (#01) and the Return Panel Glass (#03) must be 23 7/8”. This is the required spacing for the Door Glass (#02). Adjust the position of the Return Panel Glass (#03) as necessary to maintain this 23 7/8” dimension. (Fig 3) 23-7/8”...
  • Page 10 Carefully place the Hinge Panel Glass (#01) and Return Panel Glass (#03) back into the designated position. Assemble the Wall Brackets (#14) and tighten the bolts. (Fig 5) Fig 5 QUATRA LUX 32x46 34x46 shower enclosure manual Ver 3 Rev 4a 112019...
  • Page 11: Support Bar Installation

    Installation Steps for Support Bar Locate the Support Bars (#04). Position the support bar brackets on the panel glass and the wall (at a 45° angle if possible) and level it horizontally. Hold the bracket firmly to the wall and outline the bracket’s position on the wall (Fig. 6.1). Remove the Support Bar (#04) and detach the wall bracket.
  • Page 12: Hinge Installation

    Attach the Hinges (#06) to the Hinge Panel Glass (#01) (with the bolts facing inside the shower). Use at least one gasket per side. Make sure that the hinges are flush to the edge of the glass and level. Carefully bring the Door Glass (#02) into the shower between the two stationary panels. Level up the Door Glass (#02) next to the Hinge Panel Glass (#01) and fasten the hinges onto the Door Glass (#02).
  • Page 13 Remove the shims after the door glass is secured to the hinges Fig 8c Attach the Handle (#05) to the Door Glass (#02). Trim the Bottom Sweep Vinyl (#13) to the width of the door glass and snap it onto the bottom of the Door Glass (#02).
  • Page 14 Measure the bottom of the Door Glass (#02) from end to end to determine the actual width. Using a razor knife, cut the Bottom Sweep Vinyl (#13) to the ewidth of the door glass. Optional: close the door and mark the sweep where it overlaps the strike vinyl; then notch approximately 3/8” off of the inner side of the Bottom Sweep Vinyl as shown in Fig.
  • Page 15 After final adjustment is complete, secure both lites of the Stationary Glass to the threshold. Assemble the Bottom Brackets (#15) onto the bottom of the Stationary Glass, using the gaskets to prevent glass to metal contact. *Drill the holes into the Shower base through the holes in the flange of the Bottom Brackets (#15) using an Ø1/8”...
  • Page 16: Adjustable Hinge Features

    QUATRA LUX 32x46 34x46 shower enclosure manual Ver 3 Rev 4a 112019...
  • Page 17: Vinyl Seals

    Contact DreamLine with any questions or concerns. ® DreamLine® shower doors and enclosures are designed not to leak when installed properly and the flow of water is not pointed directly at the hinges or vinyl seals. QUATRA LUX 32x46 34x46 shower enclosure manual Ver 3 Rev 4a 112019...
  • Page 18 TEL: 866-731-2244 FAX: 866-857-3638 DREAMLINE.COM For more information on DreamLine Shower Doors and Enclosures please visit DreamLine.com ® ©2019 DreamLine. All Rights Reserved...
