SEA GATE 2 DG R1 User Manual

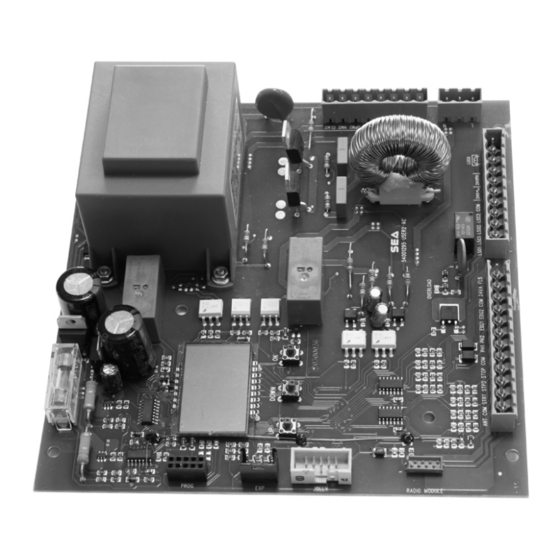

Electronic control unit for 1 or 2 230v/115v motors
Hide thumbs Also See for GATE 2 DG R1:
Table of Contents

Advertisement

Quick Links

Download this manual

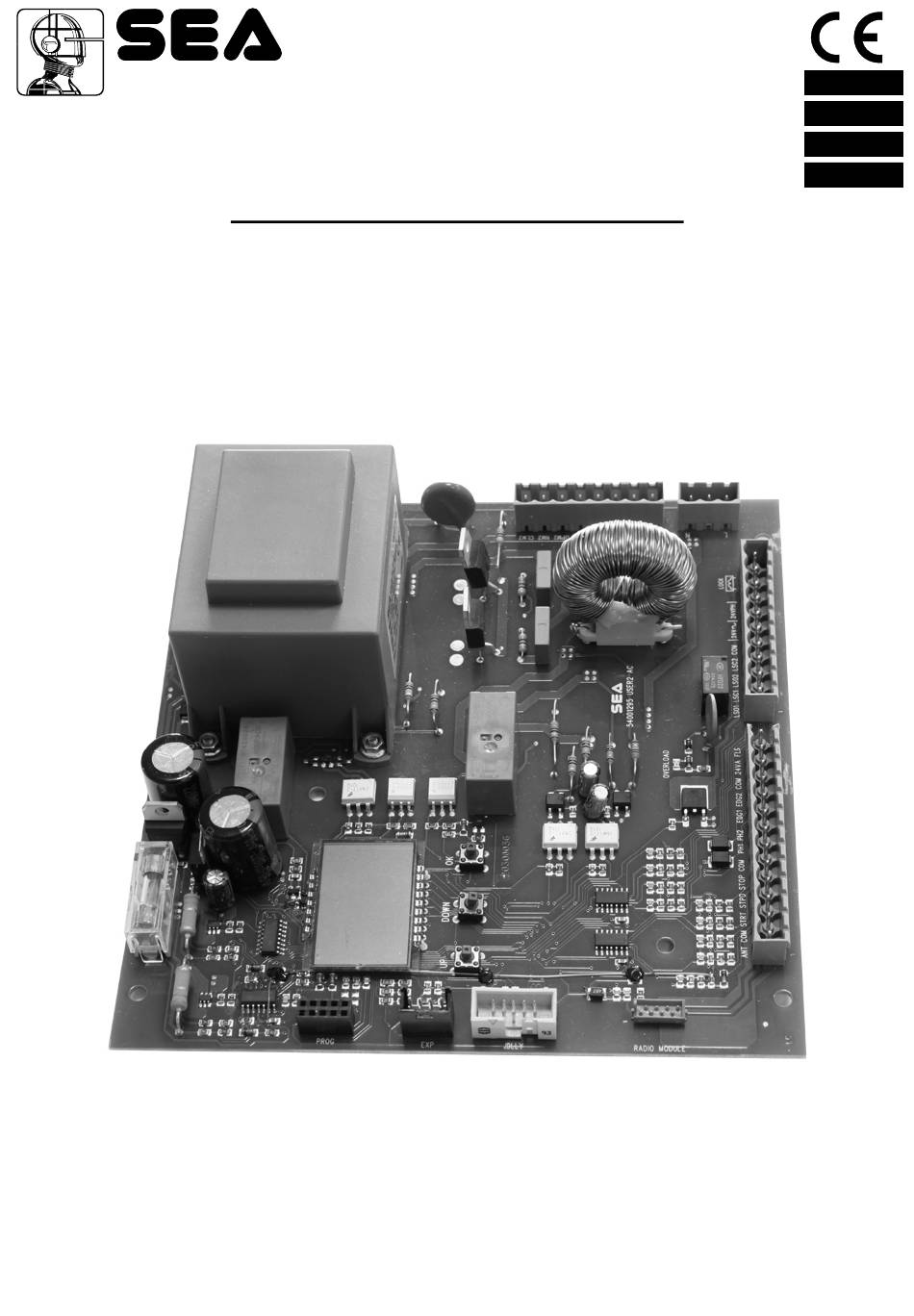

Sistemi Elettronici
di Apertura Porte e Cancelli
International registered trademark n. 804888
GATE 2 DG R1
CENTRALE ELETTRONICA PER 1 O 2 MOTORI A 230V/115V
ELECTRONIC CONTROL UNIT FOR 1 OR 2 230V/115V MOTORS
ARMOIRE DE COMMANDE POUR 1 OU 2 MOTEURS EN 230V/115V
CENTRAL ELECTRÓNICA PARA 1 O 2 MOTORES A 230V/115V
67411385
®
(Cod. 23023025)
SEA S.p.A.
Zona industriale 64020 S.ATTO Teramo - (ITALY)
Tel. +39 0861 588341 r.a. Fax +39 0861 588344
www.seateam.com
seacom@seateam.com
Rev.07 - 12/2014
Italiano
English
Français
Español

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GATE 2 DG R1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SEA GATE 2 DG R1

Summary of Contents for SEA GATE 2 DG R1

  • Page 1 International registered trademark n. 804888 English Français Español GATE 2 DG R1 (Cod. 23023025) CENTRALE ELETTRONICA PER 1 O 2 MOTORI A 230V/115V ELECTRONIC CONTROL UNIT FOR 1 OR 2 230V/115V MOTORS ARMOIRE DE COMMANDE POUR 1 OU 2 MOTEURS EN 230V/115V CENTRAL ELECTRÓNICA PARA 1 O 2 MOTORES A 230V/115V...
  • Page 2 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 COMPONENTS TECHNICAL SPECIFICATIONS Control unit power supply: 230 Vac 50/60 Hz - 115Vac 50/60 Hz Absorption in stand by: 30 mA Environment temperature : -20°C +50°C...
  • Page 3 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 CONNECTIONS 24 25 26 27 28 29 30 31 32 33 14 15 16 17 18 19 20 21 22 23 LSO1 LSC1 LSO2 LSC2 COM...

  • Page 4: Programming Buttons

    ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 PROGRAMMING QUICK START PROGRAMMING BUTTONS MENU MENU LANGUAGE ITALIANO DOWN Skip this step if you do not want to program a transmitter...
  • Page 5 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 MENU FUNCTIONS TABLE GATE 2 DG R1 Default Set value MENU Description tal ano Italian engl sk English 1 - langvage fran(a s...
  • Page 6 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 WORKING TIMES SELF LEARNING The control unit is pre-set with the default settings, to start the control unit with the DEFAULT settings just keep pressed the UP and DOWN buttons at the same time power supplying the control unit the display shows the message init.

  • Page 7: Function Logic

    ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 FUNCTION LOGIC AUTOMATIC LOGIC A start impulse opens the gate. A second impluse during the opening will not be accepted. A start impulse during closing reverses the movement.

  • Page 8: Special Menu

    PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU DOWN SPECIAL MENU FUNCTIONS TABLE GATE 2 DG R1 For entering into the special menu move on one of the menu and press the UP and DOWN buttons at the same time for 5 s.
  • Page 9 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Set value MENU SP Description Default In OFF disabled the 16 - EN(ODER * Encoder Indicates the working times selflearning 17 - opening ti e xxx.s...
  • Page 10 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Set value MENU SP Description Default N (y(le Courtesy light in cycle 27 - (ourtesy l gxt Courtesy light setting 1 240 from 1s to 4min.
  • Page 11 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Description Set value MENU SP Default Photocell active in closing (LOS NG Active in opening OPEN NG AND (LOS NG and closing...
  • Page 12 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Set value Description MENU SP Default Recovers the motor inertia 42 - opening POSiTiON 0 20 in opening after stop or RE(OUERY inversion.
  • Page 13 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Set value Description Default MENU SP Auto-test active only on photo1 Photo1 Auto-test active only on photo2 Photo2 54 - fototest Auto-test active on...
  • Page 14 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 Set value Description Default MENU SP Adjusts the threshold of the 65 - pot. threshold potentiometer intervention. opening 1 The parameter self- determines in learning but 66 - pot.
  • Page 15 If the password has been forgotten, the only way to unlock the control unit is to contact the SEA technical assistance, which will assess whether to provide the procedure to unlock the control unit or not.
  • Page 16 Photocell 1 Edge 1 Edge 2 Photocell 2 DOWN MENU FUNCTION TABLE CHECK GATE 2 DG R1 INPUTS To access the Menu for input check keep pressed OK for about 5 seconds. Description Description MENU The contact must be a N.O. Contact . When activating the related command start on the display SET lights up, the input works.
  • Page 17 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 RADIO TRANSMITTER SELF LEARNING WITH RECEIVER ON BOARD OF CONTROL UNIT WARNING: Make the radio transmitters programming before you connect the antenna and insert the receiver into the special CMR connector (if available) with turned off control unit.
  • Page 18 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 START - STOP - PEDESTRIAN START - ANTENNA - PHOTOCELL Photocell 1 and Photocell 2 Connections Note: If the photocells are not connected, it is not necessary put a jumper between the clamps...

  • Page 19: Courtesy Light

    ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SAFETY GATE OR AMPEROMETRIC MANAGEMENT AMPEROMETRIC DEVICE FOR ELECTROMECHANICAL OPERATORS This control unit comes with an obstacle detection system working only on electromechanical operators allowing to have the reversing on obstacles and the automatic detection of the stops.

  • Page 20: Power Supply Input

    ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 MOTORS CONNECTION, CAPACITY AND POWER SUPPLY 24 25 26 27 28 29 30 31 32 33 Cap M1 Cap M2 Motor 1...
  • Page 21 ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 LIMIT SWITCH, ELECTROLOCK CONNECTION Limit switch Does not need a jumper when not connected. For the limit switch function, limit switches must be installed, both in opening and closing.

  • Page 22: Alarm Description

    ® English GATE 2 DG R1 Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 ALARM DESCRIPTION Signals Kind of alarm Solutions Motors current Sure there are no short circuits on the motor or on the control...

  • Page 23: Troubleshooting

    Materials handling must be made with appropriate vehicles.. WARRANTY LIMITS For the guarantee see the sales conditions on the official SEA price list. SEA reserves the right to make any required modification or change to the products and/or to this manual without any advanced notice obligation. 67411385...
  • Page 24 The recognized defects, whatever their nature, shall not produce any responsibility and/or damage claim on the part of the Buyer against SEA. The guarantee is in no case recognized if changes are made to the goods, or in the case of improper use, or in the case of tampering or improper assembly, or if the label affixed by the manufacturer has been removed including the SEA registered trademark No.
  • Page 25 14. Transit through the leaves is allowed only when the gate is fully open. 15. The User must not attempt to repair or to take direct action on the system and must solely contact qualified SEA personnel or SEA service centers. User can apply only the manual function of emergency.
  • Page 26 3. Este producto fue diseñado y construido exclusivamente para el uso especificado en esta documentación. Cualquier otro uso no expresamente indicado puede afectar la integridad del producto y ser una fuente de peligro. El uso inadecuado es también causa de anulación de la garantía. SEA S.p.A. se exime de toda responsabilidad causadas por uso inapropiado o diferente de aquel para el que el sistema automatizado fue producido.
  • Page 27 La SEA S.p.A. dichiara sotto la propria responsabilità e, se applicabile, del suo rappresentante autorizzato che il prodotto: SEA S.p.A. declares under its proper responsability and, if applicable, under the responsability of its authorised representative that the product: Descrizione / Description...
  • Page 28 ® Sistemi Elettronici di Apertura Porte e Cancelli International registered trademark n. 804888 SEA S.p.A. Zona industriale 64020 S.ATTO Teramo - (ITALY) Tel. +39 0861 588341 r.a. Fax +39 0861 588344 www.seateam.com seacom@seateam.com...
