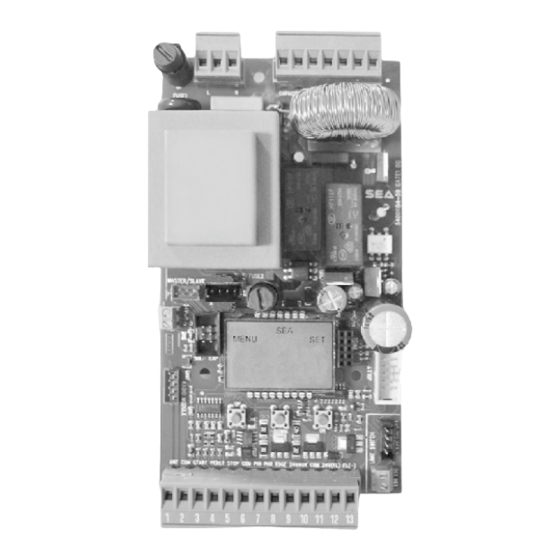

SEA GATE 1 DG R2BF Quick Start Manual
Control unit to manage 230v or 110v operators
Hide thumbs
Also See for GATE 1 DG R2BF:
- Manual (44 pages) ,
- Owner's manual (24 pages) ,
- Manual (44 pages)
Advertisement
Quick Links

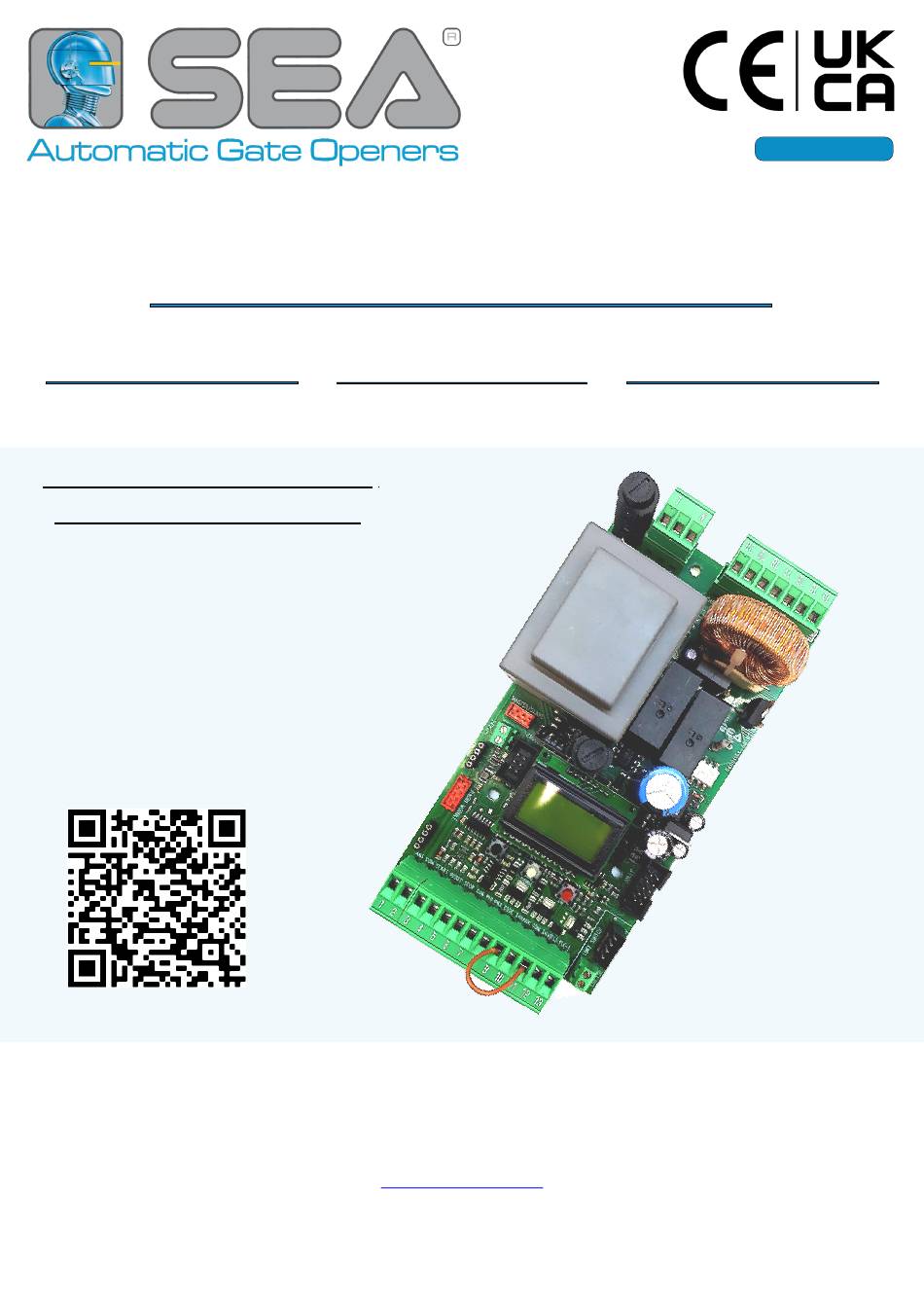

IT - EN - FR
International registered trademark n. 804888
QUICK START
GATE 1 DG R2BF
GATE 1 DG R2EF
GATE 1 DG R3BF
CONTROL UNIT TO MANAGE
230V or 110V OPERATORS
FULL MANUAL
(Rev. 16)
&
SAFETY
INFORMATION
SEA
S.p.A.
Zona Industriale Sant'Atto - 64100 - Teramo - ITALY
Telephone: + 39 0 861 588341
www.seateam.com
67412250
REV. 01 - 06/2023
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SEA GATE 1 DG R2BF
Summary of Contents for SEA GATE 1 DG R2BF
- Page 1 IT - EN - FR International registered trademark n. 804888 QUICK START GATE 1 DG R2BF GATE 1 DG R2EF GATE 1 DG R3BF CONTROL UNIT TO MANAGE 230V or 110V OPERATORS FULL MANUAL (Rev. 16) & SAFETY INFORMATION S.p.A.
- Page 2 ENGLISH Italiano International registered trademark n. 804888 INDEX 1 - COMPONENTS 2 - QUICK START SEQUENCE: WIRINGS « » B BASIC MENU SETTINGS C MOTOR OPERATION TEST (MENU 192) D ACTIVATION OF ENCODER POTENTIOMETER (IF INSTALLED) WORKING TIMES LEARNING « »...
-
Page 3: Programming Buttons
ENGLISH Italiano International registered trademark n. 804888 1 - COMPONENTS Make all the wirings when the control unit is not powered! Keep the power cables separate from the command cables - always run cables in separate sheaths to prevent interferences! JOLLY CLOUD ANT COM START STPD STOP COM PH1 PH2 EDGE1 24VAUX COM 24V(FL) FL(-) - Page 4 ENGLISH Italiano International registered trademark n. 804888 2 - QUICK START SEQUENCE A - B - C - D - E WIRINGS WIRING OF THE MAIN ACCESSORIES ON THE CONTROL UNIT Make all wirings when the unit is not powered! Do not jumper the N.C.
- Page 5 ENGLISH Italiano International registered trademark n. 804888 OPERATOR WIRINGS Wirings of the operator to the control unit MOTOR 1 (230V) XAMPLE = MCL - M1 CLOSING = MN - M1 NEUTRAL (BLUE) = MOP - M1 OPENING MCL MN MOP CAPACITOR 19 - 20 = CAPACITOR APACITOR...
- Page 6 ENGLISH Italiano International registered trademark n. 804888 BASIC MENU SETTINGS INPUT SOFTWARE OWER STATUS REVISION SECONDS 0 0 11111 0 03.08 ENGLISH LANGUAGE 11 0 0 0 0 0 0 XAMPLE When a type is set, the parameters of the special 2-SLIDING MOTOR menu automatically set to useful values for that type!
- Page 7 ENGLISH Italiano International registered trademark n. 804888 WORKING TIMES LEARNING SLIDING OPERATORS LEAF ON HALFWAY OWER OWER XAMPLE XAMPLE SOFTWARE REVISION 03.08 XAMPLE OF F LOCK UNLOCK INPUTS STATUS HOLD SECONDS 00111110 PRESSED THE LEARNING CYCLE STARTS: 11000000 5 SECONDS CLOSE - OPEN - CLOSE LIMIT SWITCH The limit switches are automatically detected...
- Page 8 ENGLISH Italiano International registered trademark n. 804888 POTENTIOMETER OWER OWER UNLOCK LEAF ON HALFWAY LOCK SOFTWARE INPUTS REVISION STATUS XAMPLE XAMPLE XAMPLE SECONDS 03.08 00111110 11000000 OF F THE LEARNING CYCLE STARTS: CLOSE OPEN CLOSE OPEN WITH SLOWDOWN PROGRAMMING LANGUAGE CLOSE WITH SLOWDOWN REVERSE If the learning cycle starts in opening, reverse the motors rotation and repeat the procedure...
- Page 9 GATE 1 DG (R2BF) - (R2EF) - (R3BF) MENU FUNCTIONS TABLE THE DESCRIBED FUNCTIONS ARE VALID FOR ALL GATE 1 DG VERSIONS, EXCEPT WHERE EXPRESSLY STATED MENU DESCRIPTION DEFAULT NOTES Italiano Italian English English Français French 1 LANGUAGE English Español Spanish Dutch Dutch...
- Page 10 MENU DESCRIPTION DEFAULT NOTES To reverse the opening with the closing and vice-versa (both motors and limit-switches are reversed) 5 REVERSE MOTOR Automatic Automatic logic - automatic reclosing enabled Step by step type 1 Open-stop-close-stop-open Open-stop-close-open Step by step type 2 Auto- 6 LOGIC matic...
-
Page 11: Special Menu
SPECIAL MENU PRESS AT THE SAME TIME FOR 5 SECONDS TO ENTER OR TO EXIT THE SPECIAL MENU THE DESCRIBED FUNCTIONS ARE VALID FOR ALL GATE 1 DG VERSIONS, EXCEPT WHERE EXPRESSLY STATED SPECIAL MENU DESCRIPTION DEFAULT NOTES To adjust the working times learning speed. 25 LEARNING SPEED 100 % The menu is shown only if the 3-MOTOR menu is set to... - Page 12 SPECIAL MENU DESCRIPTION DEFAULT NOTES 10% (Fast intervention) To adjust the amperometric sensitivity in slowdown 99% (Slow intervention) Function available only on electro-mechanic operators SLOWDOWN SENSITIVITY Disabled - Mandatory setting for version R2EF (Intervention excluded) Mandatory setting to To set the inversion time in slow-down from 0 to 5 OFF for version R2EF With potentiometer seconds (= 99%) - available only if the potentiometer or...
- Page 13 SPECIAL MENU DESCRIPTION DEFAULT NOTES Time Before opening, the motor starts in closing for the time Pushing Off - 3 sec set, in order to simplify the lock release Stroke 76 PUSHING STROKE Repeat If ON, the lock will be released both before and after the Lock Off –...
- Page 14 SPECIAL MENU DESCRIPTION DEFAULT NOTES The pause in partial opening is the same as in total = Start opening 91 PARTIAL PAUSE = Start Disabled Adjustable from 1 second to 4 minutes The selected input will be turned into an input (on CN1) to 92 TIMER On Photocell 2 which connect an external clock...
- Page 15 SPECIAL MENU DESCRIPTION DEFAULT NOTES Photocell 1 Self-test enabled only on photocell 1 Photocell 2 Self-test enabled only on photocell 2 Photocells 1 and 2 Self-test enabled on photocells 1 and 2 Disabled Safety Edge 1 Self-test enabled only on safety edge 95 PHOTO-TEST Photocell 1 Self-test enabled on photocell 1 and safety edge...
- Page 16 SPECIAL MENU DESCRIPTION DEFAULT NOTES If the photocell is occupied during closing, the gate Closing reverses the movement; If the photocell is occupied during the pause, it prevents the gate reclosing If the photocell is occupied during opening or closing, it Opening and closing stops the gate movement;...
- Page 17 SPECIAL MENU DESCRIPTION DEFAULT NOTES Normal Standard safety edge - N.C. contact Safety edge protected by a 8K2 resistor enabled SAFETY EDGE 1 Menu available on 8K2 Double Two safety edges protected by a 8K2 resistor enabled models R2BF and R2EF only Photo 1 10K Photocell protected by a 10K resistor enabled...
- Page 18 SPECIAL MENU DESCRIPTION DEFAULT NOTES LOWER To adjust the temperature threshold to enable the oil TEMPERATURE From -20° to +50° heater (This menu is shown only if the menu 109- -10° THRESHOLD Thermometer is set to ON) To adjust the temperature threshold to disable the oil UPPER TEMPERATURE From -20°...
- Page 19 International registered trademark n. 804888 NOTES...
- Page 20 International registered trademark n. 804888 SEA S.p.A. Zona Industriale Sant’Atto - 64100 - Teramo - ITALY Tel. +39 0 861 588341 r.a. www.seateam.com...
