SEA GATE 2 Manual

24v plus electronic control unit for swing operators 24 v d.c.
Hide thumbs Also See for GATE 2:
Table of Contents

Advertisement

Quick Links

Automazione
Porte e Cancelli
English
GATE 2 - 24V PLUS
Deutsch
23001135
ELECTRONIC CONTROL UNIT FOR SWING OPERATORS 24 V D.C.
SEA (UK) Limited
Unit 6A Olton Wharf, Solihull B92 7RN
Tel. 0121 706 9629 - Fax 0121 764 56034
London Tel. 0208 360 8022
www.seaukltd.co.uk
e-mail: sales@seaukltd.co.uk
67410192
REV 04 - 11/2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GATE 2 and is the answer not in the manual?

Questions and answers

Related Manuals for SEA GATE 2

Summary of Contents for SEA GATE 2

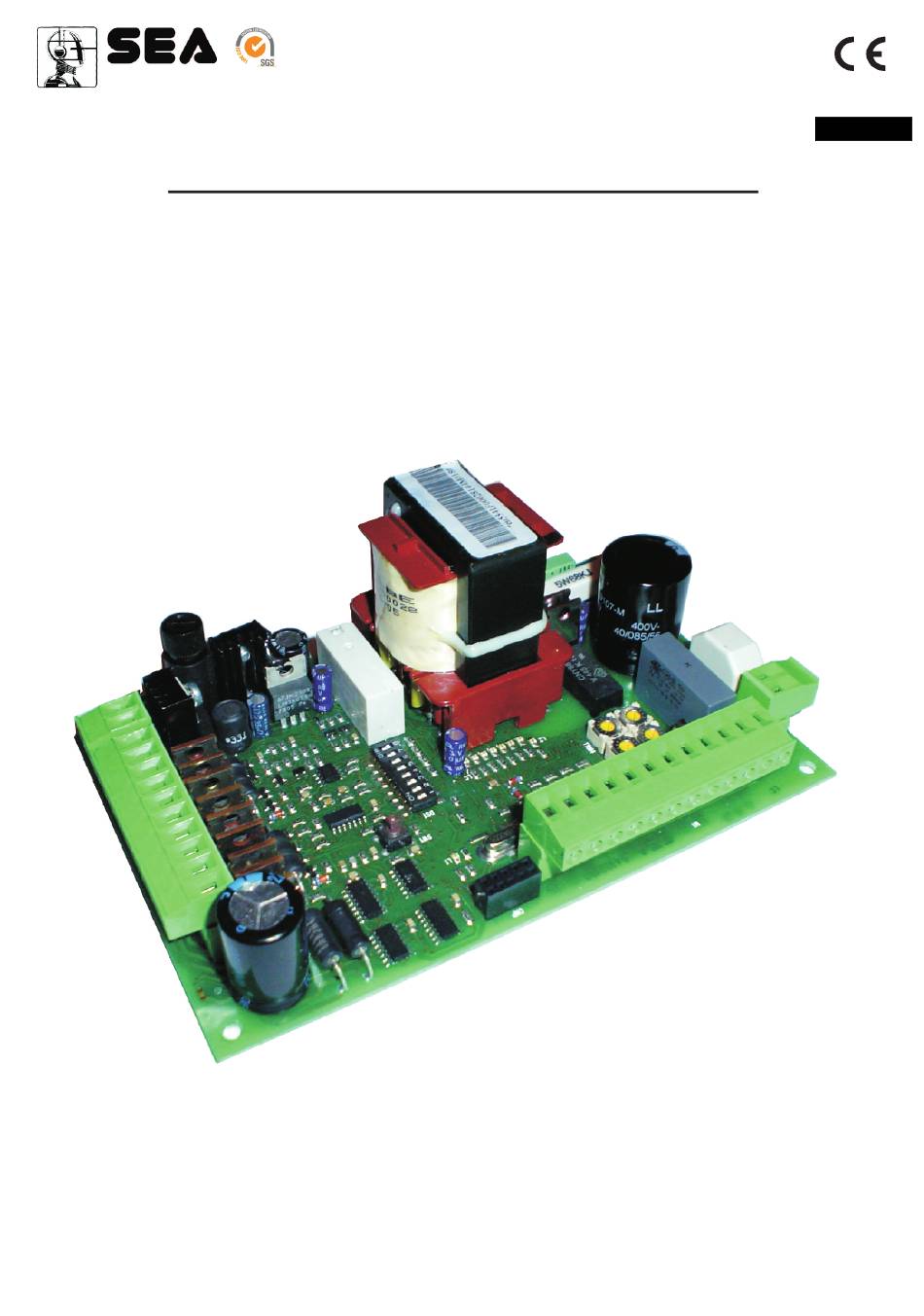

  • Page 1 Automazione Porte e Cancelli English GATE 2 - 24V PLUS Deutsch 23001135 ELECTRONIC CONTROL UNIT FOR SWING OPERATORS 24 V D.C. SEA (UK) Limited Unit 6A Olton Wharf, Solihull B92 7RN Tel. 0121 706 9629 - Fax 0121 764 56034 London Tel.
  • Page 2 GATE 2 - 24V PLUS Automazione Porte e Cancelli CONNECTIONS 1 2 3 4 5 6 7 8 9 10 1112 1 2 3 4 5 6 7 8 9 24 Vdc Accessoires REV 04 - 11/2006...
  • Page 3 GATE 2 - 24V PLUS Automazione Porte e Cancelli DESCRIPTION OF THE COMPONENTS LED10 LED2 LED1 LED1 = Programming Tx/selflearning / LED2 = Photocell / LED3 = Start / LED4 = Stop / LED5 = Start pedestrian / LED6 = Limit switch...

  • Page 4: Table Of Contents

    GATE 2 - 24V PLUS English Automazione Porte e Cancelli INDEX GENERAL INFORMATION ......................5 START, STOP, PEDESTRIAN START, ANTENNA CONNECTIONS ..........6 PHOTOCELLS, LIMIT SWITCH CONNECTIONS ................7 ELECTRIC LOCK, FLASHING LAMP, RECEIVER CONNECTIONS ..........8 POWER SUPPLY AND MOTORS ARM - ALPHA - BETA CONNECTIONS........9 RADIO TRANSMITTER TYPE SETTING (DIP-SWITCH)............10...

  • Page 5: General Information

    Porte e Cancelli GENERAL INFORMATION GENERAL CHARACTERISTICS The GATE 2 24V control unit has been designed to manage one or two low voltage swing gate operators with or without electronic limit switches. Its dimensions are very sma ll and as well as the classic functions refered to by the dip-switch it has several other features such as motor speed adjustment, amperometric sensitivity for anti crush, adjustment of leaf delay in closing and alteration of pause time .

  • Page 6: Start, Stop, Pedestrian Start, Antenna Connections

    GATE 2 - 24V PLUS Automazione Porte e Cancelli START - STOP - PEDESTRIAN START - ANTENNA 1 2 3 4 5 6 7 8 9 10 11 12 ANTENNA Connect the antenna as in the picture. PEDESTRIAN START (N.O.) To obtain partial opening (only one leaf opening) connect the key- switch wires as in the picture.

  • Page 7: Photocells, Limit Switch Connections

    GATE 2 - 24V PLUS Automazione Porte e Cancelli PHOTOCELLS/LIMIT SWITCH 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 Photocell self-testing Photocells 1 Connection When the photocells beam is crossed, the automation reverses its movement if in closing phase.

  • Page 8: Electric Lock, Flashing Lamp, Receiver Connections

    GATE 2 - 24V PLUS Automazione Porte e Cancelli ELECTRIC LOCK/FLASHING LAMP/ RECEIVER 1 2 3 4 5 6 7 8 9 10 Electric lock exit An electric lock of 12Vdc 15W max can be connected . The electric lock activates at every opening cycle for about 1,5 sec.

  • Page 9: Power Supply And Motors Arm - Alpha - Beta Connections

    GATE 2 - 24V PLUS Automazione Porte e Cancelli POWER SUPPLY - MOTORS ARM-ALPHA-BETA 1 2 3 4 5 6 7 8 9 10 3 4 5 6 7 8 9 10 11 12 ALPHA PLUS ALPHA STD Motor 2...

  • Page 10: Radio Transmitter Type Setting (Dip-Switch)

    GATE 2 - 24V PLUS Automazione Porte e Cancelli DIP-SWITCH (TYPE OF RADIO TRANSMITTER) 1 2 3 4 5 6 7 8 POSITION SETTING DIP1 AND DIP2 ACCORDING TO THE TYP OF RADIO TRANSMITTER USED 1 / 2 OFF / OFF...

  • Page 11: Function Logic Setting (Dip Switch)

    GATE 2 - 24V PLUS Automazione Porte e Cancelli DIP-SWITCH (FUNCTION LOGIC) 1 2 3 4 5 6 7 8 MANUAL LOGIC A start impulse opens the gate. A second impulse during opening stops the movement. A start impulse during closing stops the movement.

  • Page 12: Sensitivity Regulation Of Amperometric Sensor

    GATE 2 - 24V PLUS Automazione Porte e Cancelli TRIMMER ADJUSTMENT NOTE: TURNE THE I TRIMMER CLOCKWISE TIMES / VALUES INCREASE SENSITIVITY ADJUSTMENT OF THE AMMETRIC SENSOR (anti crush) This adjustment must be made so to avoid the danger of crushing persons or objects and must respect the laws in force.

  • Page 13: Selflearning Working Times

    GATE 2 - 24V PLUS Automazione Porte e Cancelli WORKING TIMES SELF LEARNING Check that each accessory (photocells, push buttons, and so on) work properly and Fig. 1 adjust the leaf delay if necessary. OF F Disconnect the power supply (Fig. 1), release the motors (Fig. 2-3) and put the leaves manually near the stop in closing (Fig.

  • Page 14: Radio Transmitter Selflearning

    GATE 2 - 24V PLUS Automazione Porte e Cancelli RADIO TRANSMITTER SELF LEARNING WARNING: make the radio transmitters programming before you connect the antenna. 1. Push and release P1 button, theLED 1 will flash in order to signal waiting for a code to be associated to the total opening.

  • Page 15: Trouble Shooting

    GATE 2 - 24V PLUS Automazione Porte e Cancelli TROUBLE SHOOTING Advises Make sure all Safety LED’s are turned ON All not-used N.C. contacts must have jumpers Problem Found Possibile Cause Solution a) Check connections or links a) Links missing on one of the on contacts 2/10 on the CN2, N.C.

  • Page 16: Instructions And Guarantee

    REPLACEMENTS Any request for spare parts must be sent to: SEA s.r.l. - Zona Ind.le, 64020 S.ATTO - Teramo - Italia or SEA UK Limited Tel : 0121 706 9629 PRODUCT USAGE The electronic equipment 23001135 has been designed to be used exclusively as management equipment for sliding gates automation, swing gates, sectional doors, overhead doors, barriers.
