2. Select DMX MODE and press ENTER.
3. Use the UP and DOWN buttons to select 1, 2 or 4.
4. Press ENTER to confirm your selection (or to return to the top level menu without changing the
settings, press the MENU button).

Other fixture settings

The PERSONALITY menu allows you to set other options for the fixture.
Stand-alone mode
The fixture can operate in stand alone mode allowing control of multiple fixtures from a single
master fixture if no DMX console is connected. The options are MASTER and SLAVE (default).
Stand alone operation will be automatically overridden by incoming DMX signal.
Dimming curves

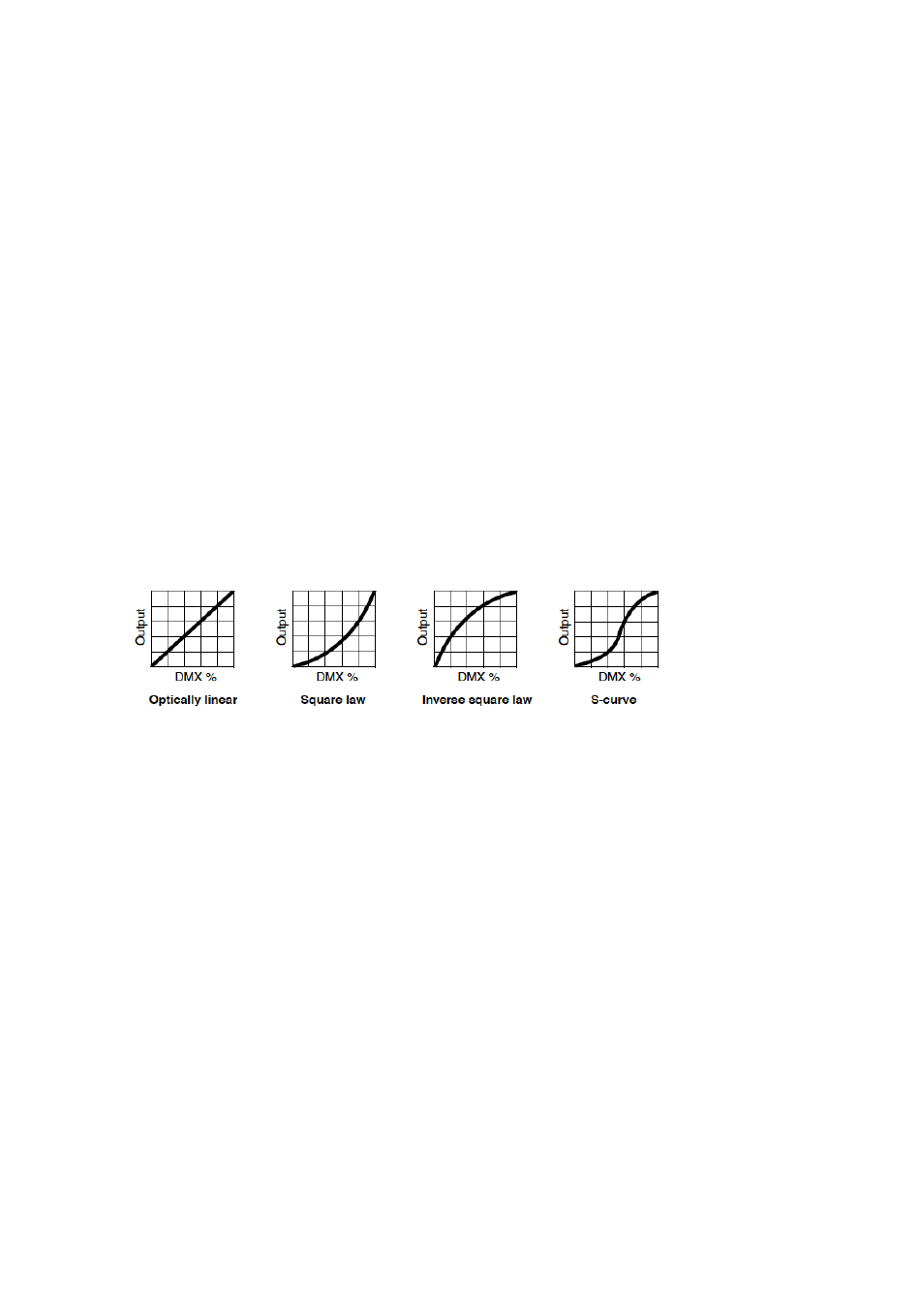

Four dimming modes are available:
LINEAR The increase in light intensity appears to be linear as DMX value
is increased.
SQUARE light intensity control is finer at low levels and coarser at high
LAW levels.
INV SQ (Inverse square law) light intensity control is coarser at low levels
LAW and finer at high levels.
S- light intensity control is finer at low levels and high levels and
CURVE coarser at medium levels.
To set the fixture's dimmer curve, select DIMMER CURVE from the PERSONALITY menu and
press ENTER to confirm. Use the UP and DOWN buttons to select the desired mode. Press
ENTER to save your selection.
PWM Frequency
Sets the frequency of the PWM dimming used on the fixture. It can sometimes be necessary to
change this if flickering is seen on TV cameras running at a high shutter speed.
The setting is 600Hz to 1200Hz, the default is 1200Hz.
No Data Mode
This option sets what will happen when DMX data is not present.
To set No Data Mode, select NO DATA MODE from the PERSONALITY menu and press ENTER
to confirm. Use the UP and DOWN buttons to select:
BLACKOUT – If data connection is lost, fixture will blackout
HOLD – If data connection is lost, fixture holds latest received data value at all channels (default)
Press ENTER to confirm.
Cooling Mode
This option sets whether the cooling fans run at full speed all the time, or will be controlled by
fixture output power.
To set cooling mode, select COOLING MODE from the PERSONALITY menu and press ENTER
to confirm. Use the UP and DOWN buttons to select:
REG FAN – Fan speed will be controlled by heat demand in the fixture.
FULL – Fans set to full constant speed.
LOW – Fans set to constant low speed
Martin ELP WW Profile user guide 17
