G-WIN Military Panel PC Intel® Celeron® N2930, 1.83 GHz R08IB3S-MLU1 Model No.: R10IB3S-MLT2 R15IB3S-MLC3HB User Manual Document Version 1.1 Document Part Number: 91521110102Z Please read these instructions carefully before using this product, and save this manual for future use.
About This User Manual Contents Preface ..........................4 About This User Manual ..................... 9 Chapter 1: Introduction ....................10 1.1 Introduction ......................11 1.2 Product Features ....................11 1.3 Package Contents ....................11 1.4 Mechanical Concept ................... 12 1.5 Physical Appearance ..................13 1.6 Connector Description ..................
Page 3
About This User Manual Chapter 5: Troubleshooting ..................... 39 5.1 Using USB-HDD or USB-CDROM for Booting OS ..........40 5.2 Using Recovery Wizard to Restore Computer ............ 41 Chapter 6: Technical Support ..................42 6.1 Software Developer Support ................43 6.2 Problem Report Form ..................
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer.
Page 5
About This User Manual Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
Page 6
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Safety Information Warning!/ Avertissement! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
Page 7
About This User Manual Let service personnel to check the equipment in case any of the following problems appear: o The power cord or plug is damaged. o Liquid has penetrated into the equipment. o The equipment has been exposed to moisture. o The equipment does not work well or you cannot get it to work according to the user manual.
Page 8
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. ...
About This User Manual About This User Manual This User Manual provides information about using the Winmate® G-WIN Military Panel PC. This User Manual applies to G-WIN Military Panel – R08IB3S-MLU1, R10IB3S-MLT2 and R15IB3S-MLC3HB. The documentation set for the G-WIN Military Panel PC with Freescale® Cortex® A9 i.MX6 Dual Core provides information for specific user needs, and includes: ...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Chapter 1: Introduction This chapter gives you product overview, describes features and hardware specification. You will find all accessories that come with the panel PC in the packing list. Mechanical dimensions and drawings included in this chapter.

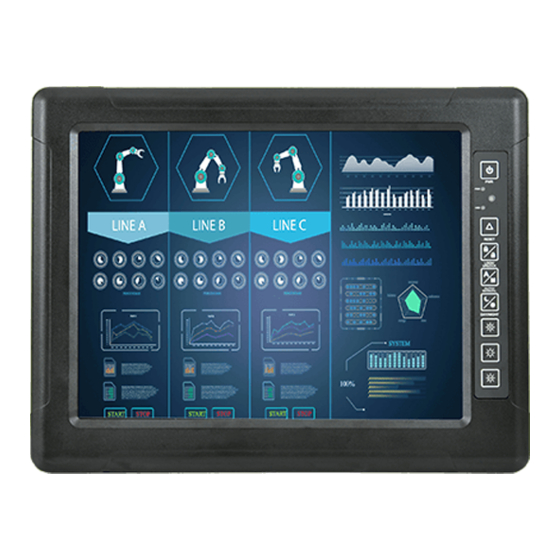

Chapter 1: Introduction 1.1 Introduction Congratulations on purchasing Winmate® G-WIN Military Panel PC. Winmate® G-WIN Military Panel PC comes with fanless, low power but high performance platform design, sunlight readable panel, WLAN integration, great ability for anti-shock & vibration, IP65 protection and anti- corrosion coating with aluminum alloy housing.
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 1.4 Mechanical Concept On the picture below you can see spare parts exploded drawing of a standard G-WIN Military Panel PC.
Chapter 1: Introduction 1.5 Physical Appearance G-WIN Panel PC comes with various interfaces located on the bottom panel. The I/O placement varies by processor and screen size of the Panel PC. R08IB3S-VMU1 G-WIN Panel PC 10.4” R10IB3S-VMT2, R10IB3S-VMP3, R10IB3S-VMP1...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual G-WIN Panel PC 15” R15IB3S-VMA3(HB) 1.6 Connector Description G-WIN Military Panel PC connectors are located on the bottom side. Item Description Power – Military grade lockable power connector. RS-232/422/485 – Serial interface connector controls/monitors devices and offers in addition digital inputs/outputs.
Chapter 1: Introduction 1.7 Physical Buttons On-Screen Display (OSD) is a user-friendly interface to remote the display function and to adjust the display’s image properties. It also supports special Hot Keys for easy control, such as auto- adjustment and brightness control for backlight. G-WIN Panel PC 8.4”, 10.4”...
Page 16
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual G-WIN Panel PC 15” Icon Button Function Power Turn ON or turn OFF the Panel PC. Clear any pending errors or events and brings a system to Reset normal condition or an initial state. Lock / Unlock Tap this button to lock / unlock the function of OSD panel.
Chapter 1: Introduction 1.8 LED Indicators LED indicators are located on the OSD panel on the back side of G-WIN Military Panel PC. Indicator Color Definition Green Power is ON and the device functions normally Orange Panel PC is suspended Green HDD is active HDD is inactive...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Chapter 2: Getting Started This chapter tells you important information on power supply, adapter and precautions tips. Pay attention to power considerations.
Chapter 2: Getting Started 2.1 Connecting the Power Safety Precautions: Do not use the adapter in a high moisture environment Never touch the adapter with wet hands or foot Allow adequate ventilation around adapter while using Do not cover the adapter with paper or other objects that will reduce cooling ...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 2.2 Turning On and Off To turn on the Panel PC: 1. Press the power on switch to turn the Panel PC on. 2. Press “DEL” to enter the CMOS setting and check the BIOS setup. To shut down the Panel PC: To shut down your device, do the following: Tap Start ( ) >...
Chapter 2: Getting Started 2.4 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center. To enable watchdog in Watchdog AP follow the instructions below: 1.
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 2.5 Connectors 2.5.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: • Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point.
Page 23
Chapter 2: Getting Started 2.5.2.3 USB 2.0/ USB 3.0 Connector Pin № Signal Name Pin № Signal Name USB_D- USB_D+ STDA_SSRX- STDA_SSRX+ GND_DRAIN STDA_SSTX- STDA_SSTX+ USB_D- USB_D+ 2.5.2.4 HDMI Connector G-WIN Panel PC uses HDMI1.4a connector to connect to the external display. Signal Name Signal Name №...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Chapter 3: Mounting This chapter provides mounting guide for all available mounting options. Pay attention to cautions and warning to avoid any damages.
Chapter 2: Getting Started 3.1 Cable Mounting Considerations For a nice look and safe installation, make sure cables are neatly hidden behind the Panel PC. Refer to Chapter 2, section 2.1 for the cable installation instruction. Warning!/ Avertissement! Observe all local installation requirements for connection cable type and protection level.
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 3.3.1 VESA Mounting G-WIN Military Panel PC compatible with VESA Mount solution. Follow the instruction below to complete mounting. Size VESA Plate Dimensions Screw hole diameter 8.4”, 10.4” 75 x 75 mm VESA M4x6 mm 15”...
Chapter 2: Getting Started 3.3.2 Yoke Mounting Yoke Mount solution allows to mount your device on a wall or ceiling. You can purchase dash/ yoke mounting kit from Winmate as an optional accessory. Yoke Mounting Kit: Size Winmate Part Number 8.4”...
Page 28
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Mounting steps: 1. Place the G-WIN Vehicle Mount Panel PC on the bracket stand, aiming screw hole for each other. 2. Secure three M5x10 screws to fix the device upon the bracket stand. 3.
Chapter 2: Getting Started 3.3.3 Roof Mounting Roof mounting allows mounting your device on the roof. You can purchase roof mounting kit from Winmate as an optional accessory. U-Shape Mounting Kit: Size Winmate Part Number 8.4” 98K008A0000R 10.4” 98K010A00018...
Page 30
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual U-Shape Mounting Kit Mechanical Drawing For 8.4” G-WIN Vehicle Mount Panel PC...
Page 31
Chapter 2: Getting Started For 10.4” G-WIN Vehicle Mount Panel PC...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Chapter 4: Driver Installation This chapter describes how to install all necessary drivers.
Chapter 2: Getting Started 4.1 Introduction The Panel PC comes with Motherboard User Manual and Driver CD according to the CPU, and contains most of the drivers and utilities that you need. To install Graphics, Chipset, VGA, Audio, SATA and Ethernet drivers, follow the step-by-step driver installation guide in the Motherboard User Manual (included in the package).
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 4.2.2 Configuration Utility After finishing the installation, follow the steps below to test the configuration utility. Step 1 Enter “My Computer”, click the “ELO Touch Screen” shortcut function. Step 2 Click “Align” function key to continue.
Page 35
Chapter 2: Getting Started Step 3 Calibrate four-point locations on the screen. Step 4 Click “Yes” if the cursor follows your finger and finish the utility test.
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 4.3 The Premier Touch Driver Installation Touch-Kit is the Premier Touch software, which contains drivers of the touch panel controllers for the specified communication connectors, RS232, PS/2 and USB, and the other two utilities. The two utilities are as follows: ...
Page 37
Chapter 2: Getting Started Step 2 Enter “General” functions and choose the language you need. Then Enter “Tool” function alignments to match the display. And go to the next step. Step 3 Correct four-point locations on screen.
Page 38
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Step 4 Press “Yes” to continue if four-point calibration test is complete successfully and press Ok to finish the screen calibration.
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual 5.1 Using USB-HDD or USB-CDROM for Booting OS If you need to use USB-HDD or USB-CDROM for booting an operating system at start-up time, we recommend disabling the “Quick Power On Self Test” function in CMOS setting。...
Chapter 5: Troubleshooting Important: While using CF card as storage of the Operation System, you need to use “Fixed Mode” type Compact Flash Card instead of removable disk mode. Disk The internal Compact Flash socket is NOT A PLUG & PLAY DEVICE;...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Chapter 6: Technical Support This chapter includes information where to find technical support and Winmate’s Software Developing Kit (SDK). If any problem occurs fill in Problem Report Form enclosed and immediately contact us.
Chapter 6: Technical Support 6.1 Software Developer Support We provide the SDK in the User Manual and SDK CD, or you can download the SDK from Winmate Download Center or Winmate Partner Portal. The list of SDK for S-Series HMI: Item...
8.4~15"G-WIN Military Panel PC (Bay Trail N2930) User Manual Appendix B: Order Information Item Description Mounting Bracket and Kits One robust bracket with locking handle (Can adjust from -5deg. to 90deg.) Operating System Windows Embedded 7 , Windows Embedded 8*, Windows 10 IoT Enterprise *For Windows Embedded 8, this panel pc does not support the Metro UI, only support desktop mode.
