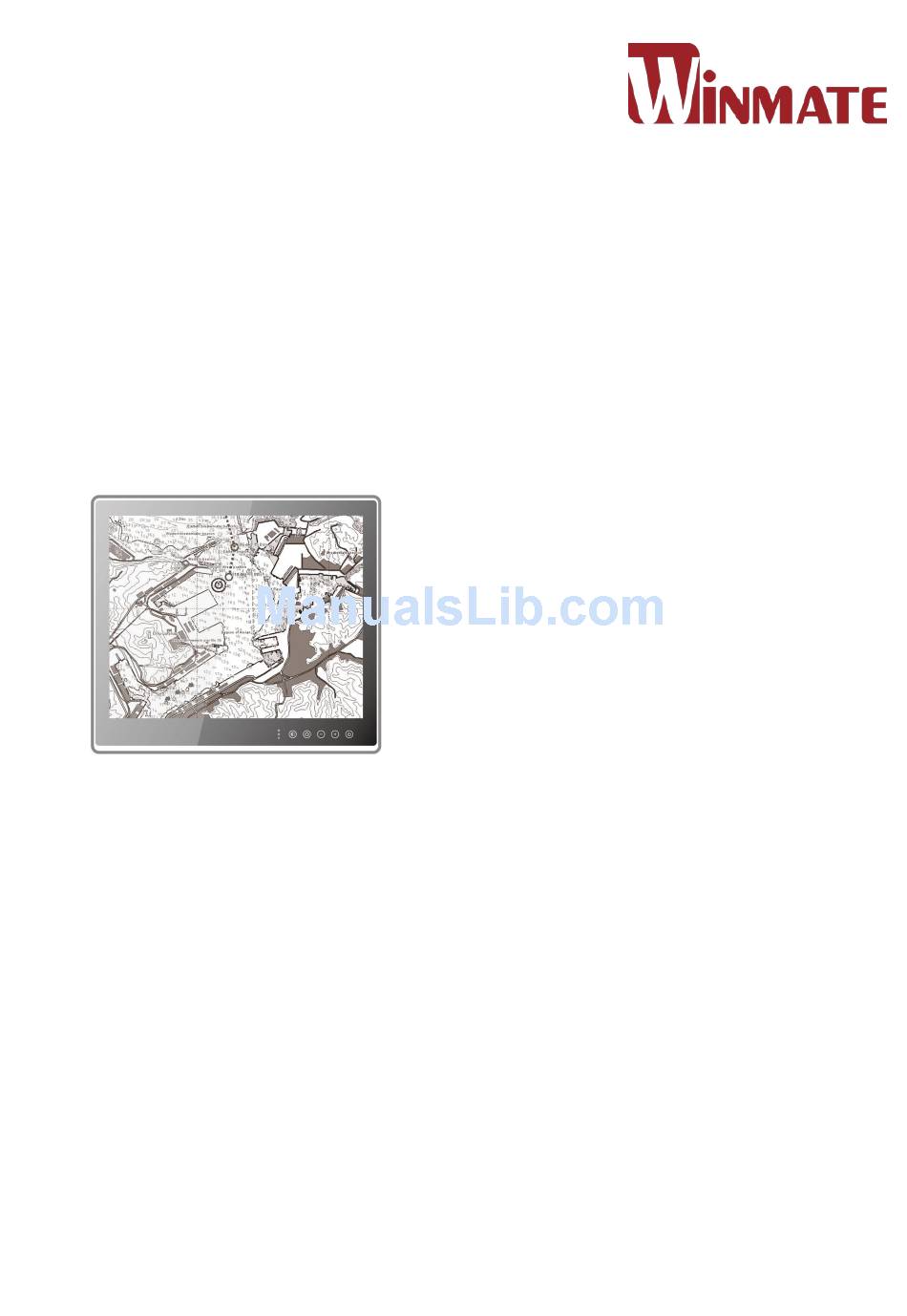

- Page 1 15/19/24/26” Panel PC ECDIS Marine R15IH3S-MRA3FP R19IH3S-MRA1FP W24IH3S-MRA1FP W26IH3S-MRA1FP Quick Start Guide V1.0 Document Part Number: 91521110100E Please read these instructions carefully before using this product, and save this manual for future use.
- Page 2 Brand and product names are trademarks or registered trademarks of their respective owners. Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume...
- Page 3 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. NOTE: A note is used to emphasize helpful information IMPORTANT:...
- Page 4 Panel Mounting VESA Mounting 3 Installation Connector Description Powering On or Off 4 Operating the Device Turning On and Off ECDIS Mode Brightness Adjustment Hot Tab Introduction 5 Software Developer Support Winmate Download Center Winmate File Share - 4 -...
-
Page 5: Getting Started

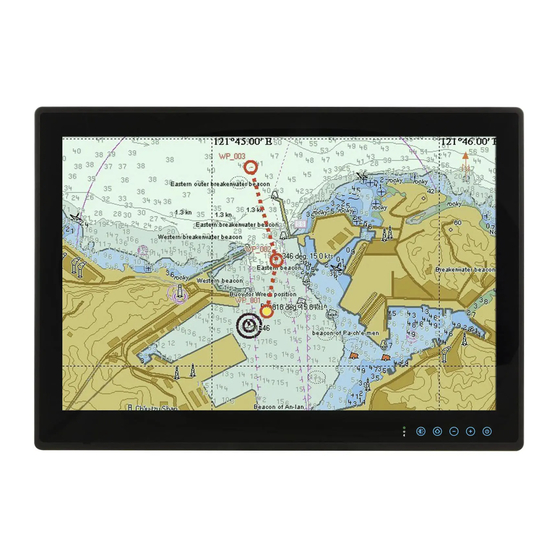

IEC60945 4th Edition, DNV2.4, IACS E10. Modern marine sector requires durable devices that can withstand long periods submersed in water. Winmate ECDIS Marine Series Panel PC is suitable for navigation, ship automation, and surveillance, rugged industrial and light military applications.. Flat surface is easy-to-clean and delivers aesthetically pleasing look. -
Page 6: Unpacking
Unpacking Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Accessories The factory shipment list: Quick Start Guide Panel PC Driver CD &... -
Page 7: Description Of Parts
Description of Parts Appearance 15” Description Description 4 x NMEA 0183 Port (optional 1 x RS232/422/485 ① ⑤ 2 x RJ-45 LAN 1 x DI/DO 8 Channel (optional) ② ⑥ 1 x HDMI ③ 1 x DC Power Input ⑦ 2 x USB 3.0 ④... - Page 8 Appearance 19” Description Description 4 x NMEA 0183 Port (Optional) 1 x RS232/422/485 ① ⑤ 2 x LAN (RJ-45) 1 x USB 2.0 ② ⑥ 1 x HDMI 1 x DI/DO 8 Channel (Optional) ③ ⑦ 2 x USB 3.0 1 x DC Power Input ④...
- Page 9 Appearance 24” and 26” Description Description 1 x 2.5" Removable HDD 1 x USB 2.0 ① ⑥ 2 x LAN (RJ-45) 1 x DI/DO 8 Channel (Optional) ② ⑦ 1 x HDMI 4 x NMEA 0183 Port (Optional) ③ ⑧ 2 x USB 3.0 ④...
- Page 10 Capacitive Touch OSD Control Panel Capacitive touch OSD control panel is located on the front of your Panel PC. ECDIS Mode Indicator Capacitive Touch Keys Icon Function Description Icon Function Description Default: Switching Function Key Lights up when ECDIS ECDIS standard range Day Mode brightness adjusted to Default setting:...
-
Page 11: Installing 2.5" Removable Hdd
Installing 2.5" Removable HDD The 24” and 26” Marine Panel PC ECDIS series has tray for SATA hard disk. No tools required to install the hard disk. Follow the instructions below to quickly install/remove the hard disk. Step 1 Disconnect the device from the power source. Step 2 Loosen the thumb screw beside the valve of hard drive bay. -
Page 12: Mounting
VESA Mount. This section explains how to mount ECDIS Marine Panel PC. Panel Mounting Winmate provides mounting clips for installation onto a wall or into console by request. Make sure you console cutout matches the Panel PC cutout dimensions. -
Page 13: Vesa Mounting
VESA Mounting Winmate provides VESA and Wall Mount Kits by request. VESA Plate Dimensions 15” 19” 24” 26” 100 x 100 100 x 100 100 x 100 100 x 100 100 x 200 100 x 200 Screw Hole Diameter M4 D=3mm... - Page 14 Mounting Steps: 1. Screw VESA bracket to the fixture (ex. wall) with four screws (refer to the table above for screw hole diameter). 2. Place the device on VESA bracket. 3. Connect all cables and peripheral devices. 4. When the installation is complete, plug the power cord into a grounded AC outlet. Turn on the power.
-
Page 15: Installation
3 Installation Connector Description DC Input Connector DC terminal block power source input compact design meets the maritime application. The 3- pin terminal block is to be secured that the cable to screw terminal. Pin No. Signal Name Description VIN+ 9-36V DC Input + VIN- 9-36V DC Input -... - Page 16 USB 2.0 Connector Use standard USB2.0 type A cable to connect any device that use USB2.0 interface for expansion functions. Pin № Pin № Signal Name Signal Name Data- Data+ LAN (RJ45) Connector The Marine Panel PC supports one 10/100/1000 Mbps Ethernet interface for connecting to the internet.
- Page 17 NMEA 0183 Port (Optional) By request the Marine Panel PC comes with NMEA port on the bottom panel. The figure shows the pin assignments. Pin No. Signal Name Pin No. Signal Name TxD1- TxD2- TxD1+ TxD2+ RxD1- RxD2- RxD1+ RxD2+ NMEA 0183 ports can change serial status for RS-422 or RS-485 in COM Port Mode Switch.
-
Page 18: Powering On Or Off
Powering On or Off Connecting to AC Power Source (For testing) 1. Plug one end of the terminal block cable firmly to the DC IN Jack. 2. Plug the other end of the terminal block plug to the AC adapter (12V 80W). 3. -
Page 19: Operating The Device
4 Operating the Device Turning On and Off Turning On Press and hold the capacitive power key ( ) for 4 seconds until the blue LED backlight light Turning Off Perform the following procedure to shut down the Panel PC (for Windows 8): 1. -
Page 20: Ecdis Mode Brightness Adjustment
ECDIS Mode Brightness Adjustment Winmate provides quickly adjustable Buttons for the ECDIS mode switch (DAY, DUSK , NIGHT) ECDIS Mode Brightness Adjustment Switch the ECDIS mode by tapping capacitive touch key. Tap the "ECDIS Mode Quick Button", and the level of brightness is automatically adjusted according to ECDIS standard. - Page 21 Switching to DAY Mode The brightness was adjusted to DAY Mode DAY Mode LED Indicator Switching to DUSK Mode The brightness was adjusted to DUSK Mode DUSK Mode LED Indicator Switching to NIGHT Mode The brightness also be adjusted to NIGHT Mode NIGHT Mode LED Indicator...
-
Page 22: Hot Tab Introduction
Hot Tab Introduction Hot Tab is a tool that is used to control system settings. If your order includes pre-installed OS, the Hot Tab control utility is also included in to your system. You can find HotTab Utility Icon in Windows System Tray: Hot Tab Menu - 22 -... - Page 23 Icon Sub-menu Description Controls Volume. Plus (+) touch key is mapped to raise the volume and Minus Volume (-) touch key is mapped to lower the volume. Controls the screen Brightness. Plus (+) touch key is mapped to raise screen brightness and Minus (-) touch key is mapped to lower screen Brightness brightness.
-
Page 24: Software Developer Support
5 Software Developer Support Winmate provides the following drivers for ECDIS Marine Panel PC with Intel® Core i5-5200U Broadwell processor: Item Driver Windows 7 Windows 8 Windows ☑ ☑ ☑ Chipset Driver ☑ ☑ ☑ Graphics Driver ☑ ☑ ☑... - Page 25 NOTES __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________ __________________________________________________________________...
- Page 26 Winmate Inc. 9F, No.111-6,Shing-De Rd., San-Chung District, Taipei 241, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
