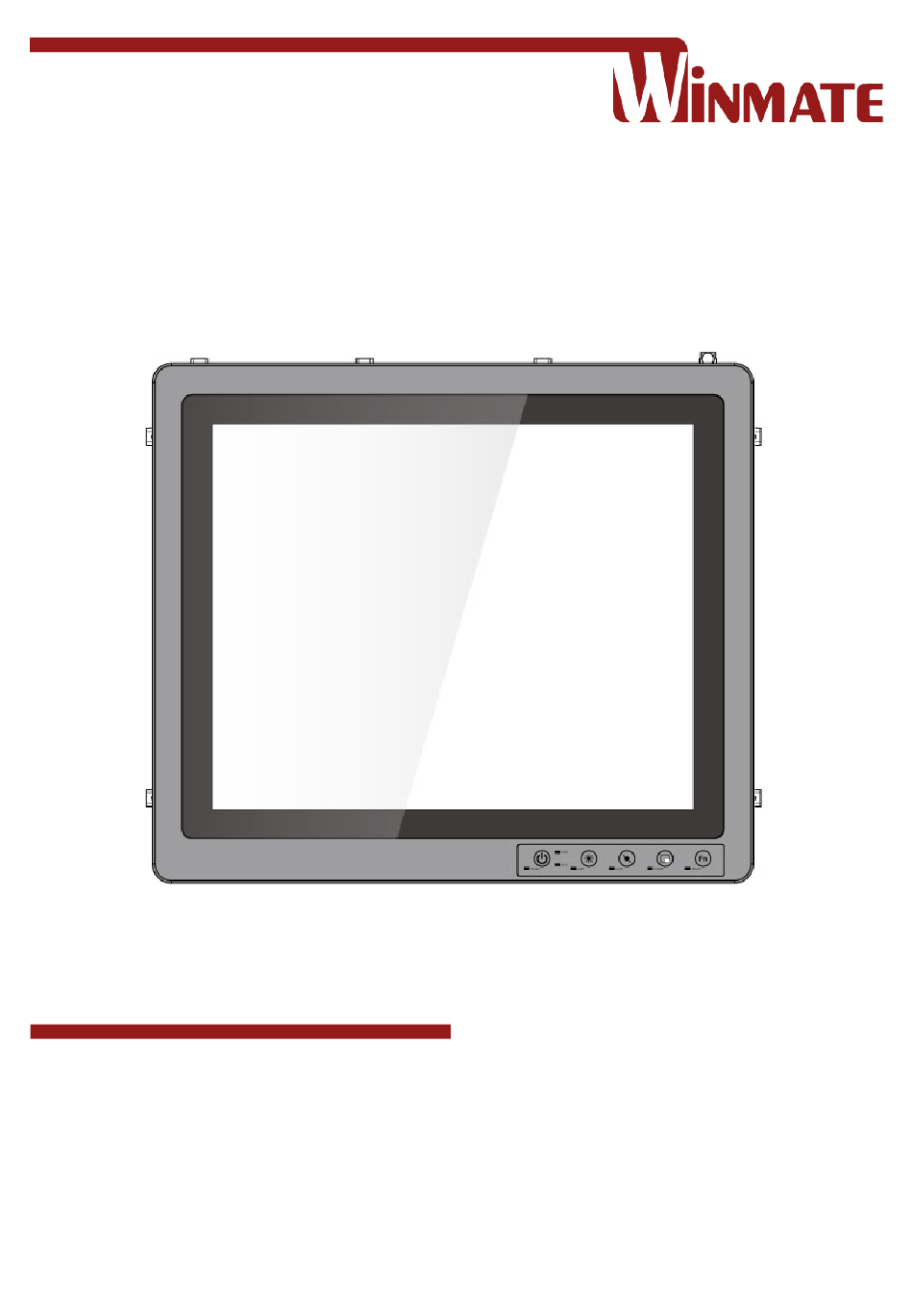

- Page 1 Full IP67 Panel PC G-WIN Series R19IK3S-67FTP(HB) Quick Start Guide Document Version 1.0 Document Part No. 915211101077 Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
R19IK3S-67FTP(HB) Quick Start Guide Contents Preface Chapter 1: Introduction 1.1 Overview 1.2 Features 1.3 Package Contents 1.4 Product Overview 1.5 Front Buttons & LED Indicators Chapter 2: Installation 2.1 Cleaning the Monitor 2.2 Wiring Requirements 2.3 Connecting Peripherals 2.4 Connectors Pin Assignment 2.5 Connecting to the Source of Power Chapter 3: Getting Started 3.1 Turning On Your Device... -
Page 3: Preface
Preface Preface Copyright Notice No part of this document may be reproduced, copied, translated, or transmitted in any form or by any means, electronic or mechanical, for any purpose, without the prior written permission of the original manufacturer. Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. - Page 4 R19IK3S-67FTP(HB) Quick Start Guide Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
- Page 5 Preface spray detergents for cleaning. Use a damp cloth. • For pluggable equipment, the power outlet must be installed near the equipment and must be easily accessible. • Keep this equipment away from humidity. • Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage.
- Page 6 R19IK3S-67FTP(HB) Quick Start Guide Important Information Federal Communications Commission Radio Frequency Interface Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including ...
-
Page 7: Chapter 1: Introduction
Chapter 1: Introduction 1.1 Overview Winmate 19" G-WIN Rugged Panel PC R19IK3S-67FTP(HB) features high-performance and low power consumption Intel® Core i5-7200U 3.1 GHz processor with the fanless thermal system. The 19" 1280 x 1024-pixel screen with up to 1000 nits brightness and optical bonding technology offers sunlight readability. -
Page 8: Product Overview
R19IK3S-67FTP(HB) Quick Start Guide 1.4 Product Overview Unit: mm Dimensions: 457.7 x 381.7 x 111 Description 1 x IP67 USB 2.0 A Type with cover 1 x IP67 LAN with RJ45 Connector 1 x IP67 USB 2.0 Connector 1 x IP67 RS232/422/485 1 x IP67 9~36V DC... -
Page 9: Front Buttons & Led Indicators
Chapter 1: Introduction 1.5 Front Buttons & LED Indicators Front Buttons & LED Indicators are located at the front side of the R19IK3S-67FTP(HB) panel Front Buttons Button Function Power on/off. Increase the brightness. Decrease brightness. Suspend the touch function temporarily. Programmable function key configured by FunctionKeys Utility. -
Page 10: Chapter 2: Installation
R19IK3S-67FTP(HB) Quick Start Guide Chapter 2: Installation 2.1 Cleaning the Monitor Before cleaning: • Make sure the device is turned off. • Disconnect the power cable from any AC outlet. When cleaning: • Never spray or pour any liquid directly on the screen or case. •... -
Page 11: Connecting Peripherals
Chapter 2: Installation 2.3 Connecting Peripherals Caution To keep the IP67 rating of the device, always use protection cover for the I/O connectors that are not in use. General instruction on how to connect peripherals to the panel PC: 1. Open the I/O protection cover of the required connector. 2. - Page 12 R19IK3S-67FTP(HB) Quick Start Guide RS-232/422/485 Port LAN Port...
- Page 13 Chapter 2: Installation USB 2.0 Port USB 2.0 A Type Port...
-
Page 14: Connecting To The Source Of Power
R19IK3S-67FTP(HB) Quick Start Guide 2.5 Connecting to the Source of Power To connect the panel PC to the power source: 1. Open the protection cap from the DC jack connector. 2. Connect the 9-36V DC power cable to the DC jack located on the panel PC. 3. -
Page 15: Chapter 3: Getting Started
Chapter 3: Getting Started Chapter 3: Getting Started 3.1 Turning On Your Device 1. Connect the power adapter to the device. 2. Plug the power adapter power cord to an electrical outlet. 3. Press the Power button located on the front side to turn on the device. 3.2 Adjusting the LCD Display Brightness Use the OSD membrane buttons on the front side to increase or decrease... -
Page 16: Chapter 4: Mounting Solution
R19IK3S-67FTP(HB) Quick Start Guide Chapter 4: Mounting Solution 4.1 Panel Mount With the mounting clamps and screws, it provides fast and easy mounting of the 19" panel PC onto an instrument panel or wall panel To mount the device to a subframe or panel, do the following: 1. -
Page 17: Vesa Mount
Chapter 4: Mounting Solution 4.2 VESA Mount The R19IK3S-67FTP(HB) panel PC support VESA mount 100 x 100 mm for the convenient installation on the wall, desk mount or other VESA-supported solution. - Page 18 R19IK3S-67FTP(HB) Quick Start Guide To mount the device using VESA mount, do the following: Dimensions: 100 x 100mm Screw Hole Diameter: M4 x 5 mm Direction:Compatible with swimming arms mounting kit...
-
Page 19: Chapter 5: Operating The Device
Chapter 5: Operating the Device 5.1 Capacitive Touch Keys Capacitive Touch Keys is a program made by Winmate to control the main functions of the panel PC. In Capacitive Touch Keys, users can adjust brightness settings, set up function key, and touch lock. -
Page 20: Plus/ Minus Keys
R19IK3S-67FTP(HB) Quick Start Guide 5.2 Plus/ Minus Keys Open +/- Key to adjust the device's volume, brightness using Plus/ Minus Keys on a scale 0~100. -
Page 21: Function Key
Chapter 5: Operating the Device 5.3 Function Key Open Function Key to define function keys settings. 5.4 Touch Lock Open Touch Lock to lock/ unlock touch screen function. Under the Touch Lock mode, the touchscreen is locked from all touch inputs, while keypad input remains operational. -
Page 22: Appendix
R19IK3S-67FTP(HB) Quick Start Guide Appendix Appendix A: Hardware Specifications Model Name R19IK3S-67FTP(HB) Item Specifications Display Panel Size 19 inches Resolution 1280 x 1024 Brightness 400 nits (optional 1000 nits high brightness) Contrast Ratio 1000:1 (typ.) Viewing Angles -85~85 (H); -80~80 (V) Max Colors 16.7M Projected Capacitive Touch... - Page 23 Notes ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________ ______________________________________________________________________________________________________________________________________________________________________________...
- Page 24 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
