Intel® Celeron® Bay Trail-M N2930 1.83 GHz
Quick Start Guide
For more information on this
and other Winmate products,
please visit our website at:
www.winmate.com
Document Part No. 91521110100P
Please read these instructions carefully before using this product, and save this manual for future use.

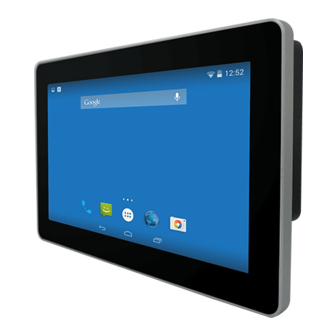

G-WIN Slim IP65
P-CAP Panel PC
Model No. W10IB3S-GSH1(HB)
R10IB3S-GST2
R12IB3S-GSM2(HB)
R15IB3S-GSC3(HB)
V1.4
Advertisement
Table of Contents
Related Manuals for Winmate W10IB3S-GSH1HB
Summary of Contents for Winmate W10IB3S-GSH1HB

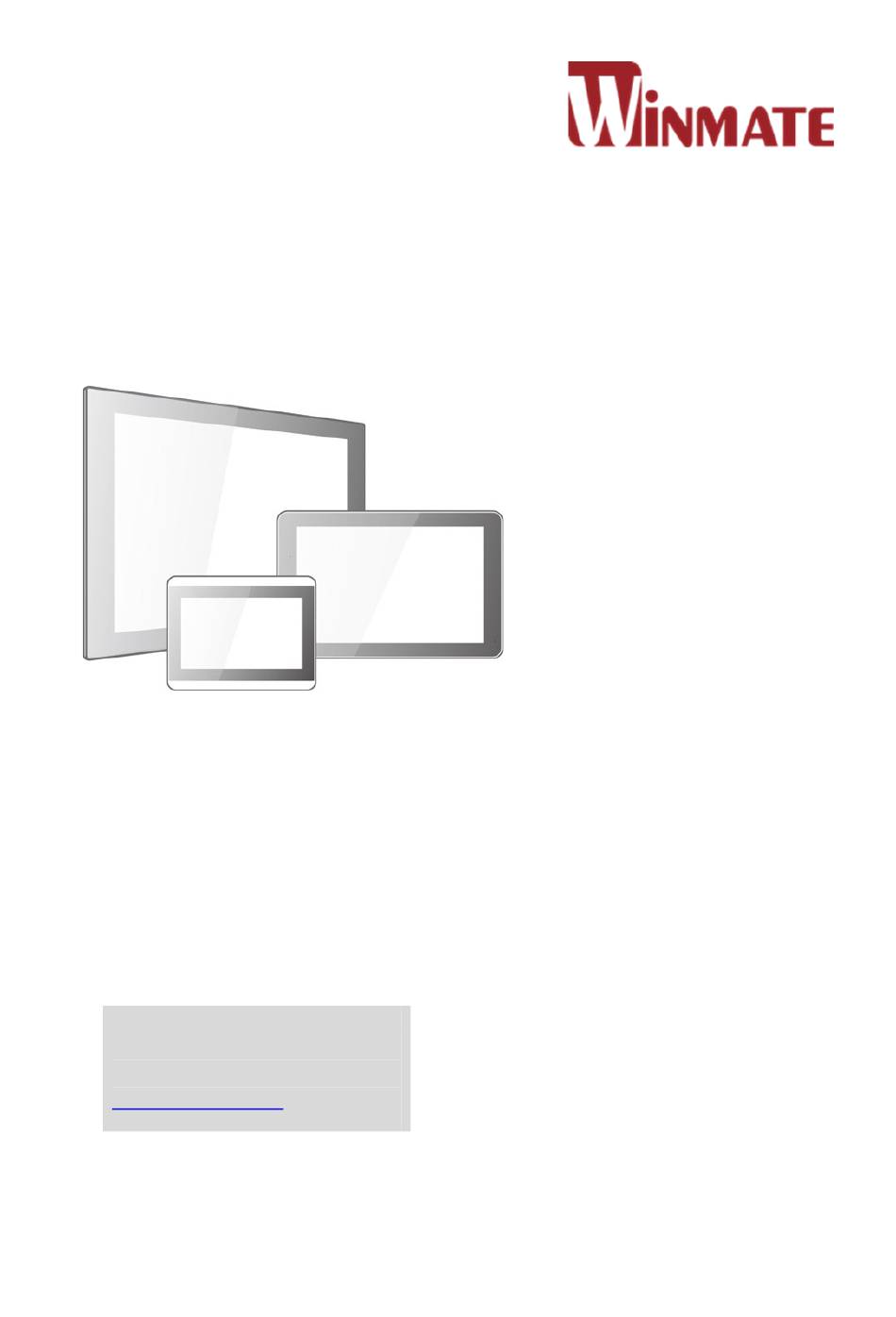

- Page 1 R15IB3S-GSC3(HB) Quick Start Guide V1.4 For more information on this and other Winmate products, please visit our website at: www.winmate.com Document Part No. 91521110100P Please read these instructions carefully before using this product, and save this manual for future use.
-
Page 2: Table Of Contents
3.4.1 VESA Mounting - 22 - 3.4.2 Panel Mounting - 23 - 4 SPECIFICATIONS - 24 - APPENDIX - 26 - Appendix A: Cleaning the Monitor - 26 - Appendix B: Winmate Software Development Kit - 27 - - 2 -... - Page 3 FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
- Page 4 Disclaimer Winmate Inc. reserve the right to make changes, without notice, to any product, including circuits and/or software described or contained in this manual in order to improve design and/or performance. We assume no responsibility or liability for...
- Page 5 Safety Information WARNING! / AVERTISSEMENT! Always completely disconnect the power cord from your chassis whenever you work with the hardware. Do not make connections while the power is on. Sensitive electronic components can be damaged by sudden power surges. Only experienced electronics personnel should open the PC chassis.
-
Page 6: Introduction
IP 65 dustproof and waterproof and have M12 connectors. 1.1 Features Winmate® G-WIN Slim IP65 with P-CAP Panel PC features: • Intel® Celeron® Bay Trail-M N2930 1.83 GHz • Projected Capacitive Multi-Touch (P-CAP) • Fanless cooling system and Ultra-low power consumption •... -
Page 7: Package Contents
1.2 Package Contents Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard factory shipment list: Quick Start Guide Driver CD &... -
Page 8: Description Of Parts
1.3 Description of Parts W10IB3S-GSH1(HB) Unit: mm Dimensions: 263.28 x 173.6 x 40.2 № Description № Description ① 9-36V DC (M12 Type) ④ 1 Watt Speaker ② LAN, USB (M12 Type) ⑤ OSD Control Panel ③ RS232 (M12 Type) - 8 -... - Page 9 R10IB3S-GST2 Unit: mm Dimensions: 252.41 x 197.8 x 43 № Description № Description ① 9-36V DC (M12 Type) ③ RS232 (M12 Type) ② LAN, USB (M12 Type) ④ OSD Control Panel - 9 -...
- Page 10 R12IB3S-GSM2(HB) Unit: mm Dimensions: 296.2 x 226.7 x 45.5 № Description № Description ① 9-36V DC (M12 Type) ④ 1 Watt Speaker ② LAN, USB (M12 Type) OSD Control Panel ⑤ ③ RS232 (M12 Type) - 10 -...
- Page 11 R15IB3S-GSC3(HB) Unit: mm Dimensions: 363.4 x 277.86 x 45.2 № Description № Description ① 9-36V DC (M12 Type) ④ 1 Watt Speaker ② LAN, USB (M12 Type) ⑤ ③ RS232 (M12 Type) OSD Control Panel - 11 -...
-
Page 12: Physical Buttons And Led Indicators
1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators (OSD Control Panel) located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Press to power on or power off the device LED Indicators LED Type... -
Page 13: Getting Started
2 GETTING STARTED 2.1 Turning on Your Device 1. Remove the protective cap of the power connector. 2. Connect power cable to the connector of your device. Make sure the cable fits to the connector, then tighten the O-ring (by turning clockwise) to secure the connection. -
Page 14: How To Enable Watchdog
To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. To enable watchdog in Watchdog AP follow the instructions below: 1. - Page 15 3. In Watchdog utility window set countdown time and periodically feed time, or disable watchdog. Example: Every 10 min watchdog will monitor the system, in case any error occurs the system will restart automatically when the countdown time reaches 0. Every 9 min watchdog timer will be reset to 10 min.
-
Page 16: Turning Off Your Device
2.3 Turning off Your Device Disconnect the power cord from the Panel PC to completely turn off the device. - 16 -... -
Page 17: Installation
3 INSTALLATION 3.1 Wiring Requirements The following common safety precautions should be observed before installing any electronic device: • Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 18: Connecting To Other Devices
3.2 Connecting to Other Devices This Panel PC comes with various interfaces located on the bottom panel. All of these connectors have been shipped with protective caps. To ensure the waterproof function can work properly, make sure that the protective caps and have been securely tightened whenever the connectors are not used. -
Page 19: Connector Description
3.3 Connector Description The Panel PC features M12 type connectors with protective cap and has full IP65 rating. 3.3.1 Power Input Connector Panel PC has M12 type 3 pin male power input connector which accepts 9-36 V DC power input. Use IP65 power cable to connect the Panel PC to the source of power. -
Page 20: Serial Interface Connector
3.3.2 Serial Interface Connector Panel PC has M12 type 10 pin male RS-232 connector. Use IP65 serial cable to connect the Panel PC to external devices. - 20 -... -
Page 21: Giga Lan + Usb 2.0 Connector
3.3.3 Giga LAN + USB 2.0 Connector Panel PC has M12 12 pin male Giga LAN and USB connector that supports two LAN and one USB 2.0. Use IP65 Giga LAN + USB 2.0 cable to connect the Panel PC to external devices. - 21 -... -
Page 22: Mounting
100x100 mm Mounting Instruction Use Philips M4x5 screws to fix the desk stand to VESA holes on the back cover of the device. *The picture is for demonstration purposes only. VESA Mounting accessories are not supplied by Winmate. - 22 -... -
Page 23: Panel Mounting
3.4.2 Panel Mounting Panel Mount mounting solutions is suitable for many applications where Panel PC should be embedded. With this mounting solution flat surface leave no bezel in the front. Size Wall Cutout, mm Screw Hole Diameter, mm 10.1” 249 x 157.6 M4x5 10.4”... -
Page 24: Specifications
4 SPECIFICATIONS Model Name W10IB3S- R10IB3S- R12IB3S- R15IB3S- GSH1(HB) GST2 GSM2(HB) GSC3(HB) Display 10.1” TFT Size/Type 10.4” 12.1” TFT 15” TFT (Widescreen) Resolution 1024 x 600 1024 x 768 1024 x 768 1024 x 768 350 nits 420 nits (Optional 500 nits(Optional 300 nits (Optional Brightness... - Page 25 Model Name W10IB3S- R10IB3S- R12IB3S- R15IB3S- GSH1(HB) GST2 GSM2(HB) GSC3(HB) Power Specifications Power Input 12V DC in 12V DC in 12V DC in 12V DC in Power Consumption Mechanical Specifications Cooling Fanless Design Fanless Design Fanless Design Fanless Design System VESA Mount, VESA Mount, VESA Mount,...
-
Page 26: Appendix
APPENDIX Appendix A: Cleaning the Monitor Before cleaning: • Make sure the device is turned off. • Disconnect the power cable from any AC outlet. When cleaning: • Never spray or pour any liquid directly on the screen or case. •... -
Page 27: Appendix B: Winmate Software Development Kit
Appendix B: Winmate Software Development Kit Winmate® provides Software Development Kit (SDK). The table below lists SDK provided by Winmate for Winmate® G-WIN Slim IP65 with P-CAP Panel PC with Intel® Celeron® Bay Trail-M N2930 processor: Item File Type Description... - Page 28 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Email: sales@winmate.com.tw Official website: www.winmate.com...
