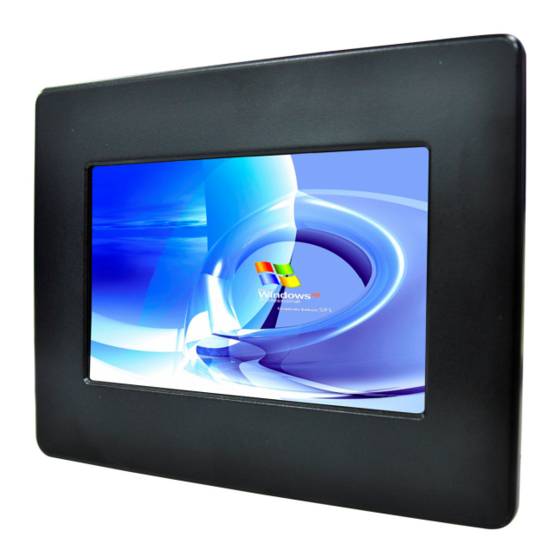

- Page 1 ARM-11 HMI Series Panel PC Samsung-6410 Series SBC, Low Power, High Performance Design with ARM-11 Series Platform, TFT LCD, RS232, RS422/485 and 10/100 base-T Ethernet. User Guide Version 1.0 WinMate Communication INC...
- Page 2 5. 1 x Screw Type Power Supply 100-240 Vac / 12Vdc, 15W Make sure that all of the items listed above are present. Do not attempt to apply power to the system if there is damage to any of its components. ARM-11 HMI Series PPC User’s Manual...
- Page 3 Trademark Acknowledgement Brand and product names are trademarks or registered trademarks of their respective owners. ARM-11 HMI Series PPC User’s Manual...
- Page 4 (e. g., with A for October, B for November and C for December). For example, the serial number 1W07Axxxxxxxx means October of year 2007. ARM-11 HMI Series PPC User’s Manual...
- Page 5 Modern electronic devices are very sensitive to static electric charges. As a safety precaution, use a grounding wrist strap at all times. Place all electronic components in a static-dissipative surface or static-shielded bag when they are not in the chassis. ARM-11 HMI Series PPC User’s Manual...
- Page 6 The equipment has obvious signs of breakage. Do not leave this equipment in an uncontrolled environment where the storage temperature is below -20° C (-4°F) or above 60° C (140° F). It may damage the equipment. ARM-11 HMI Series PPC User’s Manual...
-
Page 7: Table Of Contents
Creating a New OS Design ................18 Building OS Image – Without KITL............23 HMI series Panel PC Mounting Guide ................35 VESA Mount ....................35 Panel Mount (Clip Design):...............37 Services/ Updates ......................39 HMI Official website ...................39 Company information.................39 ARM-11 HMI Series PPC User’s Manual... -
Page 8: General Information
Windows CE and Linux 2.6.2 that supports Thin-Client solutions. The built-in Windows CE6.0 and Linux 2.6.2 OS platform lets ARM-11 HMI Series PPC become an Open HMI solution for system integration. ARM-11 HMI Series PPC... -
Page 9: Features
Depending on which ARM-11 HMI Series PPC features you choose to access, it can be used for anything from a user interface panel to the main controller for your automation equipment. -
Page 10: Dimension And Overview
1.3 Dimension and Overview 1.3.1 Dimension R05SA20-IPD1HM ARM-11 HMI Series PPC User’s Manual... - Page 11 W07SA20-IPA2HM 1.3.2 Overview ARM-11 HMI Series PPC User’s Manual...
-
Page 12: Specifications
218 x 164 x 58 mm (W x H x D) Environmental Specification Operation Temperature 0~50°C Operating Humidity 30%~90% ( non-condensing, RH ) Order Options Mechanical IP65 (5mm bezel) Touch 4 Wires Resistive(Optional) Windows CE6.0 / Linux 2.6.24 ARM-11 HMI Series PPC User’s Manual... -
Page 13: System Block
The HMI series Panel PCs support form 5.7-inch and 7-inch TFT Panel w/ touch screen function, please refer to the below: Size Model Name Resolution Display Color 5.7” R05SAEU-IPD1HM 640 x 480 262k 7” W07SAEU-IPA2HM 800 x 480 262k ARM-11 HMI Series PPC User’s Manual... -
Page 14: Getting Started
Connect the power to 12V DC power supply to 3 pins Terminal block (Phoenix Type) Press the power on switch to start the Panel PC. We recommend a Start Kit for your initial development purchase, and the bare devices for later production quantities. ARM-11 HMI Series PPC User’s Manual... -
Page 15: Installation User Guide For Smdk6410 (Wince6.0 R3)
The detail information of each topic is explained in the following chapters. and about connectivity to platform builder, please read “SMDK6410_Platform_builder_Connectivity.doc” document. This help you how to download and connect your device with OS image to platform builder. ARM-11 HMI Series PPC User’s Manual... -
Page 16: Copying Bsp And Setting Up Visual Studio 2005
X:\WINCE600\PLATFORM\SMDK6410 directory has the same name as that of the BSP, i.e. SMDK6410.pbcxml and SMDK6410.bat. Note: About PQOAL & SOC Folder Structure, Please refer to porting guide, If you don’t know the difference between PQOAL and non-PQOAL structure, read first porting guide. SMDK6410 BSP Files ARM-11 HMI Series PPC User’s Manual... - Page 17 (2) To start SMDK6410 Windows Embedded CE 6.0 BSP Porting, on your host PC click Start, point to All Programs, point to Microsoft Visual Studio 2005 and then click on Microsoft Visual Studio 2005. The following window appears on your screen. Visual Studio 2005 Window ARM-11 HMI Series PPC User’s Manual...
-
Page 18: Creating A New Os Design
In this chapter, you can understand how to create a new OS Design using the Visual Studio 2005. (1) On the File menu in the Visual Studio 2005 window, click New /Project as shown in below Creating New Project ARM-11 HMI Series PPC User’s Manual... - Page 19 (2) The following window appears on your screen. Click OK button to continue. New Project for WinCE6.0 (3) The Windows Embedded CE 6.0 OS Design Wizard appears on your screen as below figure. Click NEXT button to continue . Windows Embedded CE 6.0 OS Design Wizard ARM-11 HMI Series PPC User’s Manual...
- Page 20 (5) The Design Template Wizard window appears on your screen. Please select PDA Device from Available design templates list and then click Next button. Windows Embedded CE 6.0 OS Design Wizard – Step 2 ARM-11 HMI Series PPC User’s Manual...
- Page 21 (7) The following window appears on your screen. Here you can select the Application & Media you want to include in your platform and then click Next button. Windows Embedded CE 6.0 OS Design Wizard – Step 4 ARM-11 HMI Series PPC User’s Manual...
- Page 22 Windows Embedded CE 6.0 OS Design Wizard – Step 5 (9) The following window appears on your screen. Please read all the security warnings and then click Acknowledge button. Windows Embedded CE 6.0 OS Design Wizard – Step 6 ARM-11 HMI Series PPC User’s Manual...
-
Page 23: Building Os Image - Without Kitl
Here, you can choose items what you want to include in your OS design. The chosen items in this instruction are only for sample purpose. Catalog Items View (2)You can change build mode (release or debug mode) as below figures. Select SMDK6410_ARMV4I Release. Build Mode in Visual Studio 2005 ARM-11 HMI Series PPC User’s Manual... - Page 24 Storage Manager-Storage Manager Control Panel Applet Storage Manager-TFAT File System Adding File System and Data store Item to OS Design (4)Expand Core OS node in Catalog Items View window, then expand Graphics and Multimedia ARM-11 HMI Series PPC User’s Manual...
- Page 25 Media-DirectShow Video Capture (Required for Camera) Adding Graphics and Multimedia Technologies Item to OS Design SMDK6410 WINCE6.0 INSTALLATION MANUAL (5)Expand Core OS Services node in the Core OS node in Catalog Items View, then expand USB ARM-11 HMI Series PPC User’s Manual...
- Page 26 USB Human Input Device(HID) Class Driver (recommended) USB HID Keyboard and Mouse USB Storage Class Driver Adding Core OS Services Item to OS Design (6)Expand Applications and Services Development node in Catalog Items View window, then ARM-11 HMI Series PPC User’s Manual...
- Page 27 OBEX Server. Select OBEX File Brower and OBEX Inbox. Adding Core OS Services Item to OS Design ARM-11 HMI Series PPC User’s Manual...
- Page 28 Select SD Bus Driver in SD, SD Memory in SDIO and Windows Embedded CE Test Kit.\ Adding Device Drivers Item to OS Design (8)Expand Device Drivers node in Catalog Items View window, then expand Networking. Select Serial Infrared (SIR) as shown in the figure below. ARM-11 HMI Series PPC User’s Manual...
- Page 29 Adding Networking Item to OS Design (9)On the top of Visual Studio 2005, You can see the Project menu as below figure. And then select Properties... ARM-11 HMI Series PPC User’s Manual...
- Page 30 Properties of OS Design (10)The OS Design Properties Pages window appears on your screen. Select Locale tab and click Clear All button. It clears all the language settings in your platform. Now select English ARM-11 HMI Series PPC User’s Manual...
- Page 31 Properties in OS Design Properties Pages window and then click OK button. Removing KITL Setting in OS Design Properties Window (12)On the Build menu, click Build OSDesign1 as shown in figure bleow to build the Eboot and ARM-11 HMI Series PPC User’s Manual...
- Page 32 Build OS Design (13)The arrow pointing to the icon in the following figure indicates the Building process. ARM-11 HMI Series PPC User’s Manual...
- Page 33 It might take around 1 hour. Building Process (14)After completion of build process, following messages appear as shown in figure below. EBOOT.nb0, EBOOT.bin, STEPLDR./nb0, NK.bin and NK.nb0 are now available in ARM-11 HMI Series PPC User’s Manual...
- Page 34 X:\WINCE600\OSDesigns \[OS Design Name]\ [OS Design Name]\RelDir\SMDK6410_ARMV4I_Release directory. After Building the OS Image ARM-11 HMI Series PPC User’s Manual...
-
Page 35: Hmi Series Panel Pc Mounting Guide
-Panel is aligned with the same height of the front of open frame metal housing -Customers can fix our Panel PC with their own front bezel. -VESA mount holes are also available for mounting from back side. ARM-11 HMI Series PPC User’s Manual... - Page 36 Panel PC Size VESA Mount Dimension 5.7” 75 x 75 mm 7” 75 75 mm ARM-11 HMI Series PPC User’s Manual...
-
Page 37: Panel Mount (Clip Design)
-Panel is aligned with the same height of the front of open frame metal housing. -Touch/Glass is higher than Open frame metal housing. -Customers can fix our Panel PC with their fixture (max.12mm) -VESA mount holes are also available for mounting from back side. ARM-11 HMI Series PPC User’s Manual... - Page 38 Panel mount (6mm Font Bezel) Panel PC Size Mounting kit (pcs) 5.7” 7” ARM-11 HMI Series PPC User’s Manual...
-
Page 39: Services/ Updates
5.2 Company information Winmate Communication Inc. 9F, No.111-6, Shin- De Rd,. San- Chung City Taipei 241, Taiwan, R.O.C. Tel: 886-2-8511-0288 Fax: 886-2-8511-0211 Contact us: sales@winmate.com.tw Distributor and more products: Please refer to our website: www.winmate.com.tw ARM-11 HMI Series PPC User’s Manual...
