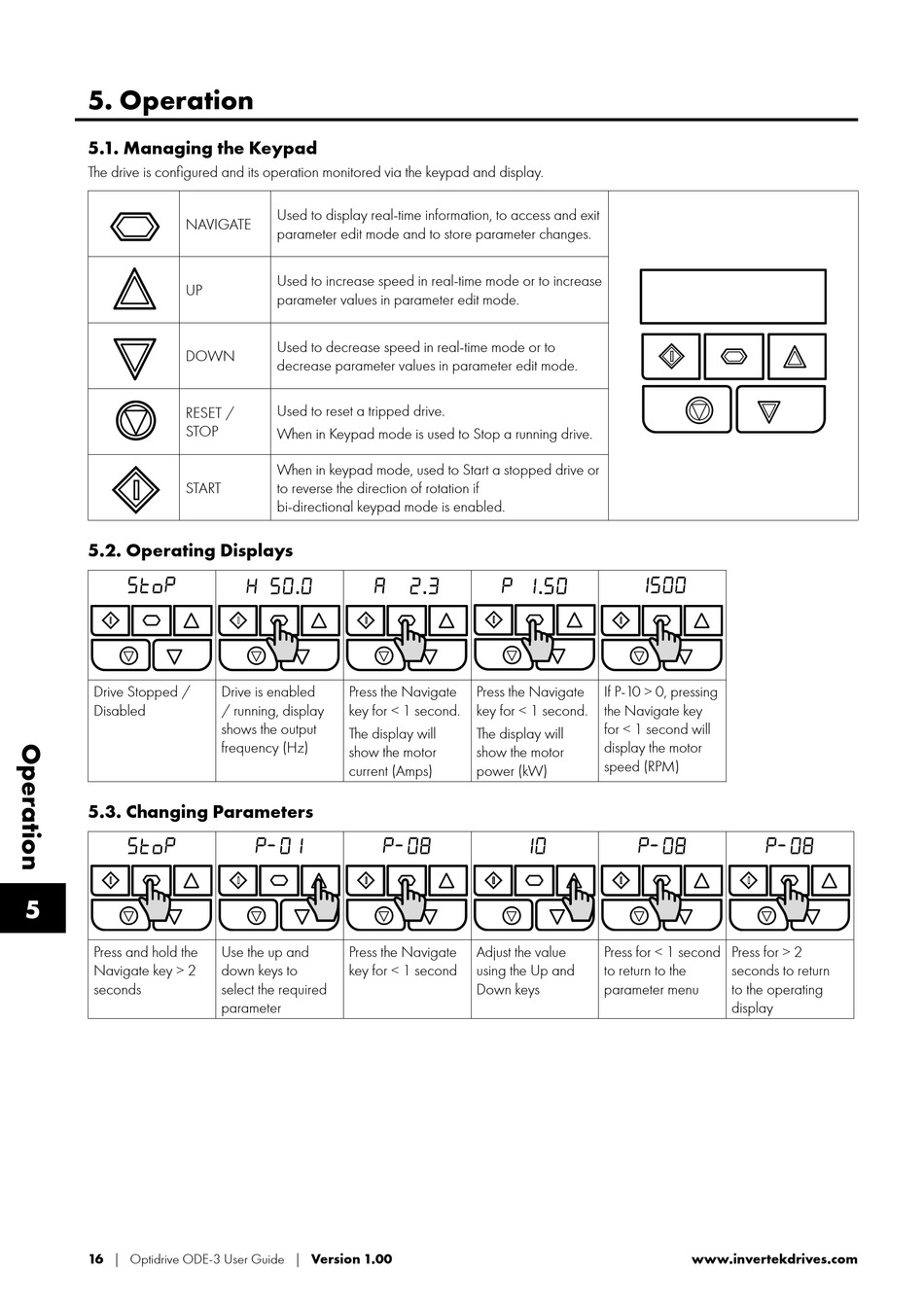

5. Operation

5.1. Managing the Keypad

The drive is configured and its operation monitored via the keypad and display.
NAVIGATE
UP
DOWN
RESET /
STOP
START

5.2. Operating Displays


Drive Stopped /
Disabled

5.3. Changing Parameters


5
Press and hold the
Navigate key > 2
seconds
16 | Optidrive ODE-3 User Guide | Version 1.00
Used to display real-time information, to access and exit
parameter edit mode and to store parameter changes.
Used to increase speed in real-time mode or to increase
parameter values in parameter edit mode.
Used to decrease speed in real-time mode or to
decrease parameter values in parameter edit mode.
Used to reset a tripped drive.
When in Keypad mode is used to Stop a running drive.
When in keypad mode, used to Start a stopped drive or
to reverse the direction of rotation if
bi-directional keypad mode is enabled.
       
Drive is enabled Press the Navigate
/ running, display key for < 1 second.
shows the output
The display will
frequency (Hz)
show the motor
current (Amps)
 
Use the up and Press the Navigate
down keys to key for < 1 second
select the required
parameter

   
Press the Navigate If P-10 > 0, pressing
key for < 1 second. the Navigate key
for < 1 second will
The display will
display the motor
show the motor
speed (RPM)
power (kW)
 
Adjust the value Press for < 1 second
using the Up and to return to the
Down keys parameter menu

Press for > 2
seconds to return
to the operating
display
