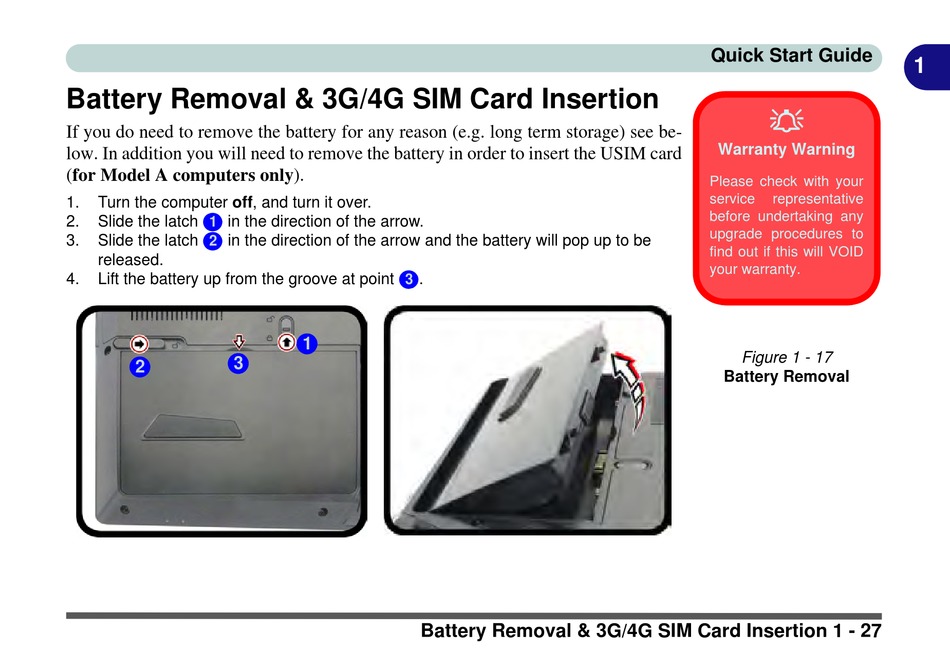

Battery Removal & 3G/4G Sim Card Insertion - EUROCOM SKY4XE 2 User Manual

Battery Removal & 3G/4G SIM Card Insertion
If you do need to remove the battery for any reason (e.g. long term storage) see be-
low. In addition you will need to remove the battery in order to insert the USIM card
(for Model A computers only).
1. Turn the computer off, and turn it over.
2. Slide the latch in the direction of the arrow.
1
3. Slide the latch in the direction of the arrow and the battery will pop up to be
2
released.
4. Lift the battery up from the groove at point
3
2
.
3
1
Battery Removal & 3G/4G SIM Card Insertion 1 - 27
Quick Start Guide

Warranty Warning
Please check with your
service representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.
Figure 1 - 17
Battery Removal
1
