Quick Start Guide
1
Warranty Warning
Please check with your
service
representative
before undertaking any
upgrade procedures to
find out if this will VOID
your warranty.

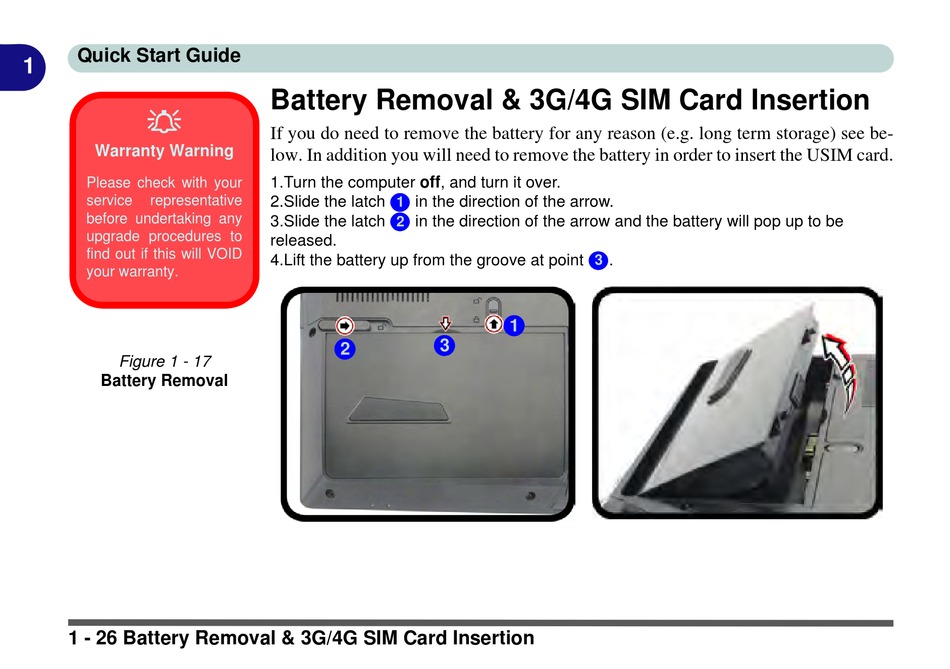

Figure 1 - 17
Battery Removal
1 - 26 Battery Removal & 3G/4G SIM Card Insertion
Battery Removal & 3G/4G SIM Card Insertion
If you do need to remove the battery for any reason (e.g. long term storage) see be-
low. In addition you will need to remove the battery in order to insert the USIM card.
1.Turn the computer off, and turn it over.
2.Slide the latch
in the direction of the arrow.
1
3.Slide the latch
in the direction of the arrow and the battery will pop up to be
2
released.
4.Lift the battery up from the groove at point
3
2
3
.
1
