Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and pliers .

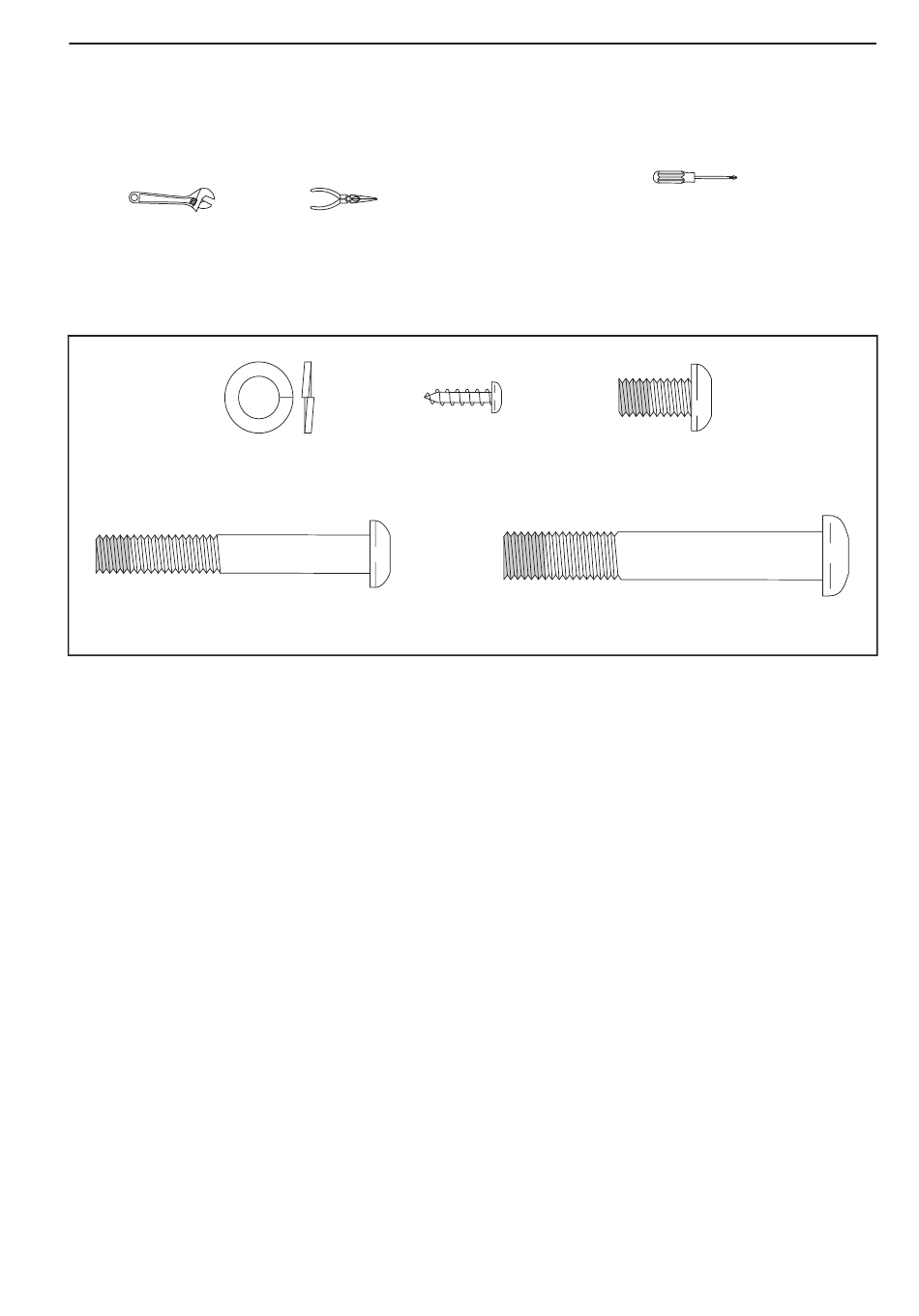

Use the drawings below to identify the small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The second number is
the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part is not in
the hardware kit, check to see if it has been preassembled.
M4 x 15mm
M8 Split M8 x 16mm Patch
Screw (48)–5
Washer (42)–3 Screw (34)–3
M8 x 60mm Patch Screw (30)–4 M10 x 70mm Patch Screw (33)–2
