MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the exercise cycle reg-
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of mild detergent. IMPORTANT: To
avoid damage to the console, keep liquids away
from the console and keep the console out of
direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 5 on page 8. If the handgrip pulse sen-
sor does not function properly, see step 5 on page 15.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal and the left shield must be
removed.
Using an adjustable wrench, turn the left pedal clock-
wise and remove it. Next, remove all of the screws
from both shields; there are two sizes of screws in
the shields—note which size of screw you remove
from each hole. Then, carefully remove the left shield.
All manuals and user guides at all-guides.com
17

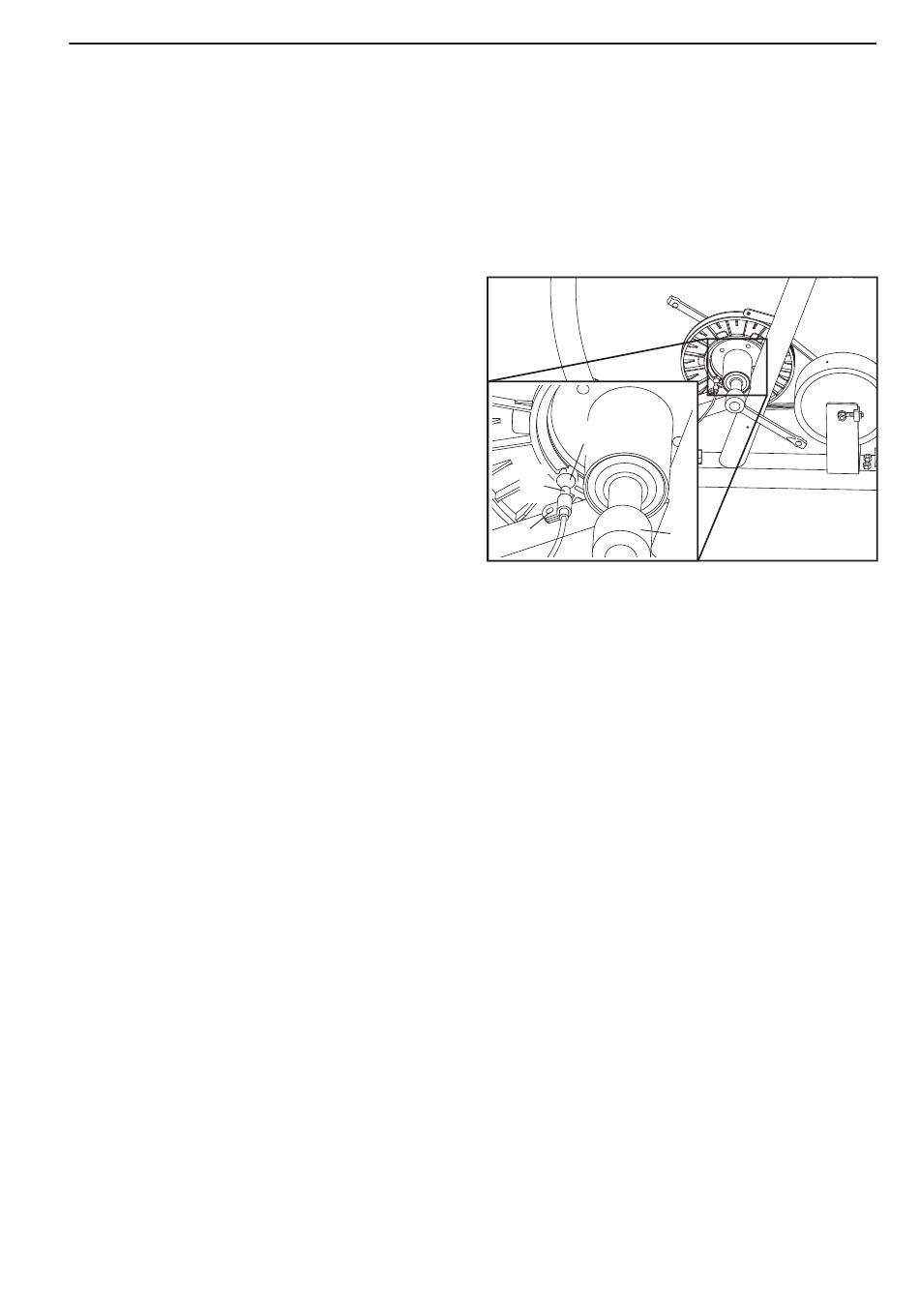

Locate the Reed Switch (39). Turn the Left Crank Arm
