Pro-Form 280 ZLX User Manual page 8

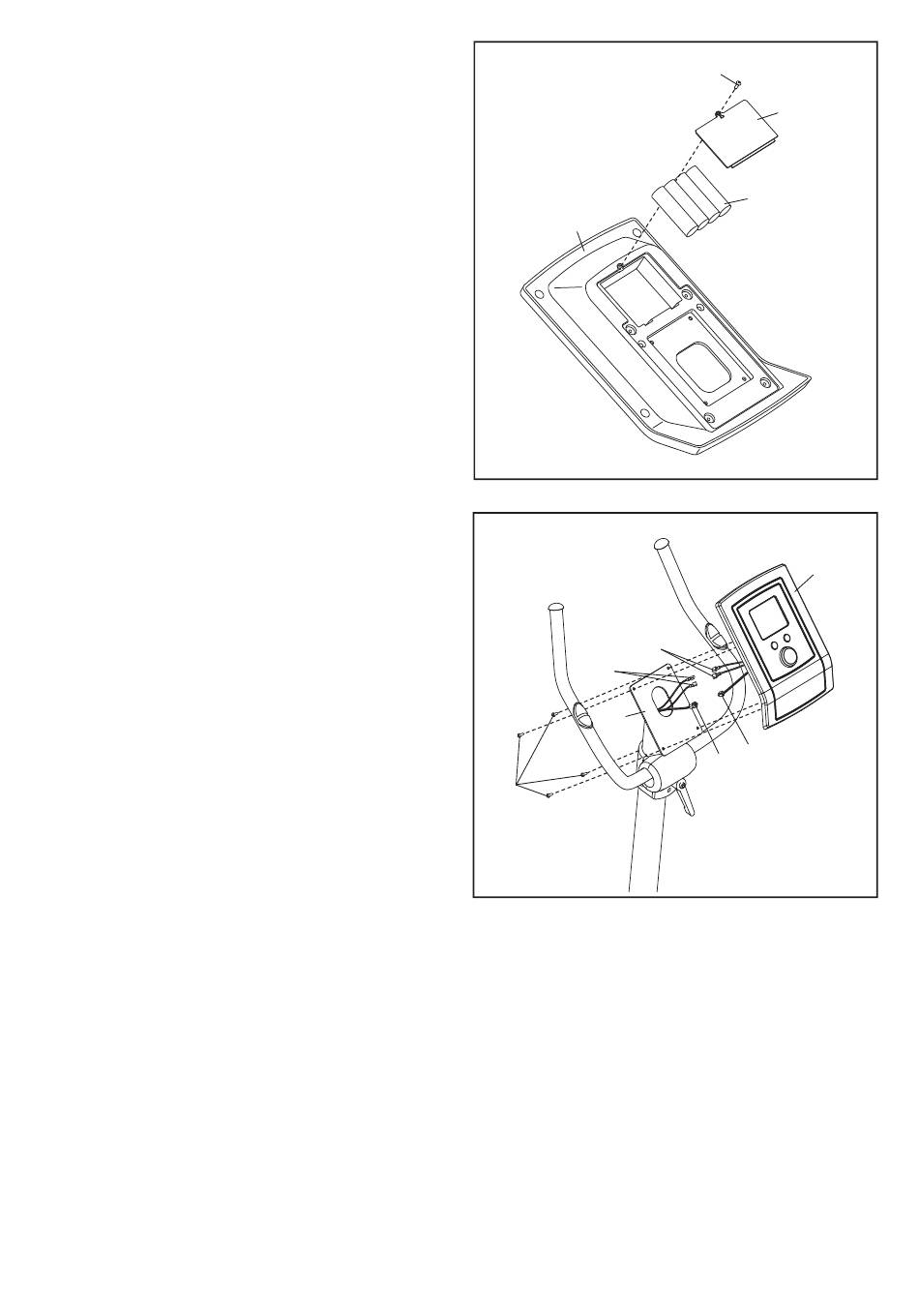

5. The Console (16) requires four AA batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic compo-
nents. Remove the screw, remove the battery
cover, and insert the batteries into the battery
compartment. Then, reattach the battery cover.
Make sure to orient the batteries as shown
by the diagram inside the battery compart-
ment.
6. While another person holds the Console (16)
near the Upright (13), connect the console wire
to the Upper Wire Harness (23). Next, connect
the console pulse wires to the Pulse Wires (59).
Insert the excess wire downward into the
Upright (13).
Tip: Avoid pinching the wires. Attach the
Console (16) to the Upright (13) with four M4 x
15mm Screws (48).
