Connection Diagram - CD Automation REVEX 1PH User Manual

REVEX
1PH from 30A to 40A

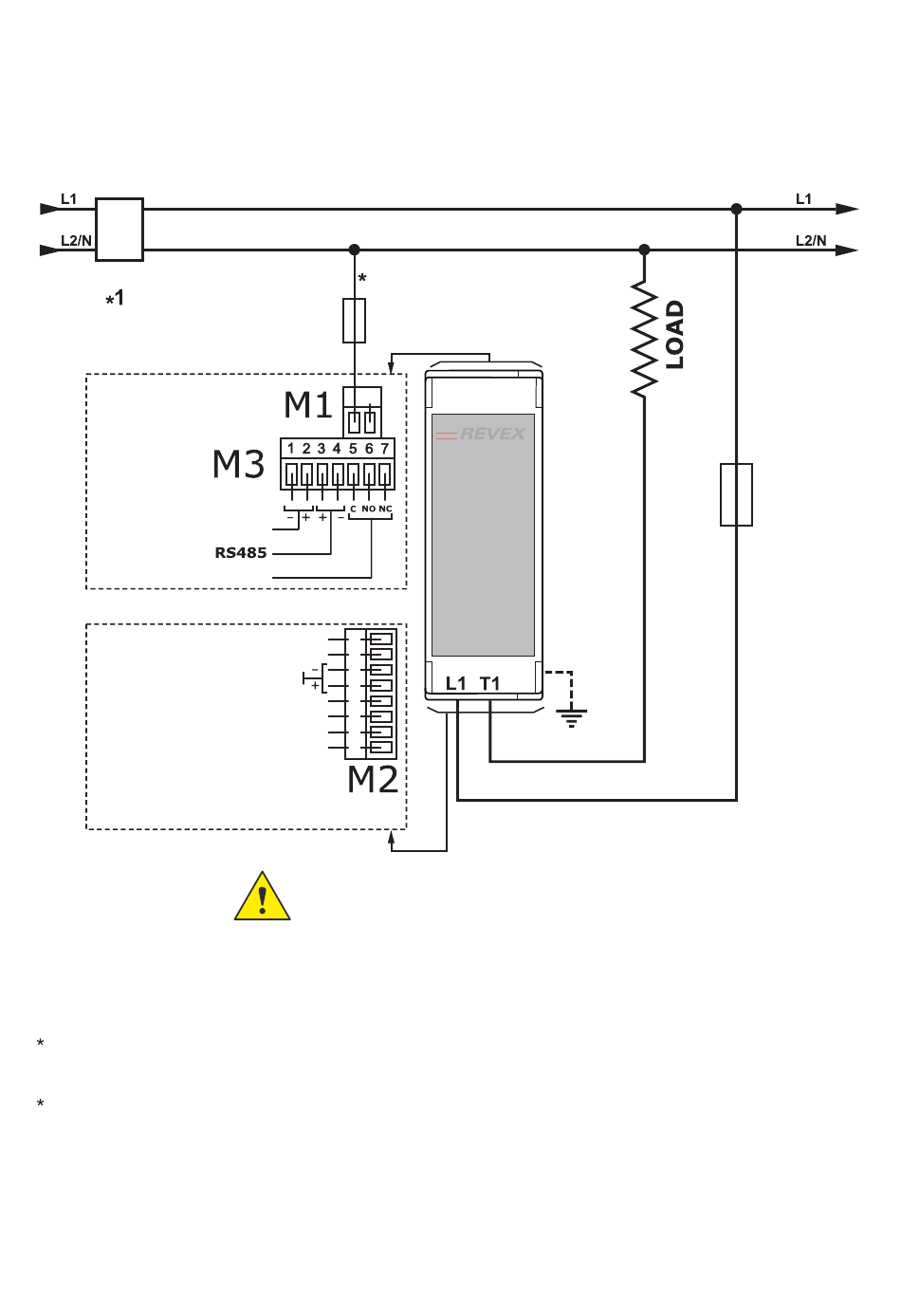

8.3 Connection Diagram

BRANCH CIRCUIT
PROTECTION
TOP VIEW
24V dc supply
Relay Out.
DOWN VIEW
NOTE:
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
The Fuse must be branch circuit protection.
2 Connect on the phase not controlled by the thyristor, L2/N on Schematic above.
Both terminals are connected internally and may be possible to use any one of them.
2
1A fuse
SYNC.
A B
15
Analog Input 2
14
+10V
13
Analog Input 1
12
Di1 Config.
11
DI2 Enable 10
9
COM I
GND 8
Warning: It is not possible to remove the M3 connector when
the unit is powered. Remove the AUX 24Vdc power supply
before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply
connected to the M3 terminal could damage the unit
24
User's manual
Extra
rapid
fuse
