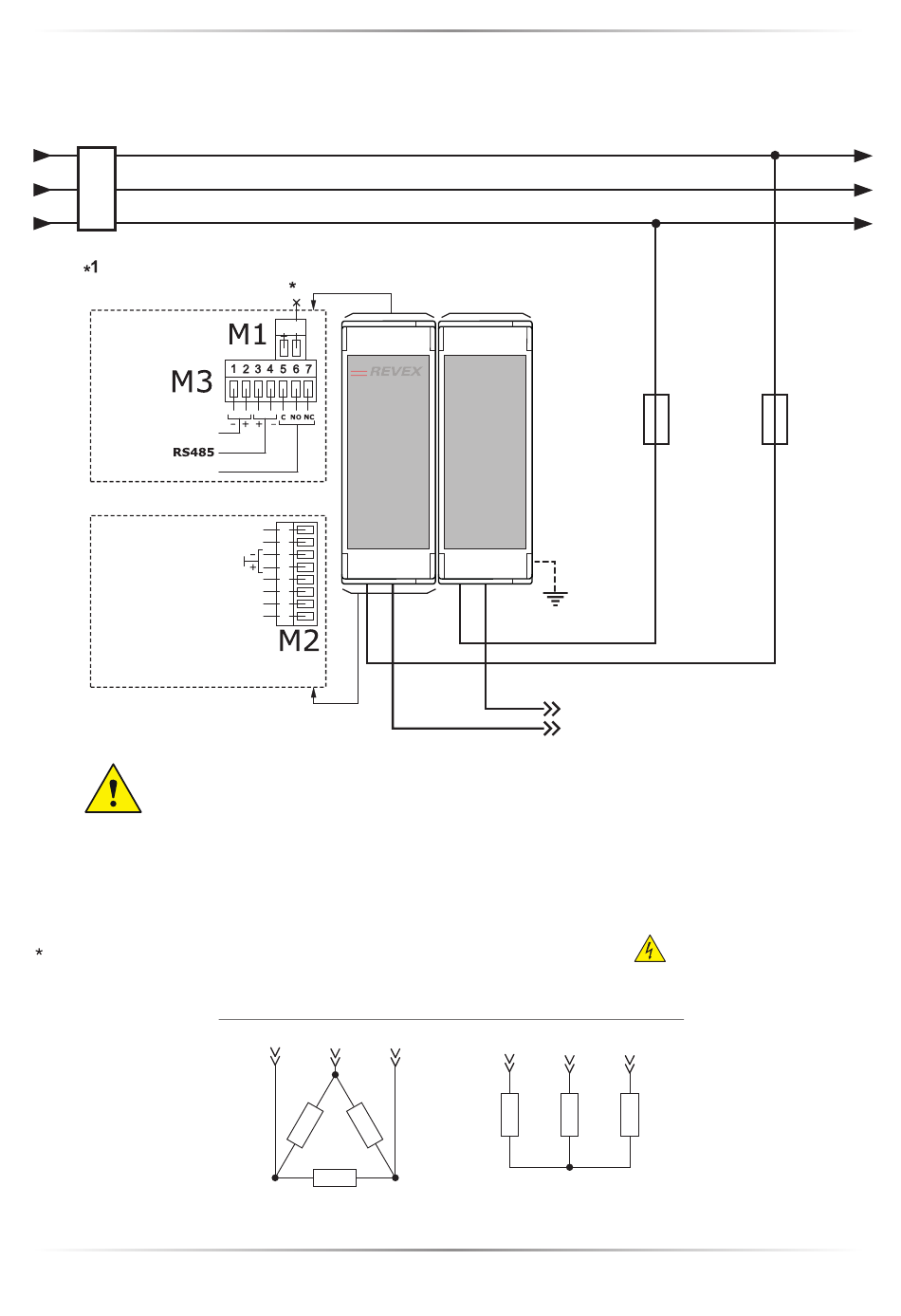

8.3 Connection Diagram

L1
L2
L3
BRANCH CIRCUIT
PROTECTION
TOP VIEW
24V dc supply
Relay Out.
DOWN VIEW
Analog Input 2
Analog Input 1
Warning: It is not possible to remove the M3 connector when the unit is powered.
Remove the AUX 24Vdc power supply before extracting the M3 connector.
Extracting the M3 connector with the AUX 24Vdc power supply connected to the M3
terminal could damage the unit
NOTE:
1 The user installation must be protecting by electromagnetic circuit breaker or by fuse isolator.
*
The Fuse must be branch circuit protection.
2 Synchronization signal, factory connection. ATTENTION HIGH VOLTAGE!
Both terminals are connected internally.
2
N.C.
SYNC.
A B
15
14
+10V
13
12 L1 T1
Di1 Config.
11
DI2 Enable 10
COM I 9
GND 8
T1 T2
Delta
L3 T3
Load Type
T3
T1
Star
