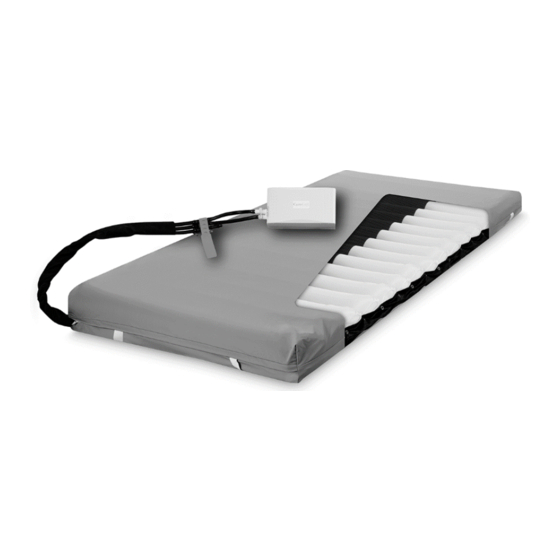

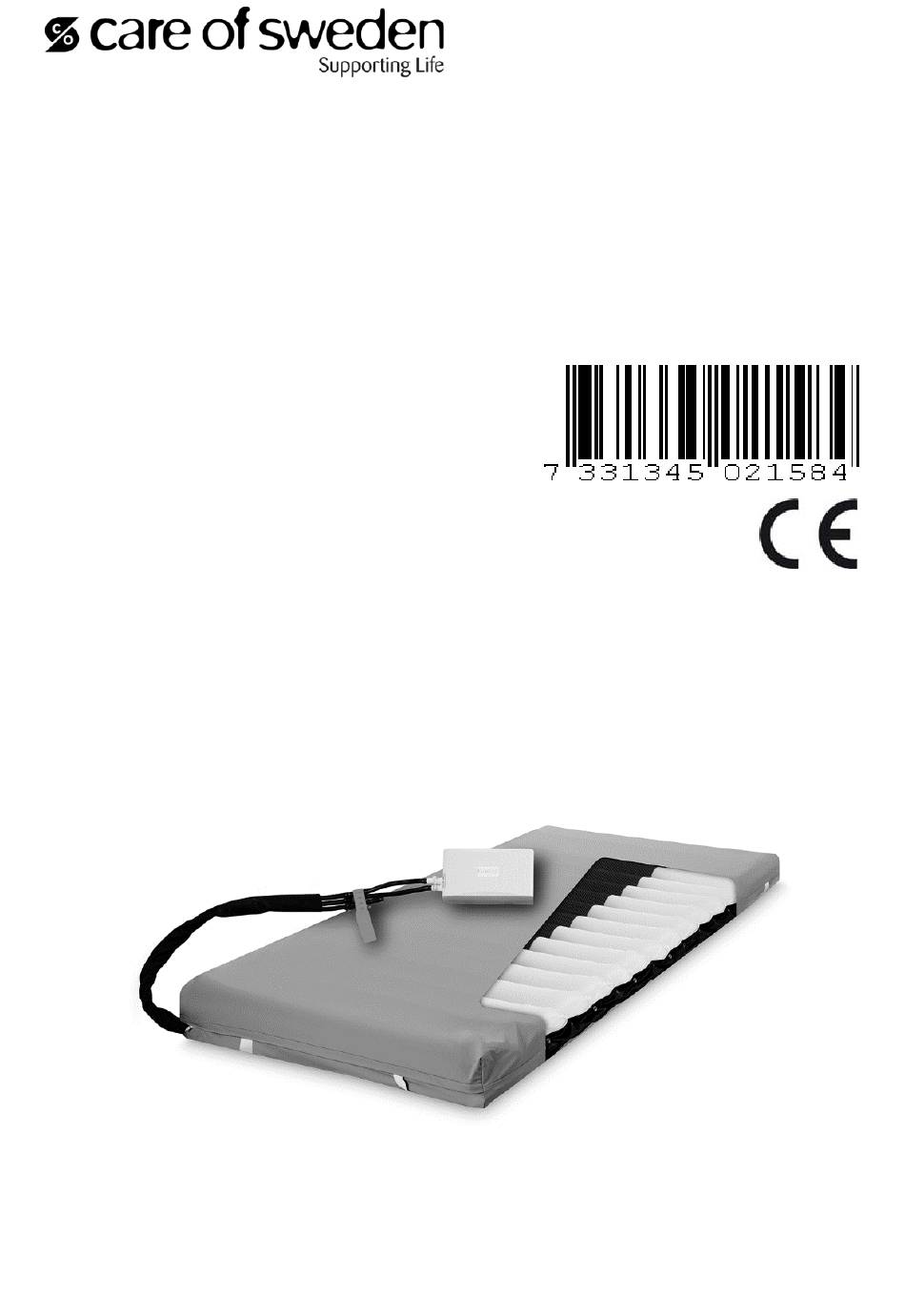

- Page 1 User manual 2015-08-10 ® CuroCell Nova CX13 ® CuroCell Nova CX19 Alternating pressure system Item number user manual: 95‐001062 ...
-
Page 2: Table Of Contents
Contents Important safety precautions 3 Introduction 4 Product description 5 Assembly/Installation 7 Operation 8 Cleaning and reconditioning 19 Storage 12 Maintenance 12 Troubleshooting 13 Technical description 14 Spare parts 16 Options and accessories 17 Warranty 18 Other information 19 2 ... -
Page 3: Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS Read all instructions prior to use Warning! To minimize the risk of fire, electric shocks or bodily injury: 1. The product must only be used for its intended purpose as described in this manual. The product may not be combined, assembled or repaired with other parts (e.g. pump and mattress), accessories or spare parts other than those described in this manual or other documentation from Care of Sweden. 2. Do not use the product in wet rooms or where there is a risk of the pump coming into contact with water or another liquid. Never handle a pump that has come into contact with water/liquid. Pull the plug out of the electrical socket immediately and send the product to an authorized service technician for servicing. 3. DO NOT USE in the vicinity of or in contact with fire sources/hot surfaces, such as fire, burning cigarettes or hot lamps. Although the product has undergone fire testing, it could become damaged if it comes into contact with fire sources. 4. Position and use the product in a manner that prevents it from becoming trapped or ... -
Page 4: Introduction
1. Introduction CuroCell® air mattresses operate according to the alternating pressure principle, a technique that is well proven and been used for a long time. Alternating pressure is when the pressure regularly alternates between the mattress cells to replicate body movement. Variable pressure cycles are set up where there is little or no pressure. This is optimal for skin improvement or to prevent skin damage. Always read the user manual prior to use. 1.1 General information This CuroCell® mattress is a medical device in accordance to MDD 93/42/EEC. According to statutory regulations made by the authorities regarding medical devices, the manufacturer is required to report all accidents or incidents involving there products. We would be very grateful for all information involving accidents or incidents relating to our products, by reporting them immediately to us, here at Care of Sweden. The system has been tested and approved according to the following standards: IEC 600601‐1, IEC 60601‐1‐2, SS‐EN ISO 12182, SS‐EN ISO 14971, SS‐EN ISO 10993, EN 597‐1, EN 597‐2, EN 14126. 1.2 Intended use CuroCell® Nova CX is an alternating pressure mattress system that can be used in all kinds of caring environments to prevent pressure ulcers, as well as treatment up to category 2 pressure ulcers. It is available in two versions, as an overlay (CuroCell® Nova CX13) or as a replacement mattress (CuroCell® Nova CX19). We recommend that position changes are made regularly. The time interval must be evaluated by the responsible personnel, depending on the patient´s status diagnosis and general condition. The mattress is meant for use for persons of a recommended minimum length of 120 cm. The recommended user weight is up to 150 kg. The mattress should only be used lying in the lengthwise direction on the mattress with the feet at the end marked with the feet symbol. The mattress must always be cleaned between patients. ... -
Page 5: Product Description
NOTE! For certain patients, such as amputees, are the recommended minimum weight not valid. These users may however have other requirements as the entire mattress is not being loaded. Please refer to sections 4.2 and 4.3 for operating control. When used together with positioning pillows, read the user’s manual carefully to ensure correct positioning of the patient. If you are using this product with an evacuation sheet, it is the user’s responsibility to ensure that it is safe to use for evacuation. Be careful when using bed rails or other protection on the bed so that the mattress does not become trapped or damaged. The mattress must not be lifted with a person lying on it or used for any other type of transport other than a possible evacuation using an evacuation sheet. This mattress is unsuitable for use during x‐ray examinations because of the risk of blurred images or artefacts that may lead to diagnostic errors. ... - Page 6 Tubing system CuroCell Nova CX13 3 static head cells. If the product is fitted with ventilated cells, they are located here (9 cells). R CuroCell Nova CX19 with integrated foam core and tubing system If the product is fitted with ventilated cells, they are located here (9 cells). 3 static head cells. Foam core R 2.2 Pump 6 ...
-
Page 7: Assembly/Installation
= Mode 1 = Alternating mode, every other cell is inflated (not the three static head cells). The pressure change between cells, a cycle is ten minutes. We recommend that this mode is used by default. = Mode 0 = Static mode, the same pressure in all cells. When the Static button is pressed, the alternating process is terminated and the pressure between the cells evens out. The function can be used in association with patient care, repositioning/transferring in and out of bed, or as a treatment mode. Power off/on (1/0). / Suitable air pressure is set with the comfort dial (1‐8). Guidelines based on user weight is given in the table on the pump. NOTE! In all uses where the head end of the bed is raised, the pressure must be increased at least one (1) step. Lights when the mattress is ready for use. Alarms for low pressure. In order to solve it see chapter 8, troubleshooting. 3. Assembly/Installation When unpacking the mattress, check that none of the parts are damaged. In the event of damage, contact the manufacturer or your local dealer before using the product. 1. Place the mattress on the existing mattress and fasten it with the elastic bands around the underlying mattress. If the mattress has a built‐in foam pad (CuroCell® Nova ... -
Page 8: Operation
2. Hang the pump at the foot end of the bed or place it on a flat, sturdy surface. Route the power cord so that there is no risk of it causing someone to trip, being run over by the bed wheels or getting crushed when the bed is raised or lowered. If a cable holder is used (optional): open the snaps, position the power cord in the pocket and close the snaps. 3. Connect the air tubes from the mattress to the side of the pump. There is an audible "click" sound when the connectors are properly attached. 4. Check that the switch on the pump is in the “0” position (Off). Connect the plug to an approved electrical socket. (220 V). 4. Operation Note! Always read the user manual prior to use. 4.1 Start‐up 1. Start the pump by pressing “1” (On). ... - Page 9 4.2 Choice of programs There are two different programs, see section 2.3 for details. We recommend alternating mode by default. 4.3 Comfort setting The air pressure in the mattress can be adjusted according to the patient´s desire for comfort. Always consult the prescriber or other authorised personnel for the appropriate setting. 1. Use the comfort dial to set a suitable air pressure based on the table on the pump. 2. When the lamp, the symbol , lit the mattress is ready for use. NOTE! If the head of the bed is being raised, pressure must be increased at least one (1) level. When only parts of the mattress are under load, e.g. if the patient is an amputee, the pressure should be increased 1 or 2 levels. Hand check the pressure at all times. Please refer to section 4.4. ...
-
Page 10: Cleaning And Reconditioning
4.6 Low pressure At an abnormally low air pressure in the mattress, the LED lights on the symbol . The lamp goes out when the pressure returned to normal. Please refer to chapter 8 for troubleshooting. WARNING! If the air pressure remains low, check the mattress and tubes for damage. Repair as necessary or contact Care of Sweden or one of its authorised repair technicians. 4.7 Transport function If the patient must be moved in bed, the tubes can be connected together (detached from the pump) and the mattress put in “transport mode”. This mode should only be used for short periods of time. 4.8 Heel function (with check valves, option) This feature allows pressure relief of the heels. Disconnect the air cell which is directly under the heel. This air cell will then be emptied for air. Press the bottom (1) and disconnect the plug. Let the cell remain in its place in the mattress. The air cell is activated by assembling the connection again. 1 5 Cleaning and reconditioning ... - Page 11 max 1 %. If using a different agent, choose one that does not affect the plastic of the pump housing. MATTRESS COVER Covers can be wiped off with a mild cleaning solution for this purpose such as: alcohol with or without tensides, Isopropanol 70 %, oxidating solutions or chlorine max 1 %. Excrements and blood spots must be removed immediately with cold water. Carefully follow local instructions and usage instructions for the cleaner. Multi‐layer covers should be divided before washing. Wash with like colors. Chlorine and phenol‐based cleaners could have a negative impact on the PU surface and should be avoided. If chlorine is used, we recommend a mixture of max. 1%. INNER COVER AND DISTANCE FABRIC (accessories) Clean the affected area with a mild cleaning solution for this purpose such as: alcohol with or without tensides, Isopropanol 70 %, oxidating solutions or chlorine max 1 %. 5.2 Reconditioning PUMP See section 5.1 for instructions. MATTRESS 1. Disconnect the tubes and let the air out, also open the CPR valve. 2. Remove the cover. See instructions in chapter 5.1 for cleaning covers. If the product is equipped with a foam core this should be removed and cleaned separately. 3. Move the mattress to a clean area, which is suitable for cleaning. 4. Wipe off the cells, all tubes and the CPR valve with a mild cleaning solution for this purpose ...
-
Page 12: Storage
NOTE! Check the hygiene cover each time the product is cleaned. If damaged, it must be replaced or repaired. Also check the pump, tube connectors and power cord during cleaning. Damaged parts must be replaced or repaired. 6. Storage The mattress and pump are best stored in the product bag (optional extra). Handle the packed product with care. Do not put anything heavy on top of it. 7. Maintenance 7.1 General 1. Check the power cord and plug for damage and scratches. 2. Check that the mattress cover is intact and that the cover and air cells are correctly assembled. 3. Check that the air flow alternates between each outlet on the side of the pump. 4. Check for damaged or pinched tubes and connectors. Contact the manufacturer or your local dealer for spare parts. 7.2 Changing fuses 1. P ull the plug out of the electrical socket before replacing fuses. 2. R emove the cover for the fuses with a screwdriver. Pull out ... -
Page 13: Troubleshooting
8. Troubleshooting Problem Solution Pump does not start Check that the power cord is connected to the power socket. Check the fuses. No air in head cells When the mattress is inflated, the 3 static head cells are filled last. Alarms for low pressure (light) Check that the air tubes are connected to the pump. = mattress loses air Check that the CPR valves are closed. Open the mattress and look for any leakage. Patient is bottoming Comfort knob may be set up. Adjust the pressure slightly (“falls through”) and wait a few minutes. ... -
Page 14: Technical Description
9. Technical description 9.1 Technical specification PUMP SPECIFICATIONS Model CuroCell® Nova Voltage 220 V‐240 V, 50‐60 Hz Power consumption 0.05 A Type of fuse T1AL, 250 V Cycle periods 10 min Dimension (LxWxH) 25 x 13.5 x 9.5 cm Weight 1.8 kg Surroundings Temperature Operation: 10°C 40°C ˜ Storage: ‐15°C 50°C ˜ Shipping: ‐15°C ... - Page 15 9.3 Symbol Definitions XXXX‐XX‐XX Article No Manufacturer Year‐Month‐Day Foot placement Read the user manual CE marked acc. to Group of function Recycling MDD 93/42/EEC Recommended user weight Not in domestic refuse, Patient information Directly on bed base – category follow recycling instructions Counteract shear force Place on top of Heel function Do not wash ...
-
Page 16: Spare Parts
10. Spare parts For CuroCell® Nova CX13 Art. no. Description Size 295‐080200 Cover Olivia, grey, zip on three sides 80x200 cm 295‐080210 Cover Olivia, grey, zip on three sides 80x210 cm 295‐085200 Cover Olivia, grey, zip on three sides 85x200 cm 295‐085210 Cover Olivia, grey, zip on three sides 85x210 cm 295‐090200 Cover Olivia, grey, zip on three sides 90x200 cm 295‐090210 Cover Olivia, grey, zip on three sides 90x210 cm 295‐105200 Cover Olivia, grey, zip on three sides 105x200 cm 295‐120200 Cover Olivia, grey, zip on three sides 120x200 cm For CuroCell® Nova CX19 (mattress with built‐in foam pad) Art. no. Description Size CC‐906010 Top part Olivia, grey 80x200 cm CC‐906011 Top part Olivia, grey 80x210 cm ... -
Page 17: Options And Accessories
11. Options and accessories 11.1 Options Comfort fabric (only CuroCell® Nova CX19) For patients who are sensitive for the fluctuations in the mattress a padded inner cover can be placed over the air cells to increase comfort. Heel section Options available to relieve sensitive heels. Emptying the air cell with release valve. NOTE! These options are only available with new orders. Cable holder (only CuroCell® Nova CX19) A pocket along one long side of the mattress that holds the power cord in place to minimise the risk of tripping over the cord or the cord becoming trapped under the wheels of the bed. NOTE! This option is only available with new orders. Sturdy transport bag Transport and storage bag. Sheet holder (only CuroCell® Nova CX19) Specialised clips to which the sheet can be attached. Six required per mattress. Ventilated cells (Low‐Air‐Loss) Micro‐ventilation in 9 of the cells. 11.2 Accessories For CuroCell® Nova CX13 Art. no. Description Size CC‐9093 Sturdy transport bag 80/85/90 cm CC‐9094 Sturdy transport bag 105/120 cm ... -
Page 18: Warranty
11.3 Other accessories To ensure the best level of comfort, we recommend use of accessories from Care of Sweden since our products are designed to work well together. Please contact Care of Sweden or your local dealer for accessories or more information on our products. 12. Warranty 12.1 Scope This CuroCell® system is covered by a 2‐year warranty for manufacturing defects. The warranty does not apply to normal wear and tear or product impairment or damage stemming from negligence or improper handling/care. 12.2 Service and repairs This CuroCell® mattress is a medical device, in accordance with MDD 93/42/EEC, that is used as an aid in preventing and treating pressure ulcers. For this reason, we recommend that the pump be regularly serviced and inspected to maintain functionality and performance. Like other technical devices, a pump that is properly cared for works better and lasts longer. Service and maintenance must always be performed by Care of Sweden or one of its authorised technicians. Only use spare parts that have been approved by Care of Sweden. Use of non‐approved spare parts invalidates the warranty. A warranty claim must be submitted to Care of Sweden before the product is returned. Please contact Care of Sweden or your local dealer if you have questions regarding warranty and service. 12.3 Life expectance This product´s expected life is estimated to be 3 years. 18 ... -
Page 19: Other Information
13. Other information 13.1 Disassembly and recycling Except for certain parts of the pumps, energy recovery is possible for almost all material in CuroCell products through incineration in waste incineration facilities. ® Pump: A used CuroCell pump must not be disassembled. It must instead be taken to a recycling ® centre and sorted as electronic waste. Mattress: A used CuroCell mattress must be taken to a recycling centre and sorted as combustible ® waste. For more information, please contact Care of Sweden or your local dealer. 13.2 Returns and complaints Complaints are to be reported to the supplier. Return of a product shall follow the supplier’s instructions and can only be done after the complaint has been reported. Damages due to the transportation should be reported to the transportation agent. 19 ... - Page 20 Manufactured by Contact: Phone: + 46 771 106600 Fax: + 46 325 12840 Email: info@careofsweden.se Internet: www.careofsweden.com Address: Care of Sweden AB P.O. Box 146 SE‐514 23 Tranemo SWEDEN Visit address: Fabriksgatan 5A SE‐514 33 Tranemo SWEDEN Cargo address: Byns väg 4A ...
