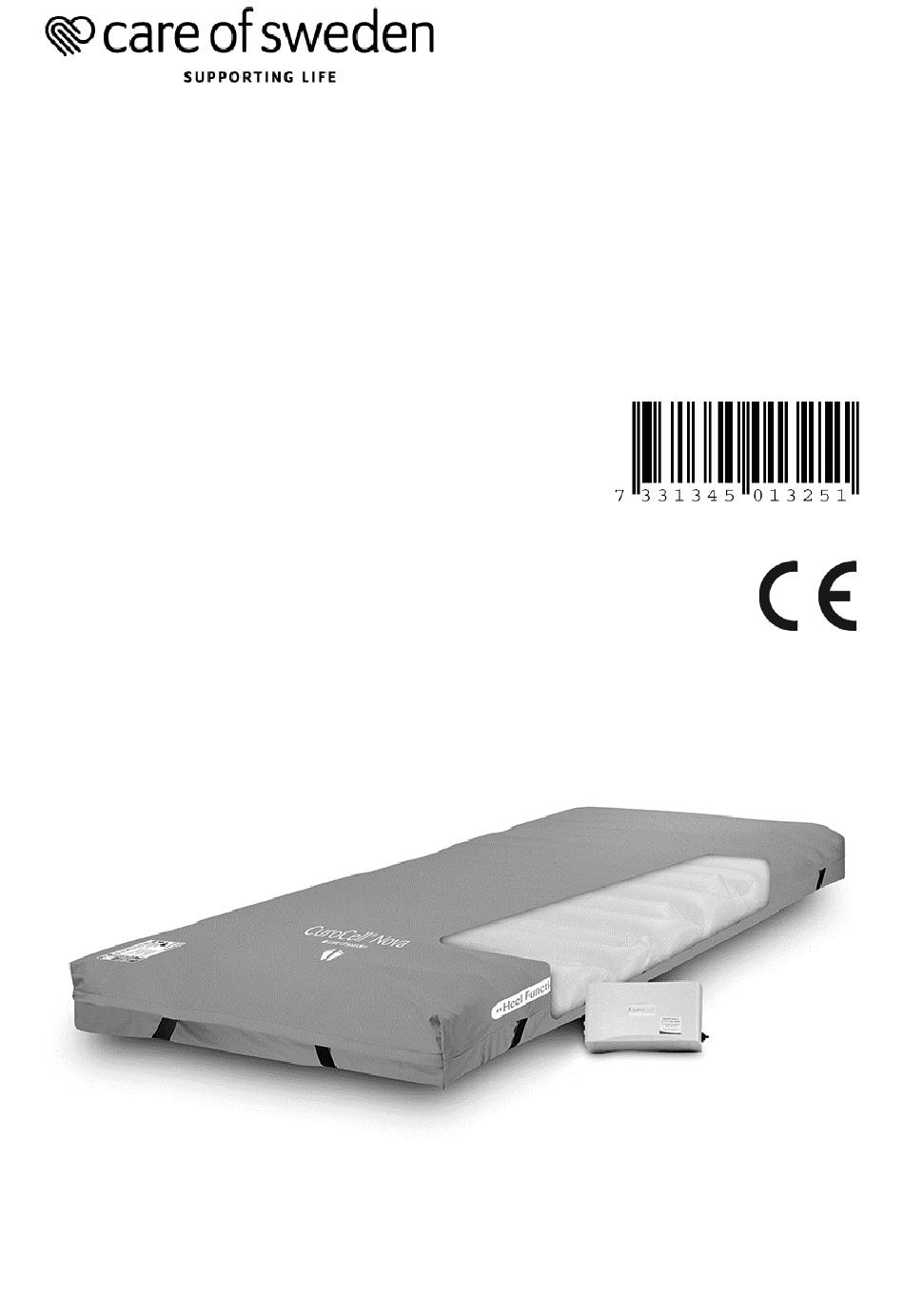

- Page 1 User manual 2021-03-04 CuroCell ® Nova Alternating pressure mattress Item number user manual: 95-001014...
-
Page 2: Table Of Contents
Contents Important safety precautions Introduction Product description Assembly/Installation Operation Cleaning and reconditioning Storage Maintenance Troubleshooting Technical description Spare parts Options and accessories Warranty Other information Own notes... -
Page 3: Important Safety Precautions
Care of Sweden. 2. Do not use the product in wet rooms or where there is a risk of the pump coming into contact with water or another liquid. -
Page 4: Introduction
We would be very grateful for all information involving accidents or incidents relating to our products, by reporting them immediately to us, here at Care of Sweden. The system has been tested and approved according to the following standards: IEC 600601-1, IEC 60601-1-2, SS-EN ISO 12182, SS-EN ISO 14971, SS-EN ISO 10993, EN 597-1, EN 597-2. - Page 5 Mattress guide This guide provides guidance to personnel and prescribers when choosing a mattress from Care of Sweden. CuroCell Nova is a mattress in function group C. This information can be obtained from our website, www. careofsweden.com, or ordered from...
-
Page 6: Product Description
2. Product description 2.1 Pump and mattress 1. Mattress 2. CPR (rapid deflation) 3. Tubes 4. Pump connector 5. Pump Air cells Heel function 2.2 Pump 1 Connection tubes 3 Power cord 5 Suspension hook 2 On/Off 4 Fuses (2) 6 Filter... - Page 7 2.3 Pump functions – control panel Button for switching between static and alternating function. Mode 1 = The pressure change between cells, in a cycle of ten minutes. We recommend that this mode is used by default. Mode 0 = Same pressure in all cells. In static mode the alternatating cycle is discontinued and the pressure is equalized over the cells.
-
Page 8: Assembly/Installation
3. Assembly/Installation When unpacking the mattress, check that none of the parts are damaged. In the event of damage, contact the manufacturer or your local dealer before using the product. 1. Place the mattress on the existing mattress and fasten it with the elastic bands around the underlying mattress. -
Page 9: Operation
4. Operation Note! Always read the user manual prior to use. 4.1 Start-up 1. Start the pump by pressing “1” (On). 2. Air starts to fill up the mattress. It takes about 20 minutes to inflate the mattress. 3. If necessary the user can lie on the mattress even when not inflated, in this case, the underlying surface will carry the load. - Page 10 . The lamp goes out when the pressure returns to normal. Please refer to chapter 8 for troubleshooting. WARNING! If the air pressure remains low, check the mattress and tubes for damage. Repair as necessary or contact Care of Sweden or one of its authorised repair technicians.
-
Page 11: Cleaning And Reconditioning
5 Cleaning and reconditioning It is important to follow the instructions below before using the product for another user. Consult the hygiene responsible or the supplier for help and instructions when unsure. 5.1 Cleaning PUMP WARNING! Do not open the pump housing – risk of electric shock. Service and maintenance must be performed by authorised technicians. -
Page 12: Storage
5.2 Reconditioning PUMP See section 5.1 for instructions. MATTRESS 1. Disconnect the tubes and let the air out, also open the CPR valve. 2. Remove the cover. See instructions in chapter 5.1 for cleaning covers. If the product is equipped with a foam core this should be removed and cleaned separately. 3. -
Page 13: Maintenance
7. Maintenance 7.1 General 1. Check the power cord and plug for damage and scratches. 2. Check that the mattress cover is intact and that the cover and air cells are correctly assembled. 3. Check that the air flow alternates between each outlet on the side of the pump. 4. -
Page 14: Troubleshooting
Can be remedied by putting the pump on a flat, steady surface or by placing a towel between the pump and bed. If your questions are not answered by the above information, please contact Care of Sweden or your local dealer for further assistance. -
Page 15: Technical Description
85x200x13 cm Weight 4 kg NOTE: Care of Sweden retains the right to modify the product specification at any time. WARNING! Follow operating and maintenance instructions carefully to prevent injury, as well as damage to the product or other equipment. - Page 16 9.3 Symbol Definitions XXXX-XX-XX Article No Manufacturer Year-Month-Day Foot placement Read the user manual CE marked acc. to Medical Group of function Recycling Device Regulation MDR (2017/745) Do not dispose of with Recommended user weight User information Place on top of household waste;...
-
Page 17: Spare Parts
Hygienic cover Steel CC-8217 Fuse (set of 2) CC-8202 Filter If other spare parts are needed, please contact Care of Sweden or your local dealer for further assistance. 11. Options and accessories 11.1 Optionals PRIMA 6 An elevating pad that is placed underneath a mattress overlay, for example CuroCell®... -
Page 18: Warranty
The scope of the servicing and the servicing intervals will depend on how often and to what degree the product is used. Service and maintenance must always be performed by Care of Sweden or one of its authorised technicians. Only use spare parts that have been approved by Care of Sweden. Use of non-approved spare parts invalidates the warranty. -
Page 19: Own Notes
14. Own notes... - Page 20 SE-514 23 Tranemo SWEDEN Visit address: Fabriksgatan 5A SE-514 33 Tranemo SWEDEN Cargo address: Byns väg 4A SE-514 33 Tranemo SWEDEN Supplied by Care of Sweden and CuroCell are trademarks of Care of Sweden AB © Care of Sweden AB, 2021...
