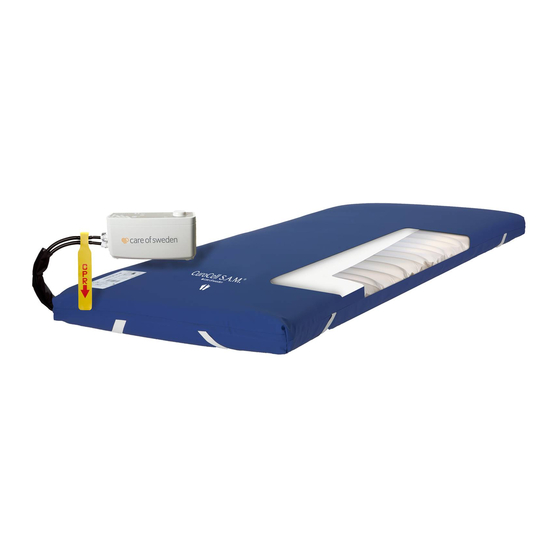

Care of Sweden CuroCell S.A.M. PRO User Manual
Static antidecubitus mattress
Hide thumbs
Also See for CuroCell S.A.M. PRO:
- User manual (24 pages) ,
- Instructions for use manual (20 pages)
Related Manuals for Care of Sweden CuroCell S.A.M. PRO
Summary of Contents for Care of Sweden CuroCell S.A.M. PRO

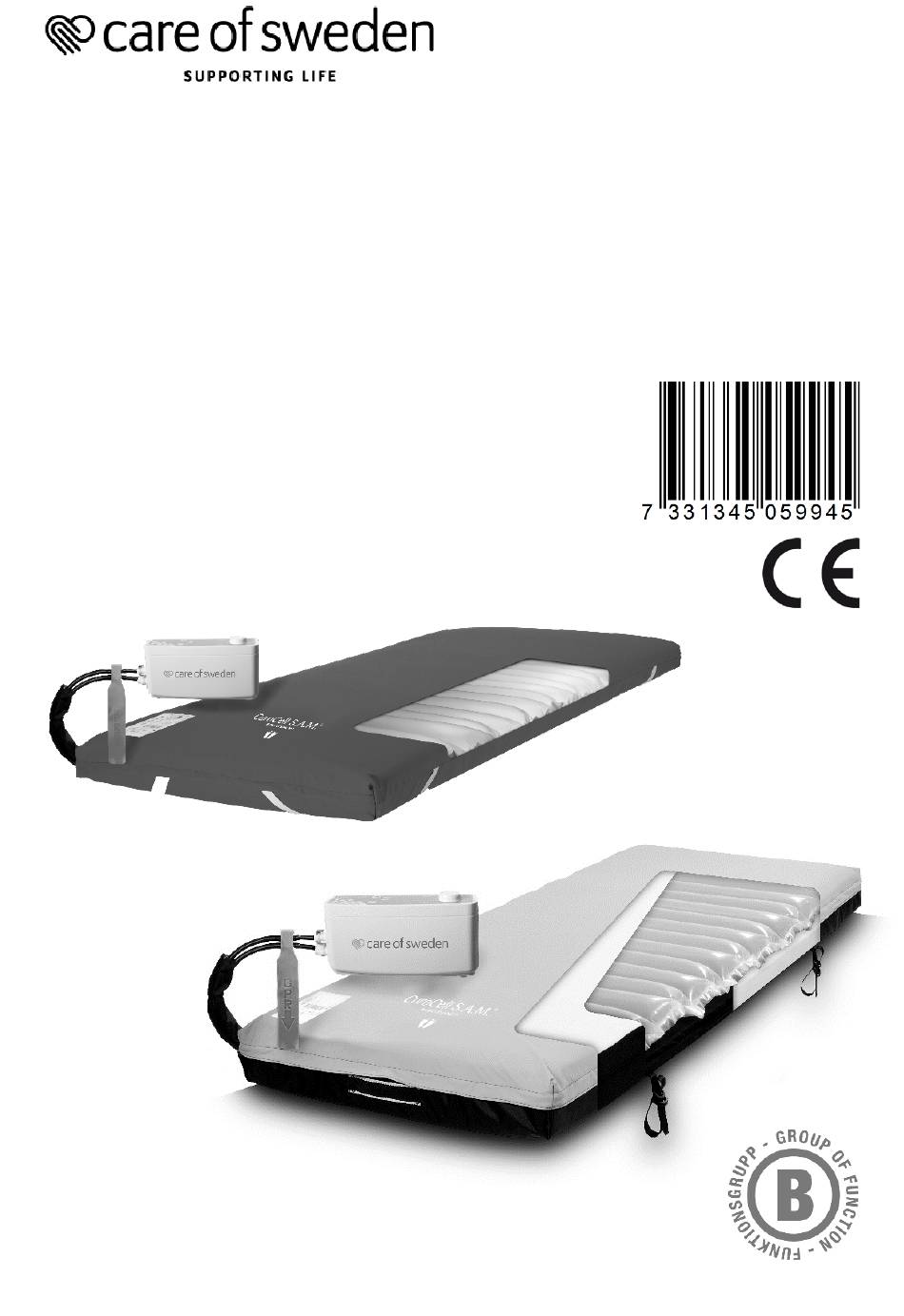

- Page 1 User Manual 2018-10-17 CuroCell S.A.M. ® Static Antidecubitus Mattress Item number user manual: 95-001410-EN0000...
-
Page 2: Table Of Contents
Contents Important safety instructions Introduction Product description Installation and start-up Cleaning and reconditioning Storage Maintenance Troubleshooting Technical description Spare parts Options and accessories Warranty Other information Your own notes... -
Page 3: Important Safety Instructions
The product may not be combined, assembled or repaired with other parts (e.g. pump and mattress), accessories or spare parts other than those described in this manual or other documentation from Care of Sweden. 2. Do not use the pump in wet rooms where there is a risk of the pump coming into contact with water or another liquid. -
Page 4: Introduction
We would be very grateful for all information involving accidents or incidents relating to our products, by reporting them immediately to us, here at Care of Sweden. This system has been tested and approved according to the following standards: EN 60601-1, SS-EN ISO 12182, SS-EN ISO 14971, SS-EN ISO 10993, EN 597-1, EN 597-2 and EN 14126. -
Page 5: Product Description
1.4 Other information Action plan for pressure ulcers To achieve the best possible result for this product it is recommended that a well-planned and well-structured working environment be used. In our guideline "Action plan" you will find examples which can be applied and put into practice when using our products. The Mattress Guide This practical guide gives you as a care giver, help in choosing the correct mattress from the Care of Swedens range. - Page 6 2.2 Pump functions – Control panel Comfort setting knob – Comfort settings The comfort setting knob adjusts the air pressure in the mattress. When the knob is turned clockwise, the air supply and pressure in the mattress increase. When the knob is turned counter clockwise, the air supply and pressure in the mattress decrease.
- Page 7 2.3 Mattress 1. Cells/air bladder 2. Tubes 3. Tube holder 4. CPR (Rapid deflation) 2.4 Other parts Hygiene cover Inner cover Soft (accessory CuroCell S.A.M. PRO) ® Transport and Storage Bag (accessory) Integrated foam core (only CuroCell S.A.M.® PRO CF16)
-
Page 8: Installation And Start-Up
3. Installation and start-up 3.1 Installation When unpacking, check that no parts are damaged. If any damage is found, contact Care of Sweden before using the product. 1. Place the mattress on top of an existing mattress. If possible, secure it by pulling the elastic straps on the bottom over the corners of the underlying mattress. - Page 9 NOTE: • When the head end of the bed is raised, the pressure should be increased by 25 kg. • When only part of the mattress is under load, e.g. for amputee users, the pressure should be increased (by 1–2 steps). Then perform a hand check (see section 3.4). •...
-
Page 10: Cleaning And Reconditioning
4. Cleaning and reconditioning It is important to follow the instructions below before the product is used for another user. Consult your hygiene manager or the supplier for help and instructions if you are unsure. 4.1 Cleaning PUMP WARNING! Do not open the pump housing – risk of electric shock. Service and maintenance must be performed by authorised technicians. -
Page 11: Storage
4.2 Reconditioning PUMP See section 4.1 for instructions. MATTRESS 1. Disconnect the tubes from the pump and deflate the mattress. Also open the CPR valve. 2. Remove the cover. For more information on cleaning covers, see section 4.1. If the product is equipped with a foam core it should be removed and cleaned separately. -
Page 12: Maintenance
6. Maintenance 1. Check the power cord and plug for damage and scratches. 2. Check the mattress cover to make sure it is undamaged and that covers and cells are correctly assembled. 3. Check that air is coming from the outlets on the side of the pump. 4. -
Page 13: Troubleshooting
Or by putting, for instance, a towel between the pump and the bed. If your questions are not answered by the above information, please contact Care of Sweden or your local dealer for further assistance. -
Page 14: Technical Description
8. Technical description 8.1 Technical specification PUMP SPECIFICATION Model CuroCell S.A.M.® PRO Voltage 110-120 V, 60 Hz, 220-240 V, 50Hz Current Max 10 W Fuse type T1AL, 250 V Dimensions (LxWxH) 26 x 8 x 13 cm Weight 1.5 kg Sound level <28 dB Ambient environment Temperature... - Page 15 8.3 Symbol key XXXX-XX-XX Article number Manufacturer Year-Month-Day Foot placement Read the user manual Group of function CE-marked in acc. to Recycling MDD 93/42/EEC Do not dispose of with Recommended user weight Placed directly on the Patient information household waste; follow –...
-
Page 16: Spare Parts
SC221-120210-SE0000 120x220 cm SC201-120220-SE0000 SC220-120220-SE0000 SC221-120220-SE0000 Top part Olivia for Top part Stone for Bottom part CuroCell for CuroCell S.A.M. PRO CF16 CuroCell S.A.M. PRO CF16 CuroCell S.A.M. PRO CF16 Size Art. no. Art. no. Art. no. 80x200 cm ST101-080200-SE0000... - Page 17 120x210 cm CC-250908 90x220 cm CC-250917 120x220 cm Art. no. Description SP103-EN0000 Mattress pump CuroCell S.A.M. PRO (110-120 V) SP101-SE0000 Mattress pump CuroCell S.A.M. PRO (220-240 V) CC-908060 Tube set CuroCell S.A.M. PRO, 200 cm CC-908061 Tube set CuroCell S.A.M. PRO, 210 cm CC-908062 Tube set CuroCell S.A.M.
-
Page 18: Options And Accessories
To ensure the best level of comfort, we recommend the use of accessories from Care of Sweden since our products are designed to work well together. If you require any accessories, or for more information about our products, please contact Care of Sweden or visit our website – www.careofsweden.com. -
Page 19: Warranty
The scope of the servicing and the servicing intervals will depend on how often and to what degree the product is used. Service and maintenance must always be performed by Care of Sweden or one of its authorised technician. Only use spare parts that have been approved by Care of Sweden. Use of non-approved spare parts invalidates the warranty. -
Page 20: Other Information
For more information, please contact Care of Sweden or your local dealer. 12.2 Returns and warranty claims Contact Care of Sweden before returning the product. The return postage will be paid by Care of Sweden if the fault is covered by the product warranty, otherwise by the customer. -
Page 21: Your Own Notes
13. Your own notes... - Page 24 SE-514 23 Tranemo, Sweden Visit address: Fabriksgatan 5A SE-514 33 Tranemo, Sweden Cargo address: Byns väg 4A SE-514 33 Tranemo, Sweden Care of Sweden and CuroCell S.A.M. are trademarks of Care of Sweden AB. © Care of Sweden AB, 2018...
