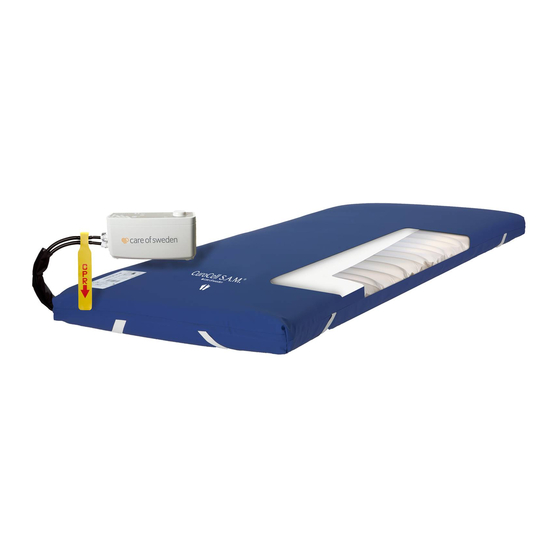

- Page 1 Instructions for use 2022-06-23 CuroCell S.A.M.® PRO Constant low pressure reactive air mattress system Instructions for use item number: 95-001410-EN0000...
-
Page 2: Table Of Contents
Other information ....17 Table of contents 10.1Recommended lifetime of the product 17 10.2 Disassembly and recycling ..17 WARNINGS- AND SAFETY PRECAUTIONS 3 10.3 Returns ........17 Introduction ........4 General information ......4 Intended purpose ......4 Intended user ........4 Intended user environment .... -
Page 3: Warnings- And Safety Precautions
The product may not be combined, assembled or repaired with other parts, accessories or spare parts other than those described in this manual or other documentation from Care of Sweden. 2. Do not use the pump in wet rooms where there is a risk of the pump coming into contact with water or another liquid. -
Page 4: Introduction
It is necessary for the prescriber of the mattress to make an individual assessment of the user and decide whether the characteristics of the mattress is beneficial for the user based on diagnosis. Clinical benefit Care of Sweden’s clinical benefits and claims for CuroCell® CLP reactive air mattresses systems consist of: • Safety •... -
Page 5: Assembly And Installation
2 Assembly and installation When unpacking, check that no parts are damaged. If any damage is found, contact Care of Sweden or your local distributor before using the product. 1a. If the mattress is an overlay mattress, place the mattress on top of an existing mattress. If possible, secure it by pulling the elastic bands on the bottom over the corners of the underlying mattress. -
Page 6: Operation
3 Operation Operation (how to get started) 1. Start the pump by pressing “1” (on), on the side of the pump. 2. The pump starts filling the mattress with air. The green light with the symbol will flash during the inflation phase; it takes about 15 minutes for the mattress to fill with air. 3. -
Page 7: Cardiopulmonary Rescitation (Cpr)
Note! • Make sure that the mattress is filled, and that the system has adapted to the user before performing a hand check. • How to perform a hand check depends on which mattress is used. If the air pressure remains low, search for damage on the mattress •... -
Page 8: Product Description
4 Product description Pump 1. Comfort setting knob. 2. Control panel. 3. Casing, front. 4. Tube connector. 5. Power cable connector. 6. Power switch - Used to turn the pump on or off. A green light indicates when the pump is on. 7. -
Page 9: Control Panel
Control panel Comfort setting knob – Comfort settings The comfort setting knob adjusts the air pressure in the mattress. When the knob is turned clockwise, the air supply and pressure in the mattress increase. When the knob is turned counter clockwise, the air supply and pressure in the mattress decrease. -
Page 10: Mattress
The product is reusable. Before using the product again for a new user, it is recommended to clean the product. Follow the instructions below for cleaning and reconditioning. Consult your hygiene manager or Care of Sweden for help and instructions if you are unsure. Cleaning pump... -
Page 11: Inner Cover
Inner cover Clean the affected area with a mild cleaning solution for this purpose such as: alcohol with or without tenside surfactants, Isopropanol 70 %, oxidizing solutions, chlorine max 1 % or hydrogen peroxide max 1,5 %. Mattress 1. Disconnect the tube connector from the pump and remove the air from the mattress. 2. -
Page 12: Storage
7 Maintenance Service and maintenance must always be performed by Care of Sweden or one of its authorized technicians. Only use spare parts approves by Care of Sweden. For more information, see Service manual for CuroCell S.A.M PRO. -
Page 13: Troubleshooting
8 Troubleshooting If the problems keep occurring, please contact Care of Sweden or your local distributor. Problem Solution The pump does not start Check that the power cable is connected to a socket. Check that all fuses are ok. Pump is operating but the... -
Page 14: Technical Specification
9 Technical specification Care of Sweden reserves the right to modify the product specification at any time. PUMP SPECIFICATION Model CuroCell S.A.M.® PRO Voltage 110-120 V, 60 Hz, 220-240 V, 50Hz Current Max 10 W Fuse type T1A/250V Dimensions (LxWxH) -
Page 15: Symbol Key
Symbol Key Symbols to convey medical device information CE-marked in accordance with Manufacturer Medical Device Regulation (EU) 2017/745 Medical Device Distributor Symbols for traceability and product information Item number Type BF Class II Equipment (double IP class (Enclosure class) insulated). Indicated on the power supply. - Page 16 Symbols for cleaning and recycling Machine wash at 95 °C Do not iron Do not machine wash Chlorine Wipe clean Tumble dry Do not dry clean Do not tumble dry Do not dispose of with Drip dry household waste Recycling Machine wash at 70°C...
-
Page 17: 3 Disassembly And Recycling
Mattress: A used CuroCell® mattress should be taken to a recycling centre. The product is sorted as “combustible waste”. For more information, please contact Care of Sweden or your local distributor. 10.3 Returns Contact Care of Sweden or your local distributor before returning the product. - Page 18 Your own notes...
- Page 20 SE-514 23 Tranemo SWEDEN Visit address: Fabriksgatan 5A SE-514 33 Tranemo SWEDEN Cargo address: Byns väg 4A SE-514 33 Tranemo SWEDEN Distributed by: Care of Sweden is a trademark of Care of Sweden AB © Care of Sweden AB, 2022...
