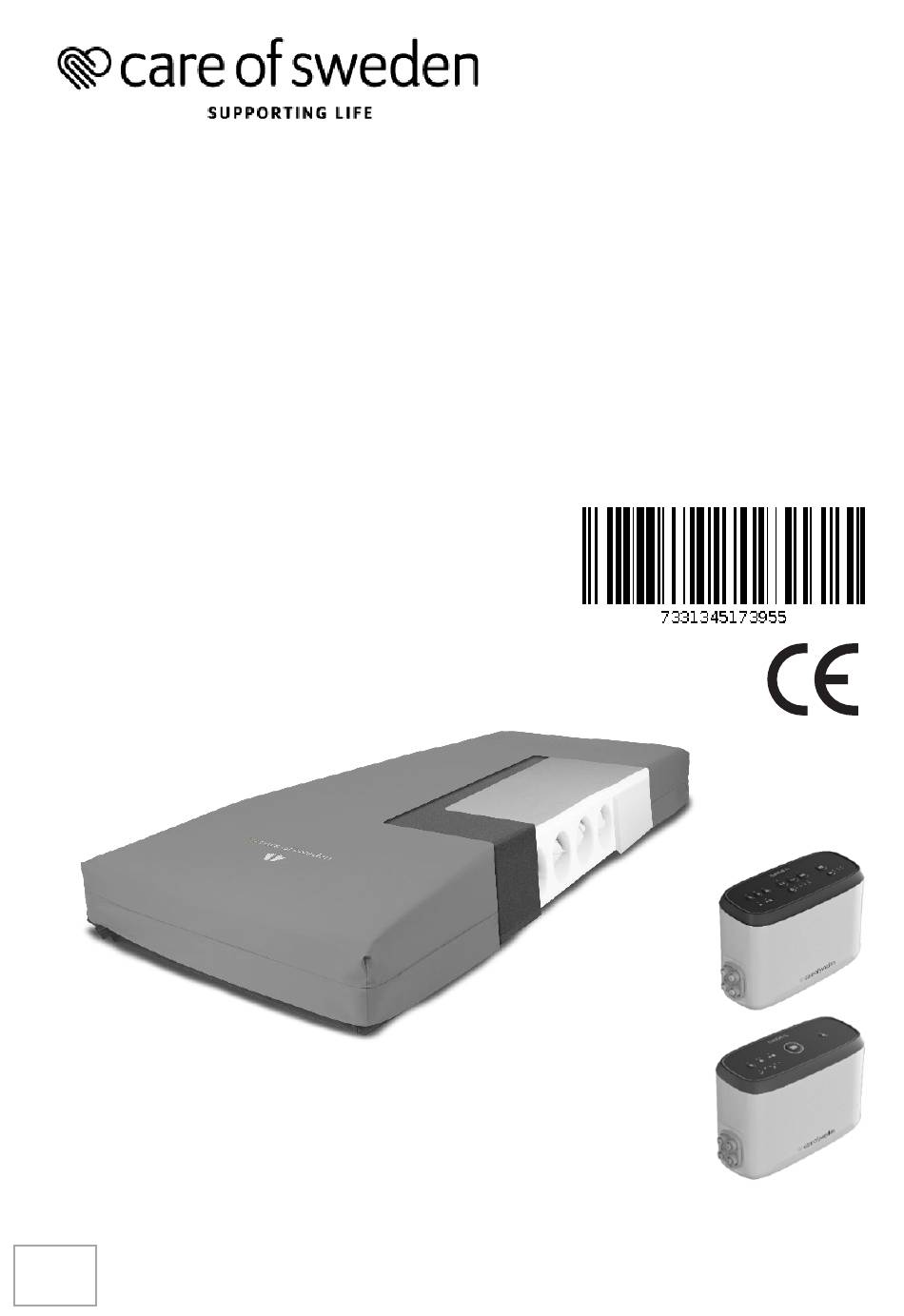

- Page 1 Instructions for use 2022-06-27 CuroCell® A4/IQ Cirrus Air mattress systems Instructions for use item number: 95-001455-EN0000...
-
Page 2: Table Of Contents
4.14 Maximum pressure notifications ..9 Table of contents 4.15 Table of notifications ....... 9 WARNINGS AND SAFETY PRECAUTIONS ..1 Operation CuroCell® IQ ....... 11 1 Introduction .......... 3 5.1 Function ......... 12 1.1 General information ......3 5.2 Program ......... 13 1.2 Intended purpose ...... -
Page 3: Warnings And Safety Precautions
The product must only be installed and used for its intended purpose according to the instructions in this manual and/ or other documentation from Care of Sweden. The product must not be combined, assembled or repaired with parts (e.g. control unit and mattress), accessories or spare parts other than those described in this manual or other documentation from Care of Sweden. - Page 4 Contact an authorized service technician for examination and repair. Never connect anything other than the Care of Sweden supplied power supply to the control unit power cable connector.
-
Page 5: Introduction
The clinical benefits for M4, A4 and IQ together incidents relating to our products, shall be with any of the mattresses included in this reported immediately to Care of Sweden. instruction for use are: Intended purpose • Prevention and treatment of pressure... -
Page 6: Assembly And Installation
2 Assembly and installation Check that no parts are damaged. If damage is found, contact Care of Sweden or your local distributor before using the product. Do not use sharp objects when unpacking as it might damage the product. 1. Place the mattress jammed when raising or lowering the bed. -
Page 7: Common Operations
Common operations Remove the power supply from the wall socket Following operations apply to the Cirrus system and leave the control unit hanging on the bed regardless of which control unit that is used. during transport. The mattress will retain air for at least 12 hours. -
Page 8: Operation Curocell® A4 Cirrus
CuroCell® A4 Cirrus 4 Operation CuroCell® A4 Cirrus Operation CuroCell® A4 Cirrus (how to get started) 1. Set the On/Off switch on the side of the control unit to position 1 (On). See figure 1. 2. The mattress starts to inflate. This takes about 20 minutes depending on the size of the mattress. While the mattress is inflating, the ”mute the information signal”... - Page 9 CuroCell® A4 Cirrus Button Function Mute the information signal Panel lock Pack & Go®. Function for deflating the system Alternating mode Pulsating mode CLP mode (Constant low pressure) Maximum pressure (caring mode) Information signal Incorrect connection of the air connector (CPR) Cycle time settings (10, 15, 20, 25 minutes).
-
Page 10: Function
CuroCell® A4 Cirrus Function 3. Pulsating mode. The cycle period can The mattress system independently and without be changed according to the user needs manual adjustment controls the inner pressure and requirements. Choose between 10, of the mattress according to the weight, height, 15, 20 or 25 minutes. -
Page 11: Hand Check (Function Control)
CuroCell® A4 Cirrus The Pack&Go® diode will flash during deflation. Hand check (function control) The mattress will empty of air and be ready to be Hand check is performed to ensure that the simply folded together in about 20 minutes. The mattress system works properly. - Page 12 CuroCell® A4 Cirrus Notification Description and troubleshooting High temperature. Valves and compressors are turned off. If the control unit is in direct sunlight, relocate it. Default settings are not completed. Incorrect input voltage. Make sure that the correct power supply is used, otherwise contact the technical support. Low pressure.
-
Page 13: Operation Curocell® Iq
CuroCell® IQ Cirrus Operation CuroCell® IQ Operation CuroCell® IQ (how to get started) 1. Set the On/Off switch on the side of the control unit to position 1 (On). See figure 1. 2. The mattress starts to inflate. This takes about 20 minutes depending on the size of the mattress. -
Page 14: Function
CuroCell® IQ Cirrus Button Function Mute the information signal Pack & Go®. Function for deflating the system Maximum pressure (caring mode) Information signal Incorrect connection of the air connector (CPR) Check-symbol. System is ready to use Notification diodes Function The mattress system independently and without manual adjustment controls the inner pressure of the mattress according to the weight, length, and position of the user. -
Page 15: Program
CuroCell® IQ Cirrus Program Pack&Go® Pulsating mode with a cycle period of 10 minutes is preset. The product may be packed as follows: Ensure that no-one is lying on the Maximum pressure (caring mode) mattress. With this function, the entire On the control panel, press the mattress Is inflated and provides lock/unlock button. -
Page 16: Table Of Notifications
CuroCell® IQ Cirrus 5.12 Table of notifications Information about each notification is shown in the notification table: Notifications from 1-10 are both audible and visual. The error code will be displayed until the error has been rectified. If the mute button is pressed the audible warning will crease for a period of 5 minutes and will return until the error has been rectified. -
Page 17: Product Description

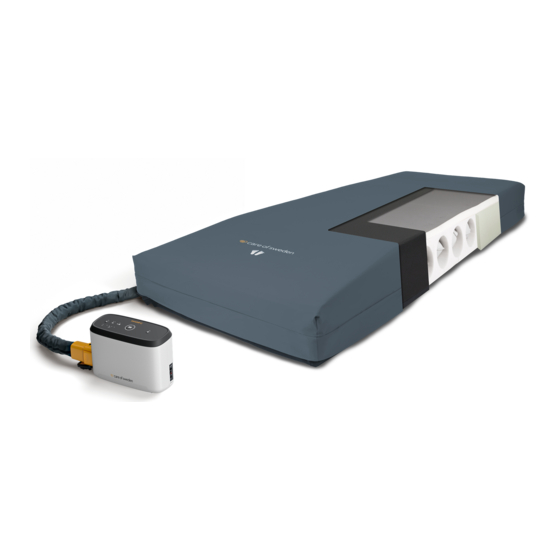

Product description 6.1 Control unit (A4/IQ) CuroCell® A4 and CuroCell® IQ are automatic air mattress systems used as an aid to prevent and treat pressure ulcers/pressure injuries. The automation means that the control unit’s built-in sensors use software to adjust the inner pressure of the mattress according to the user’s weight, height, position, and change in position. -
Page 18: Mattress
Mattress 1. Mattress 2. Hygiene cover (top part) 3. Air cells 4. Foam Core 5. Inner cover 6. Tubing set 7. CPR (quick deflation) 8. Hygiene cover (bottom part) -
Page 19: Reuse And Cleaning
INNER COVER Reuse and cleaning The product is reusable. Follow the instructions below for cleaning and reconditioning. It is Clean the affected area with a mild cleaning recommended to clean the mattress between solution for this purpose such as: alcohol with or users. -
Page 20: Storage
We recommend that the control unit will be regularly serviced and inspected to maintain functionality and performance. Service and maintenance must always be performed by Care of Sweden or one of its authorized technicians. Only use spare parts approved by Care of Sweden. For more information, see the service manual for CuroCell®... -
Page 21: 10 Troubleshooting
The problem may be resolved by putting the vibrations can be control unit on a flat, steady surface or by placing a towel between the felt control unit and bed. If the problem keeps occurring, please contact Care of Sweden or your local distributor. -
Page 22: 11 Technical Specification
11 Technical specification Note: Care of Sweden reserves the right to modify the product specification at any time. CONTROL UNIT SPECIFICATION CUROCELL® A4/IQ Model CuroCell® A4, CuroCell® IQ Input voltage 100-240 V / 50-60 Hz / 0,6 A Output voltage... -
Page 23: Symbolkey
11.2 Symbol key Symbols to convey medical device information CE-marked in accordance with Medical Device Regulation (EU) Manufacturer 2017/745 Medical Device Distributor Symbols for traceability and product information Type BF Item number Class II Equipment (double SN-number insulated). Indicated on the power supply. -
Page 24: 12 Other Information
• If it is assessed that the product is or could be contaminated (e.g., used by users with a known bloodborne infection), the product must be handled in accordance with the healthcare provider’s or local authority’s procedures for contaminated waste. 12.3 Returns Contact Care of Sweden or your local distributor before returning the product. - Page 25 Visit address: Fabriksgatan 5A SE-514 33 Tranemo SWEDEN Cargo address: Byns väg 4A SE-514 33 Tranemo SWEDEN Distributed by: Care of Sweden, Optimal 5zon, CuroCell, and DuoCore are trademarks of Care of Sweden AB © Care of Sweden AB, 2022...
