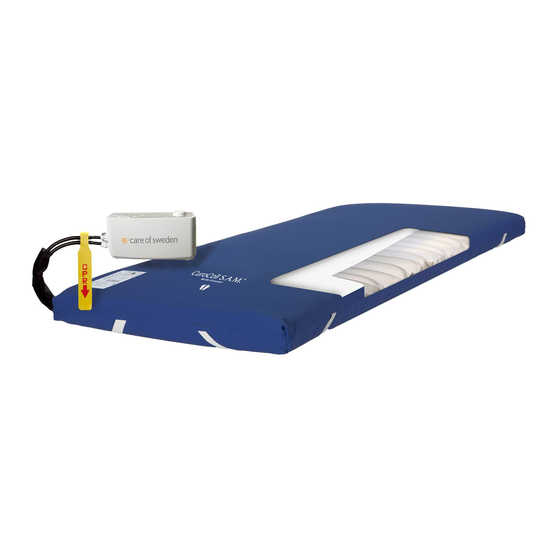

Care of Sweden CuroCell S.A.M. PRO User Manual
Constant low pressure reactive air mattress system
Hide thumbs
Also See for CuroCell S.A.M. PRO:
- User manual (24 pages) ,
- Instructions for use manual (20 pages)
Related Manuals for Care of Sweden CuroCell S.A.M. PRO
Summary of Contents for Care of Sweden CuroCell S.A.M. PRO

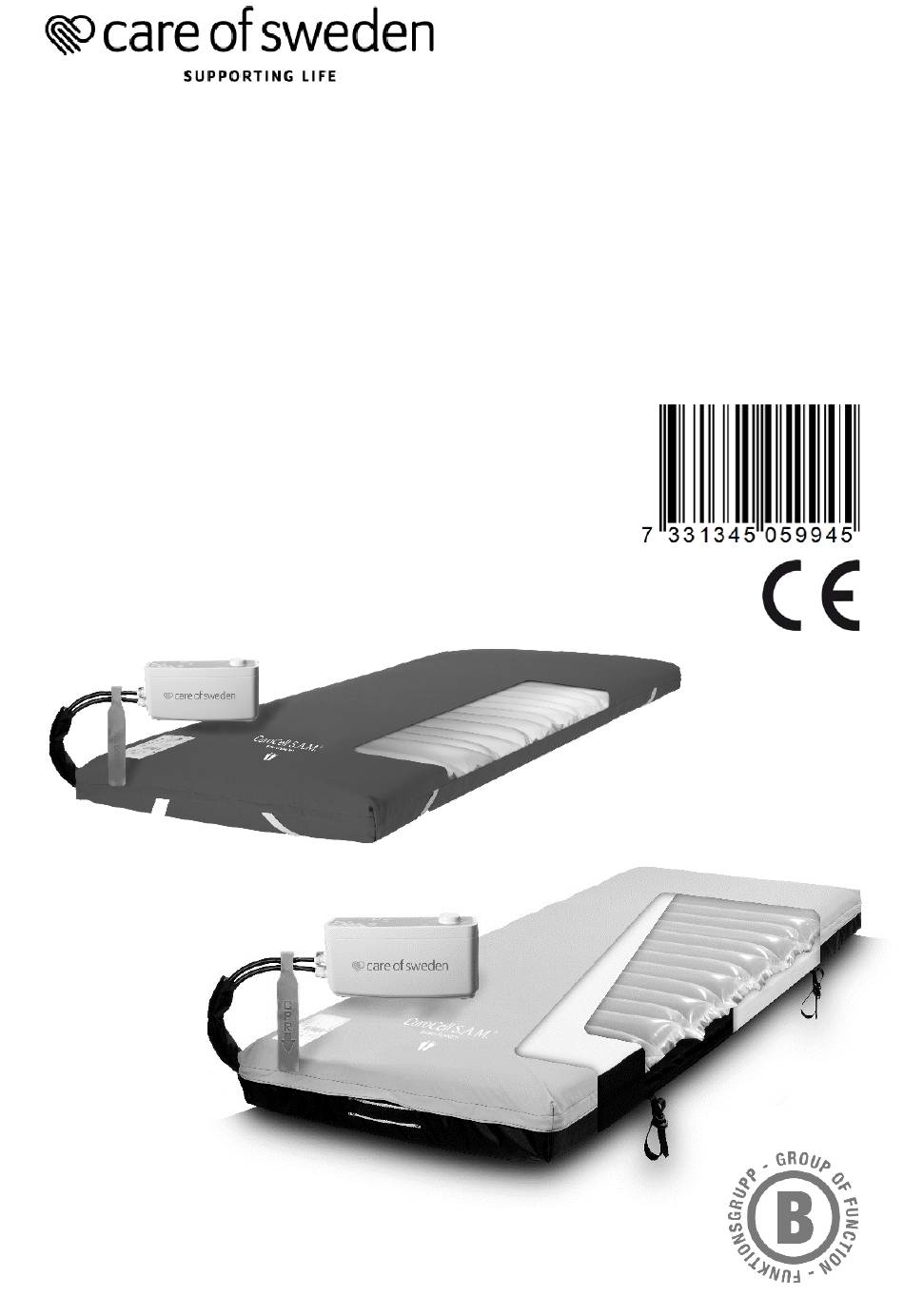

- Page 1 Instructions for use 2021-06-08 CuroCell S.A.M. ® Constant low pressure reactive air mattress system Instructions for use item number: 95-001410-EN0000...
-
Page 2: Table Of Contents
Table of contents WARNINGS AND SAFETY PRECAUTIONS 1. Introduction 2. Product description 3. Installation and start-up Reuse, cleaning and reconditioning 5. Storage 6. Maintenance 7. Troubleshooting 8. Technical description 9. Spare parts 10. Options and accessories 11. Warranty 12. Other information 13. -
Page 3: Warnings And Safety Precautions
The product may not be combined, assembled or repaired with other parts (e.g. pump and mattress), accessories or spare parts other than those described in this manual or other documentation from Care of Sweden. 2. Do not use the pump in wet rooms where there is a risk of the pump coming into contact with water or another liquid. -
Page 4: Introduction
We would be very grateful for all information involving accidents or incidents relating to our products, by reporting them immediately to us, at Care of Sweden. 1.2 Intended use The system consists of a pump and a mattress and is intended to be used as an aid for prevention and in the treatment of pressure ulcers/pressure injuries (PU/PI). - Page 5 This guide provides guidance to personnel and prescribers when choosing a mattress from Care of Sweden. CuroCell S.A.M® PRO is a mattress in function group B. This information can be obtained from our website, www. careofsweden.com, or ordered from Customer Services...
-
Page 6: Product Description
2. Product description 2.1 Pump – Front Comfort setting knob. Control panel. 3. Casing, front. 4. Tube connector. 5. Power cable connector. 6. Power switch. Used to turn the pump on or off. A green light indicates when the pump is on. 7. - Page 7 2.2 Pump functions – Control panel Comfort setting knob – Comfort settings The comfort setting knob adjusts the air pressure in the mattress. When the knob is turned clockwise, the air supply and pressure in the mattress increase. When the knob is turned counter clockwise, the air supply and pressure in the mattress decrease.
- Page 8 2.3 Mattress 1. Cells/air bladder 2. Tubes 3. Tube holder 4. CPR (Rapid deflation) 2.4 Other parts Hygiene cover Inner cover Soft (accessory CuroCell S.A.M. PRO) ® Transport and Storage Bag (accessory) Integrated foam core (only CuroCell S.A.M.® PRO CF16)
-
Page 9: Installation And Start-Up
3. Installation and start-up 3.1 Installation When unpacking, check that no parts are damaged. If any damage is found, contact Care of Sweden or your local distributor before using the product. 1a. If the mattress is an overlay mattress, place the mattress on top of an existing mattress. If possible, secure it by pulling the elastic bands on the bottom over the corners of the underlying mattress. - Page 10 NOTE: • When the head end of the bed is raised, the pressure should be increased by 25 kg. • When only part of the mattress is under load, e.g. for amputee users, the pressure should be increased (by 1–2 steps). Then perform a hand check (see section 3.4). •...
-
Page 11: Reuse, Cleaning And Reconditioning
Before using the product again for a new user, it is recommended to clean the mattress in accordance with the instructions below. Consult your hygiene manager or Care of Sweden for help and instructions if you are unsure. Cleaning and reconditioning should otherwise be performed as required. -
Page 12: Storage
4.2 Reconditioning PUMP See section 4.1 for instructions. MATTRESS Disconnect the tube connector from the pump and remove the air from the mattress. Remove the covers. For more information of cleaning the covers, see section 5.1. Move the mattress to a clean area that is suitable for cleaning. Wipe off the cells, all tubes and the CPR module with a mild cleaning solution for this purpose such as: alcohol with or without tenside surfactants, Isopropanol 70 %, oxidizing solutions, chlorine max 1 % or hydrogen peroxide max 1,5 %. -
Page 13: Maintenance
6. Maintenance 1. Check the power cable and power supply for damage and scratches. 2. Check the mattress cover to make sure it is undamaged and that covers and cells are correctly assembled. 3. Check that air is coming from the outlets on the side of the pump. 4. -
Page 14: Troubleshooting
Or by putting, for instance, a towel between the pump and the bed. If your questions are not answered by the above information, please contact Care of Sweden or your local distributor for further assistance. -
Page 15: Technical Description
8. Technical description 8.1 Technical specification PUMP SPECIFICATION Model CuroCell S.A.M.® PRO Voltage 110-120 V, 60 Hz, 220-240 V, 50Hz Current Max 10 W Fuse type T1A/250V Dimensions (LxWxH) 26 x 8 x 13 cm Weight 1.5 kg Sound level, max ISO 3746:2010 - 39 dBA EN ISO 11201:2010 - 22 dBA Ambient environment Temperature... - Page 16 8.4 Symbol key XXXX-XX-XX Item number Manufacturer Year-Month-Day Foot placement Read the instructions for use Group of function CE-marked in accordance Recycling with Medical Device Regulation (EU) 2017/745 Do not dispose of with Recommended user weight Placed directly on the User information –...
-
Page 17: Spare Parts
SC221-120210-XX0000 120x220 cm SC201-120220-XX0000 SC220-120220-XX0000 SC221-120220-XX0000 Top part Olivia for Top part Stone for Bottom part CuroCell for CuroCell S.A.M. PRO CF16 CuroCell S.A.M. PRO CF16 CuroCell S.A.M. PRO CF16 Size Art. no. Art. no. Art. no. 80x200 cm ST101-080200-XX0000... - Page 18 Tube set CuroCell S.A.M. PRO, 200 cm CC-908061 Tube set CuroCell S.A.M. PRO, 210 cm CC-908062 Tube set CuroCell S.A.M. PRO, 220 cm If other spare parts are needed, please contact Care of Sweden or your local distributor for further assistance...
-
Page 19: Options And Accessories
To ensure the best level of comfort, we recommend the use of accessories from Care of Sweden since our products are designed to work well together. If you require any accessories, or for more information about our products, please contact Care of Sweden or your local distributor. You can also visit our website – www.careofsweden.com. -
Page 20: Warranty
Faults and defects regarded as warranty faults are rectified free of charge. A warranty claim must be submitted to Care of Sweden or your local distributor before the product is returned. 11.3 Lifetime... -
Page 21: Other Information
12.2 Returns and warranty claims Contact Care of Sweden or your local distributor before returning the product. The return postage will be paid by Care of Sweden if the fault is covered by the product warranty, otherwise by the customer. -
Page 22: Own Notes
13. Your own notes... - Page 24 SE-514 23 Tranemo, Sweden Visit address: Fabriksgatan 5A SE-514 33 Tranemo, Sweden Cargo address: Byns väg 4A SE-514 33 Tranemo, Sweden Care of Sweden and CuroCell S.A.M. are trademarks of Care of Sweden AB. © Care of Sweden AB, 2021...
