-ARM Model, Installation on Arm
Attach Bottom Cover
a. Align (4) holes in "B" and "C".
Install (4) 10-32 x 3/8 Phillips head
machine screws.

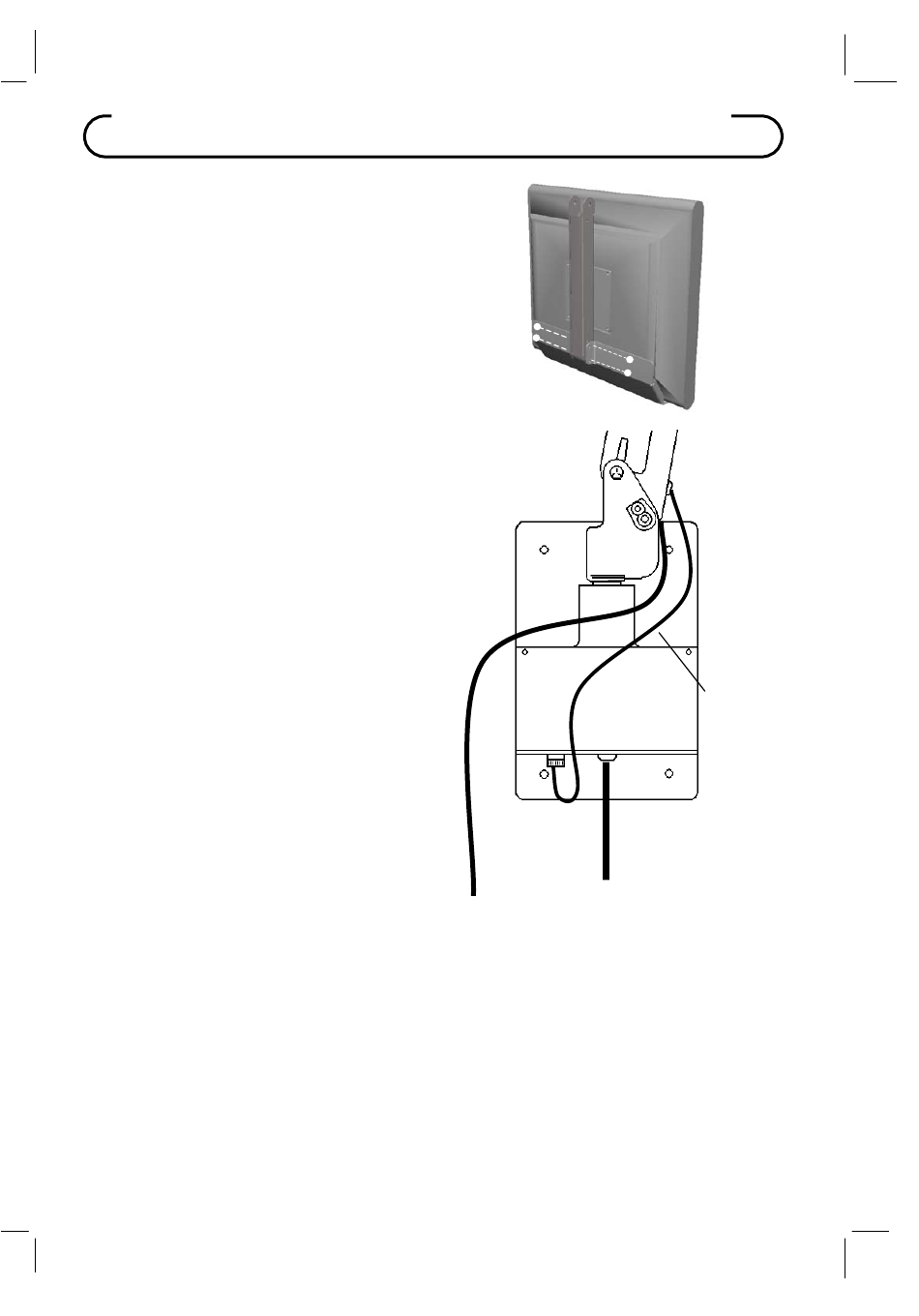

Power and Signal Connections
1. Connect the ARM POWER CABLE
that exits the base of the arm to the
power connector on the bottom of the
power supply.
2. Connect the CATV RF CABLE to the
hospital's cable system. NOTE: Do
not connect to a powered coax!
Damage will result to the TV.
3. Plug the AC Plug to the wall outlet.
AC PLUG
CATV RF
Wall Outlet
CABLE
18
ARM
POWER
CABLE
