Connections

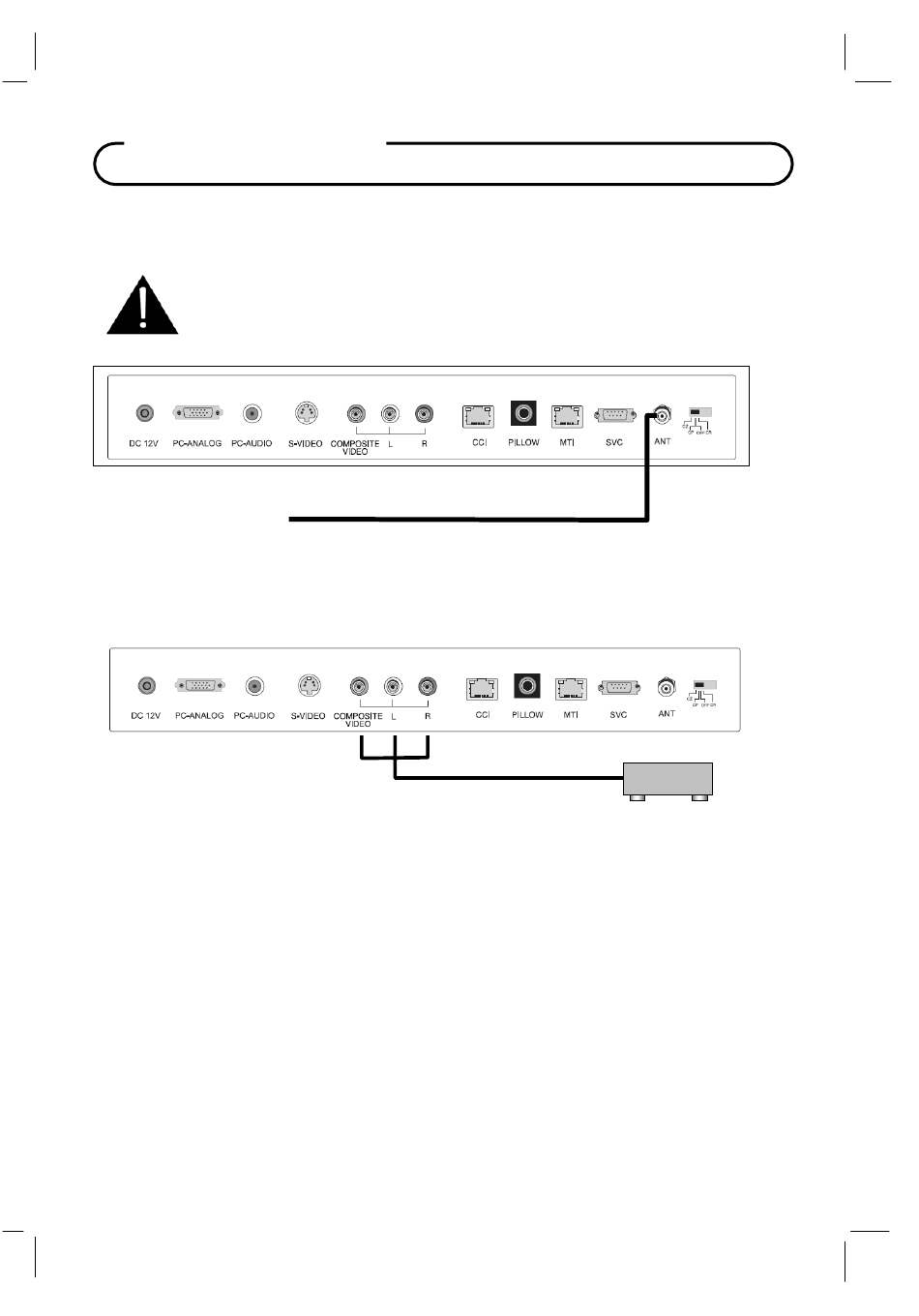

Antenna "ANT" Connection

CAUTION: Some hospital cable systems provide power voltage on the coaxial
cable. This TV is NOT designed to be powered via a coaxial cable. Do not
connect to a powered coaxial cable. Damage will result to the TV.
Hospital Coax Cable
COMPOSITE VIDEO/AUDIO IN
Connects composite video and stereo or mono audio from devices such as VCR's,
DVD's, and Game Boxes.
1. Connect the audio outputs from the device (L, R) to the L & R on the TV. Connections are
color code.
2. Connect the video output from the device to the COMPOSITE VIDEO jack on the TV.
Connection is color-coded.
3. Verify that the COMPOSITE VIDEO mode is enabled in the Source Setup menu. Please see
"Source Setup" instructions elsewhere in this manual for details.
4. Press the TV/AV button repeatedly until COMPOSITE VIDEO appears in the lower right corner
of the screen indicating selection of Composite Video.
5. Activate the device.
19
VCR
