EVAL-ADGM1004SDZ

BLOCK DIAGRAM AND DESCRIPTION

The organization of the ACE
functional block diagram shown in the
In this way, it is easy to correlate the functions on the EVAL-
ADGM1004SDZ with the corresponding descriptions in the
data sheet. The ADGM1004 data sheet provides a full description
of each block and register, as well as the respective settings.
Some blocks and the corresponding functions pertain to the
EVAL-ADGM1004SDZ, and are described in Table 6. The full
screen block diagram shown in Figure 5 displays the
functionality of each block.
All changes to the blocks correspond to the block diagram in
the ACE software. For example, when the internal register bit is
enabled, it displays as enabled on the block diagram. Any bits or
registers that are bolded are modified values that have not been
transferred to the EVAL-ADGM1004SDZ. Click Apply Changes
to transfer the data to the EVAL-ADGM1004SDZ.
E
User Guide
software is similar to the
ADGM1004 data sheet.

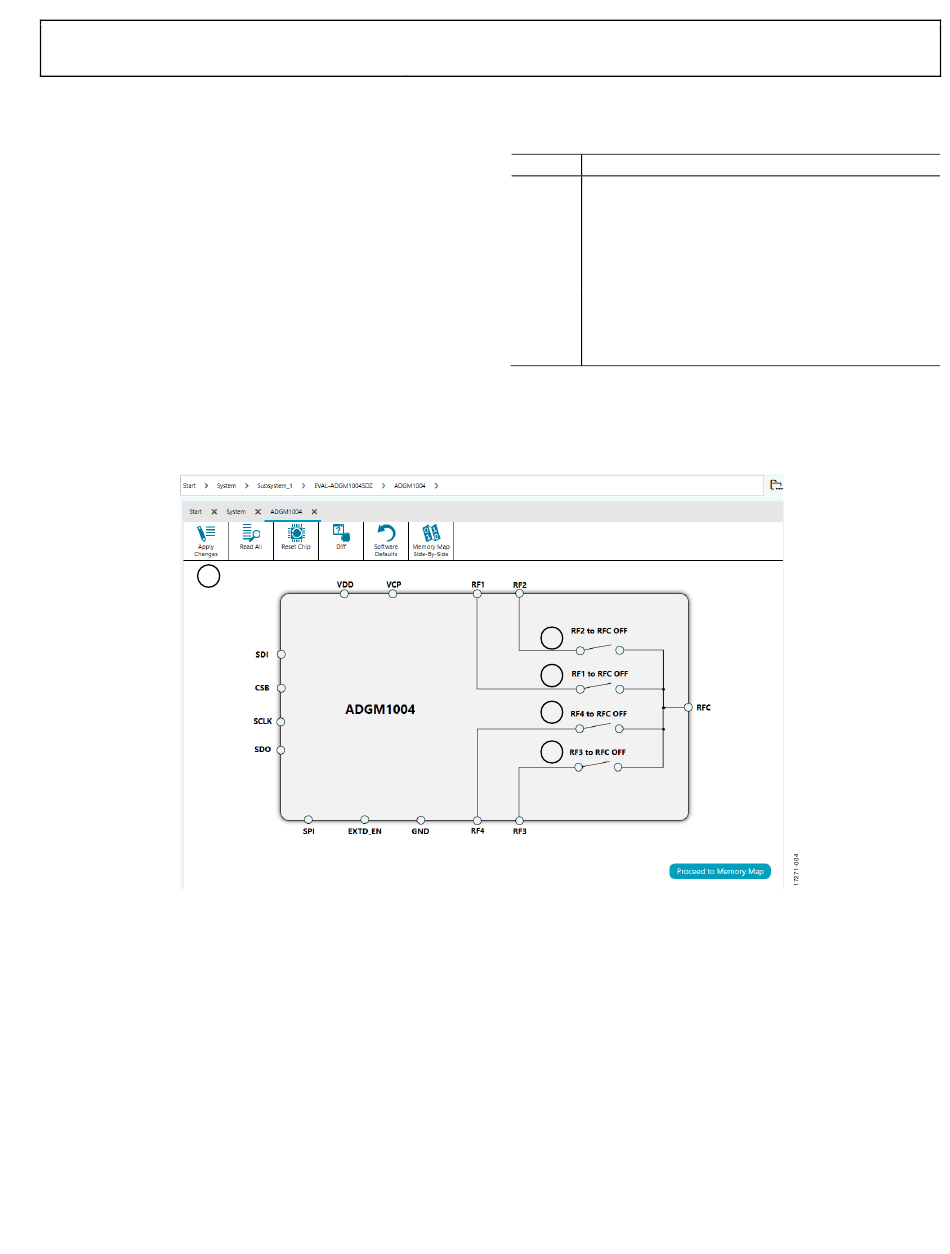

Figure 5. Labeled EVAL-ADGM1004SDZ Block Diagram
Table 6. Block Diagram Functions
Label Function
A Click the switch symbol to open and close the RF1 to
RFC switch.
B Click the switch symbol to open and close the RF2 to
RFC switch.
C Click the switch symbol to open and close the RF3 to
RFC switch.
D Click the switch symbol to open and close the RF4 to
RFC switch.
E Click Apply Changes to apply all modified values to
the EVAL-ADGM1004SDZ.
B
A
D
C
Rev. 0 | Page 7 of 18
UG-1462
