BLOCK DIAGRAM AND DESCRIPTION

The EVAL-AD5600PMDZ software is organized to appear
similar to the functional block diagram shown in the
data sheet. Therefore, correlating the functions on the EVAL-
AD5600PMDZ with the descriptions in the
is simplified.
A
B
Table 1. Block Diagram Functions (See Figure 4 for Labels)
Label Button/Function Name
A
Apply Changes
B CONFIGURATION
Wizard
C Input Register
D DAC Register
AD5600
AD5600 data sheet
Figure 4. AD5600
Function
Applies all modified values to the device. Note that if an evaluation board is not connected, values
entered into the input registers are not transferred to the DAC registers.
Used to set the initial configuration for the EVAL-AD5600PMDZ. Select the LDAC pin configuration from
the LDAC State dropdown box. A gain of 1 is the default. After setting up the initial configuration, click
Apply to apply the values. These settings can be modified at any stage while evaluating the EVAL-
AD5600PMDZ.
16-bit data word to be transferred to the device. Click Apply Changes (Label A) to transfer this 16-bit
dataword to the device.
Displays the value that is currently present in the DAC register on the device. Update the DAC registers
by selecting LDAC-LOW from the LDAC State dropdown box.
Rev. 0 | Page 4 of 8
EVAL-AD5600PMDZ
For a full description of each block, register, and its settings, see
the AD5600 data sheet.
Some of the blocks and their functions are described in this
section as they pertain to the evaluation board. The block
diagram is shown in Figure 4. Table 1 describes the
functionality of each block.
C D

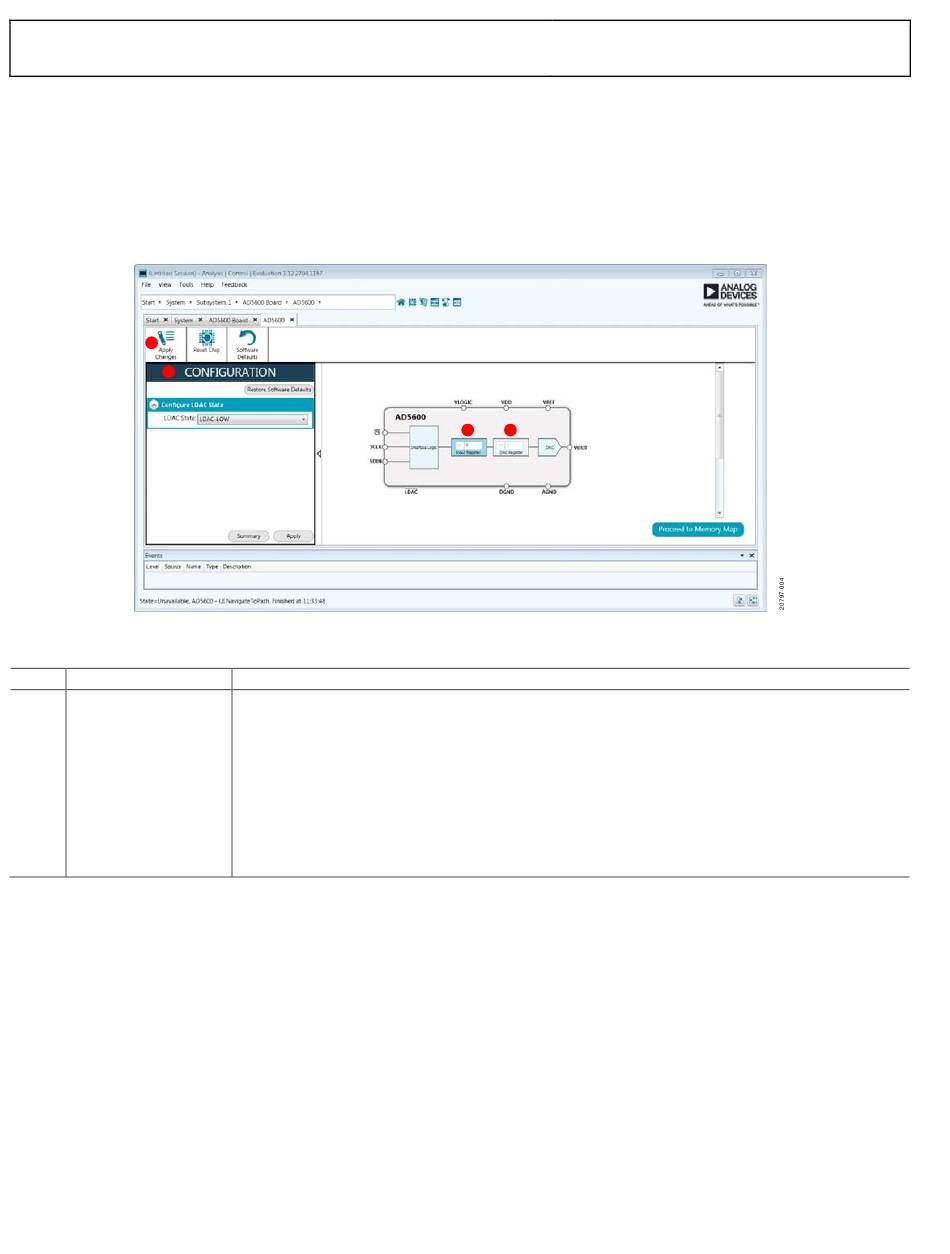

Block Diagram with Labels
User Guide
