BLOCK DIAGRAM AND DESCRIPTION

The EVAL-ADGS5412SDZ software is organized so that it
appears similar to the functional block diagram shown in the
ADGS5412 data sheet. In this way, it is easy to correlate the
functions on the EVAL-ADGS5412SDZ board with the
Table 3. Block Diagram Functions
Label Function
A The dropdown menus configure SW1 to SW4 as open or closed.
B
The INVALID RW ENABLE, SCLK COUNT ENABLE, and CRC ENABLE checkboxes enable or disable the error detection
features on the SPI interface.
C The BURST MODE ENABLE checkbox enables or disables burst mode.
D
The RW ERROR FLAG, SCLK ERROR, and CRC ERROR FLAG indicators illuminate red if the relevant error flags assert in the
error flags register.
E
The Clear Flags button clears the error flags register.
F
The Apply Changes button applies all modified values to the devices.
F
B
C

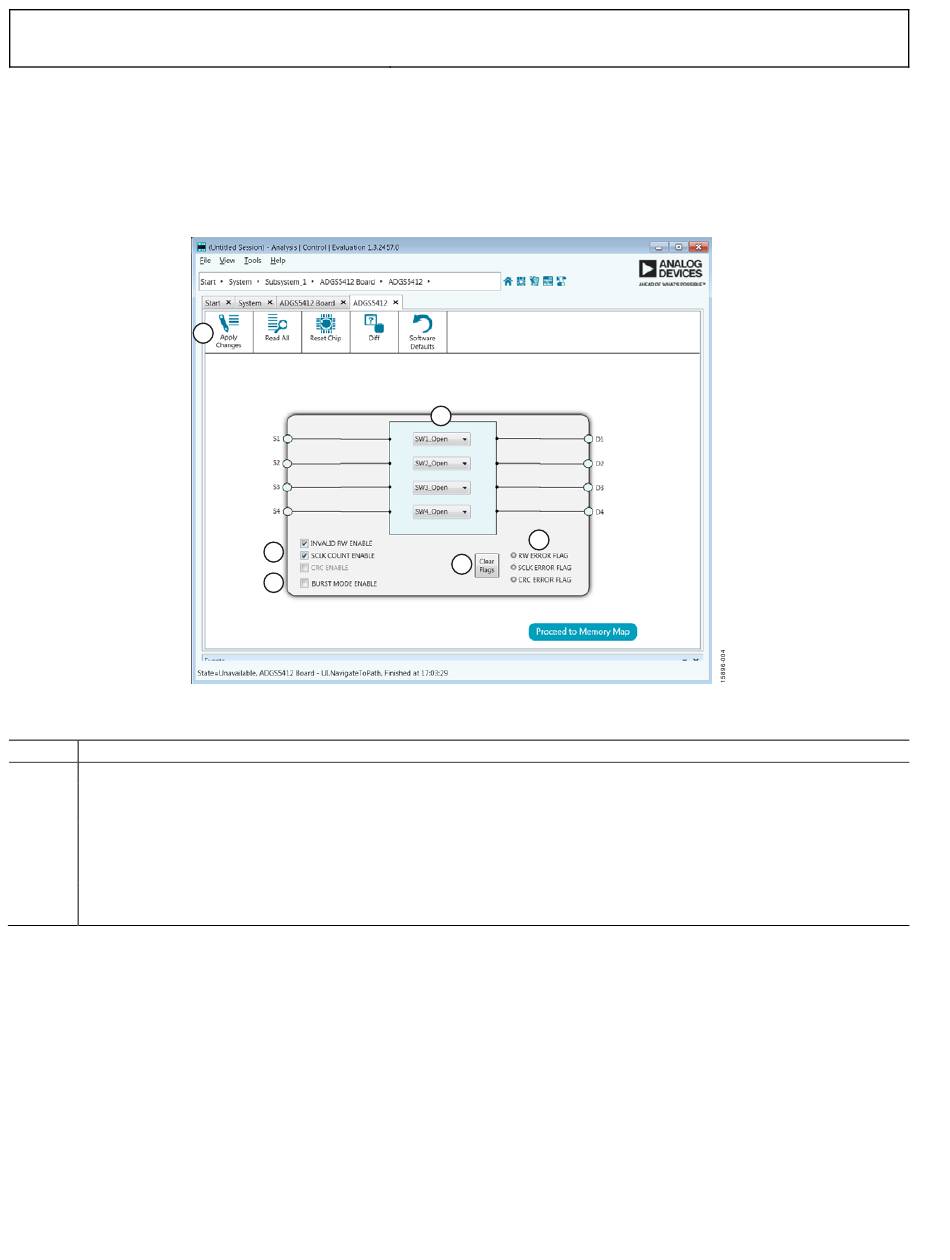

Figure 4. EVAL-ADGS5412SDZ Block Diagram with Labels
EVAL-ADGS5412SDZ
description in the data sheets. A full description of each block,
register, and setting is given in the
Some of the blocks and their functions are described here as
they pertain to the evaluation board. The full screen block
diagram, shown in Figure 4, describes the functionality of each
A
D
E
