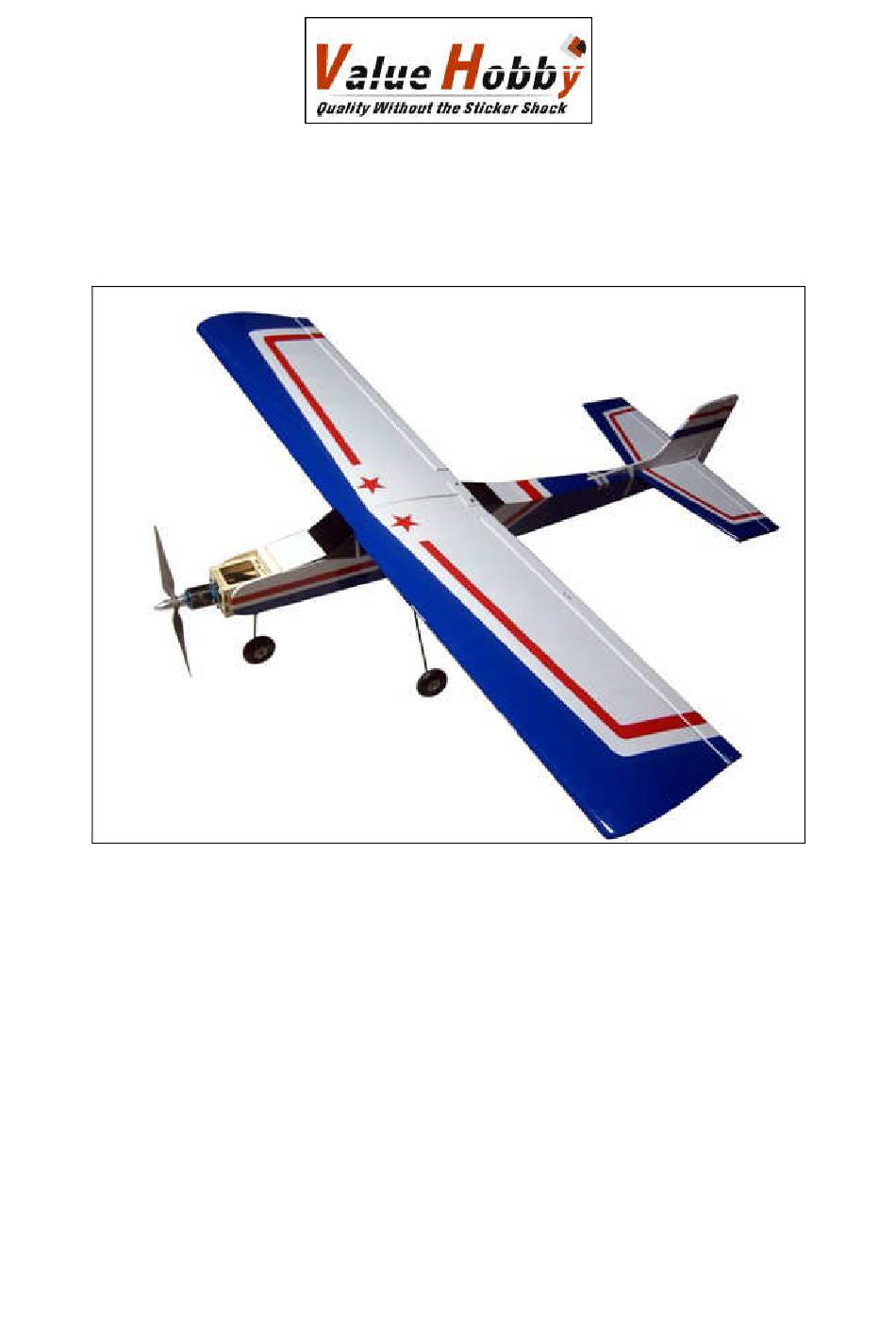

- Page 1 Aviator Trainer40 ARF Instruction Manual Specifications Wingspan: 65.0 in (1650 mm) Length: 53.1 in (1350 mm) Wing Area: 729sq in (47.0 sq dm) Flying Weight: 5.3 lbs (2400g)
-
Page 2: Dear Customer
Further, Value Hobby reserves the right to modify this warranty without notice. Value Hobby has no control over the final stages of assembly or the material used for the final assembly. No liability shall be assumed nor materials used for the final user-assembled product. By the act of using the final product the user accepts all resulting liability. -
Page 3: Safety In Flying
Examination Unpack your airplane and examine the components. Check for damage of any kind. If you see any damage, please contact Value Hobby immediately. Covering Your airplane was packed in plastic at the factory without any wrinkles in the covering. You may notice some wrinkles now;... - Page 4 www.valuehobby.com/aviator-trainer-40-arf.html RECOMMENDED RADIO EQUIPMENT Product Quantity Flysky T6 6CH Transmitter and Receiver FLY-RC-2563 Radio Electric 4 Servo Towerpro SG5010 Standard Servo TWP-SV-0368 Nitro 5 Universal Servo Y-Harness Heavy Duty 12-Inch (Futaba "J" and JR AMS-AC-0870 Y-Harness Compatible) Universal Servo Extension Heavy Duty 24-Inch (Futaba "J" and JR AMS-AC-0566 Extension Compatible)
- Page 5 www.valuehobby.com/aviator-trainer-40-arf.html Main Parts: Accessories:...
- Page 6 www.valuehobby.com/aviator-trainer-40-arf.html Bag 1: Mount for engine x 2 {52*90mm (2.0*3.5in)} M4*20mm (0.8 in) socket head x 4 M4 washer x 4 Pack2: Steering arm for nose landing gear x 1 Nose landing gear wire x 1 Φ4.1mm (0.2 in) nose wheel x 3 Φ4.1mm (0.2 in) wheel collar x 7 Landing gear wire x 2 Mounting strap for landing gear x 2...
-
Page 7: Section1. Aileron Installation
Step4. Saturate each hinges with thin CA. make Section1. Aileron Installation sure to glue both the top and bottom. Once CA has cured, gently pull on the aileron to make sure the Step1. Place T-pin or something similar to this in hinges are secure. -
Page 8: Section2. Aileron Servo & Linkage Installation
www.valuehobby.com/aviator-trainer-40-arf.html Step4. Use a drill bit to drill four mounting holes for Section2. Aileron Servo & Linkage the servo. Installation Step1. Locate the items shown in picture. (Servos sold separately.) Step5. Install the servo onto the wing using four self-tapping screws provided with the servo. Step2. -
Page 9: Section3. Wing Installation
www.valuehobby.com/aviator-trainer-40-arf.html Step8. Thread a clevis to the aileron servo pushrod Step11. With the control surface centered, tighten Φ1.8x150mm (6.0inch)}, and connect the the screw to secure the pushrod to the servo arm. clevis to the control horn. Step12. Repeat steps 1 through 11 to install the remaining aileron servo &... -
Page 10: Section4. Tail Set Installation
www.valuehobby.com/aviator-trainer-40-arf.html Step3. Locate the items shown in the picture. Section4. Tail Set Installation Step1. Attach the elevator to the horizontal stabilizer using the same way in section 1. Step4. Use the hobby knife to remove the coverings to expose the holes on the wing and Step2. -
Page 11: Section5. Rudder Elevator Servo & Linkage Installation
www.valuehobby.com/aviator-trainer-40-arf.html Step4. Use a felt-tipped pen to mark the outline of Section5. Rudder Elevator Servo & fuselage on the stabilizer, both bottom and top. Linkage Installation We recommend you to install the rudder servo on the left tray, elevator servo on the right tray. Step5. - Page 12 www.valuehobby.com/aviator-trainer-40-arf.html Step2. Thread a clevis to the pushrod, and connect Step5. Locate the items for nose wheel installation. a control horn to the clevis. Step3. With the holes aligned with the hinge line, install the control horn to the elevator using two Step6.
- Page 13 www.valuehobby.com/aviator-trainer-40-arf.html Step7. Locate the electric motor and install it to the fuselage. Step8. Connect the pushrod for nose wheel to the steering arm. Step9. Install the nose wheel to the fuselage.
-
Page 14: Section6. Nitro Engine Installation
www.valuehobby.com/aviator-trainer-40-arf.html Step10. Install two servos to the fuselage. With Section6. Nitro Engine Installation rudder elevator and steering arm centered, tighten the screw to secure the pushrods to the arm. Step1. Position the nitro engine on the fuselage. Step11. Install the electric motor to the mount. Step2. - Page 15 www.valuehobby.com/aviator-trainer-40-arf.html Step3. Connect the Φ1.5 x 400mm (15.7inch) Step6. Fit the stopper assembly into the tank with the vent line pointing toward the top of the tank, but not throttle pushrod to the engine. touching. The fuel tubing and clunks (fuel pickup) on the carburetor and fill lines should almost reach the back of the tank but not touch.
-
Page 16: Section7. Landing Gear Installation
www.valuehobby.com/aviator-trainer-40-arf.html Step3. Repeat steps 2 through 3 to install the other Section7. Landing Gear Installation wheel. Step1. Locate the items for installing main landing gear Step4. Use a hobby knife to remove the coverings from the fuselage for the landing gear. Step2. -
Page 17: Section8. Set Cg And Control Throws
www.valuehobby.com/aviator-trainer-40-arf.html Section8. Set CG and Control Throws For the first flight, the recommended CG is 88mm (3.5inch) behind the leading edge of the wing against the fuselage. Use the battery pack, moving it forward or backward to achieve the correct balance. - Page 18 www.valuehobby.com 2013-5-15...
