- Page 1 HDMI Wireless Extender 4K60Hz - 50m User's Guide P/N:HD20wireless G4-0149A...
-
Page 2: Important Safety Notices

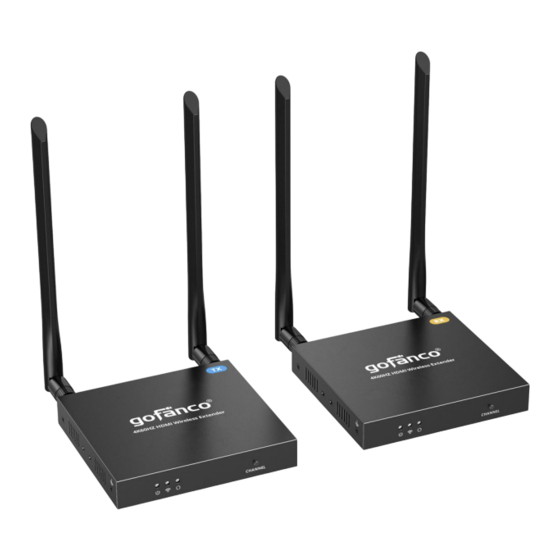

Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User's Guide for future reference. If you need more information about our products, please visit www.gofanco.com. - Page 3 Introduction The HDMI Wireless Extender 4K60Hz - 50m transmits HDMI signals wirelessly up to 164ft (50 m) at 4K@60Hz resolution. It requires no cables between the Transmitter (TX) and Receiver (RX), making the installation easy and clean. Great for homes and offices. Note: Wireless transmission distance will vary due to the environmental conditions.
-
Page 4: Installation Requirements
Package Contents • HDMI Wireless Extender 4K60Hz - 50m (1 TX and 1 • IR blaster cable (1pc) • IR receiver cable (1pc) • Antenna (4pcs) • Power adapter (2pcs) • Mounting accessories • User guide Installation Requirements HDMI source device (DVD player, set top box, PC, etc.) HDMI display device (SDTV/Monitor, HDTV/ Monitor, projector, etc.) - Page 5 Product Layout Figure 1: Transmitter (TX) 1. Power LED On when the transmitter is powererd on a) Slow flash: Waiting for connection 2. WiFi LED b) Solid on: Connection successful c) Quick flash: Pairing mode a) Light off: No HDMI signal 3.
- Page 6 Figure 2: Receiver (RX) 1. Power LED On when the receiver is powererd on a) Slow flash: Waiting for connection 2. WiFi LED b) Solid on: Connection successful c) Quick flash: Pairing mode a) Light off: No HDMI signal 3. Signal LED b) Solid on: HDMI signal transmitting c) Quick flash: Restore factory settings a) Quick press to switch WiFi channels...
-
Page 7: Hardware Installation
Hardware Installation Power off all devices including your HDMI source and HDMI display. Install the included antennas to the TX and RX. Pair the TX and RX. See SSID Channel Pairing on page 9. Connect your HDMI source device to the Transmitter's HDMI In connector with an HDMI cable (HDMI cable not included). - Page 8 10. Power on your HDMI source device and HDMI display. The wireless extender is ready for use. Note: For optimal signal range, install in a clear environment with few obstacles. Wireless signals from other devices may interfere with transmission. Contact our technical support team if you have specific questions.
-
Page 9: Factory Reset
SSID Channel Pairing When there are multiple wireless extender kits operating in close proximity, having the same SSID on each kit may cause interference or conflicts. It is suggested to change the SSID on one kit to help resolve the issue. Follow the SSID channel pairing steps below. - Page 10 Connection Diagram The diagram shows the typical devices used with the wireless extender. IR Blaster IR Receiver Figure 3: Connection Diagram Notice • Wireless signals transmitted through walls, glass, brick or other solid objects will cause signal loss and decrease the transmission distance •...
-
Page 11: Faq And Troubleshooting
FAQ & Troubleshooting The WiFi LED is on, but no video output on the remote display: 1) Check the HDMI source device is powered on. 2) Check the transmitter's and receiver's Signal LED is solid on. 3) Check the HDMI cables for solid connection. Use different HDMI cables if necessary. -
Page 12: Specifications
Specifications Compliance HDCP 2.2 / 1.4 3840x2160@24/30/50/60Hz, 1080p@ 50/60Hz, Resolutions 720p@50/60Hz, 1920x1200, 2560x1440, 2560x1600 WiFi Frequency 5.18 - 5.24 GHz Transmission Distance Up to 164ft (50m) at 4K60Hz Latency < 120ms Frequency: 20 - 60KHz Distance: < 5m Operating Temperature -4 to 140 F (-20 to 60 C) Storage Temperature -22 to 158 F (-30 to 70 C) - Page 13 Blank Page...
- Page 14 Blank Page...
- Page 15 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user's guide. The pictures on the user's guide are just for reference, and there may be some slight differences with the actual products. We reserve the right to make changes without prior notice to a product or system described herein to improve reliability, function, or design.
