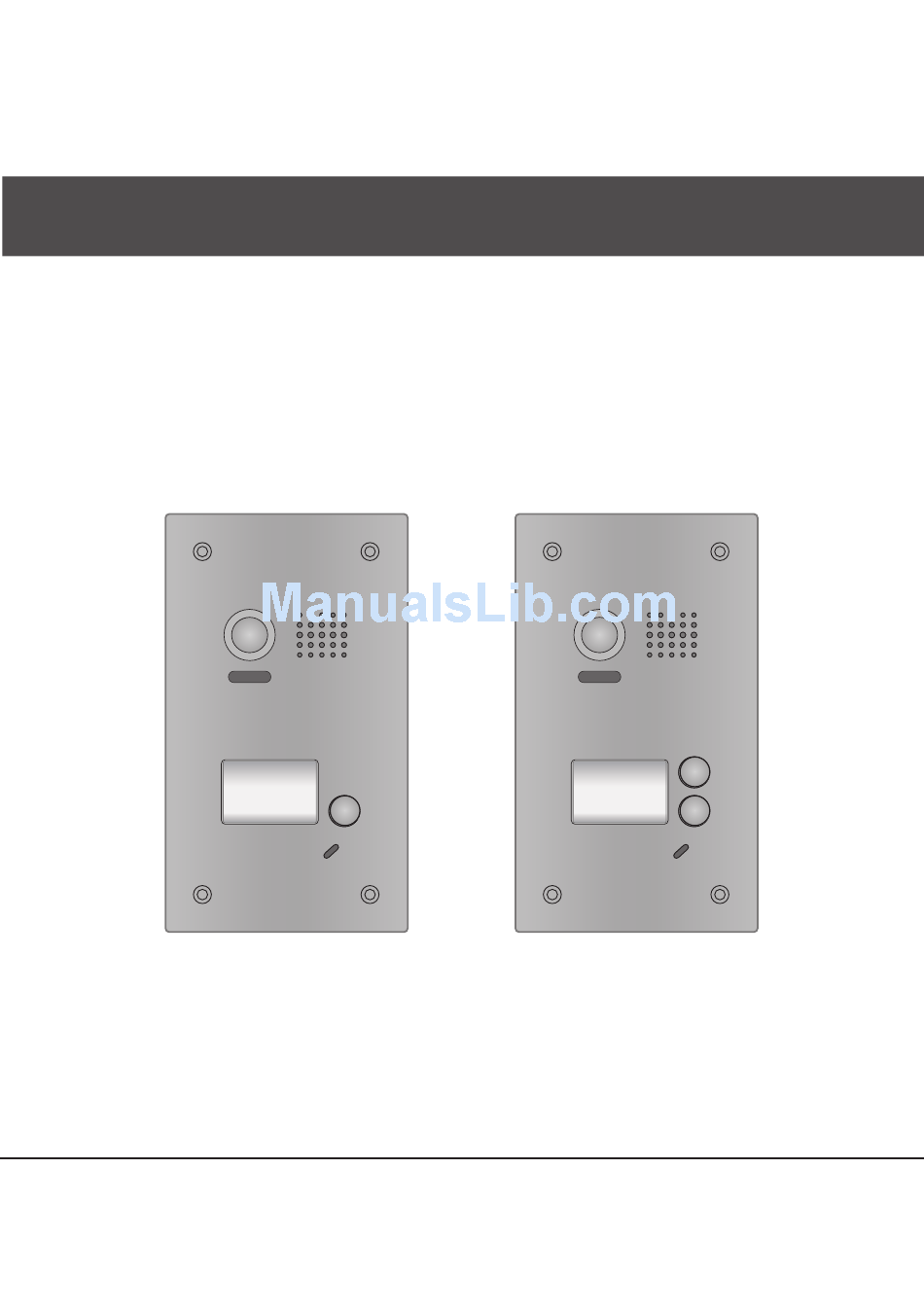

- Page 1 2 -Wire Intercom System CDV91/92F Series User Manual CDV91F CDV92DF DT-ENG-603F-V1 20141108...
-
Page 2: Parts And Functions
1.Parts and Functions Camera Lens Speaker Night Light Nameplate Call Button Microphone 110 mm Side View Mounting box 2.Terminal Descriptions JP/LK P L S + B U S Main Connect Port... -
Page 3: Specifications
• Lock control jumper, to select the lock type(see 5.2.1 , 5.2.2). JP/LK: • To connect the bus line and the electronic locks. Main Connect Port: • BUS: Connect to the bus line, no polarity. • PL: External lock power input, connect to the power positive(power +). •... -
Page 4: Placing Name Label
4.2 Placing Name Label From the rear of the metal section of the CDV91/92 unclip the plastic cover to open the transparent name plate, insert a name label and replace the plastic cover. Name label. STEP 1 STEP 2 Remove the screws. Replace name label. -
Page 5: Electric Lock Connection
5.2 Electric Lock Connection 5.2.1 Door Lock Controlled with Internal Power Note: Electronic lock of Power-on-to-unlock 1 2 3 For connection to a fail safe lock, jumper type should be used. position is 1-2. 1 2 3 The door lock is limited to 12V, and For connection to a fail secure lock, the jumper position is 2-3. -
Page 6: Multi Doorstations Connection
5.2.3 Unlock parameter setting(set on monitor) INSTALLER SETUP About Local Address 00.00 Video Standard AUTO System Verson 00.01.00 Display Driver Front 1.Touch icon on 2.Touch UNLOCK 3.A digital keypad will main menu page. button and hold for 2s. be shown. Note: 1. -
Page 7: Multi Monitors Connection
5.4 Multi Monitors Connection 5.4.1 Basic IN-OUT Wiring Mode Code=31 Code=30 Code=0 100~240VAC BUS(IM) BUS(DS) NOTE: DT47M monitor shown. (Device Address:0) - Page 8 5.4.2 With DBC4A Wiring Mode Impedance Code=31 Code=30 OFF ON switch Code=29 Code=28 Code=3 Code=2 Impedance OFF ON switch Code=1 Code=0 100~240VAC BUS(IM) BUS(DS) NOTE: DT47M monitor shown. (Device Address:0)
- Page 9 6. Setup Note: Monitor call button A calls user codes from 0 to 15 and button B calls user codes from 16 to 31. Please set monitor user codes (addresses) accordingly. 6.1 ID of Doorstation Settings The ID of doorstation can be set to ID0/ID1/ID2/ID3.The default is ID0. 1)Power-on &...
- Page 10 6.2 Unlock Time Settings The unlock time can be set to 1~30 seconds. The default is 1s. 1)Power-on & within 5 seconds; Press and hold "A" button for 3 2)Press and hold "B" button for 3 seconds to enter Unlock Time seconds to enter programming setting mode.
- Page 11 6.3 Ringtone Modes Settings The system supports three ringtone modes: [A]one ringtone, [B]continuous ringtone, [C]forbid ringtone. The default is one ringtone. 1)Power-on within 5 seconds; Press and hold "B" button for 3 2)Press and hold "B" button for 3 seconds at the same time, to seconds, it will enter the setting enter ringtone setting mode.
-
Page 12: Cables Requirements
7.Cables Requirements The maximum distance of the wiring is limited in the 2Easy system. Using different cables will also affect the maximum distance which the system can attain. The farthest monitor monitor with two to four monitors monitor monitor DBC4A 100~240VAC When Monitor quantity <...
