Altronix R2432UL Series Installation Manual page 3

9. Green power LEDs on faceplate will illuminate when AC power is present. When an output is in a trouble
condition (blown fuse or tripped PTC) the corresponding LED will not be illuminated (Fig. 1, pg. 3):
a. Blown fuse (R2432300UL and R2432600UL) - Set power switch on the back of the unit to the OFF
position (Fig. 1c, pg. 3). Remove faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA
(Altronix model # Fuse1).
b. Tripped PTC (R2432300ULCB and R2432600ULCB) - to reset PTC, set power switch on the back of
the unit to the OFF position. After approximately 30 sec. set power switch to the ON (RESET) position
(Fig. 1c, pg. 3).
10. Power switch with built-in circuit breaker:
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated. Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position (Fig. 1c, pg. 3).
Note: Do not exceed units electrical load ratings as indicated in reference chart (pg. 2).
Do not place mechanical load on unit. Data racks should always be properly ventilated.
Unit is designed optimally for normal data room office installations.
CAUTION: Equipment to be installed / serviced by authorized / trained personnel only.
Shut branch circuit power before installing / servicing equipment.
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture.
This installation should be made by qualified service personnel and should conform to
the National Electrical Code and all local codes.

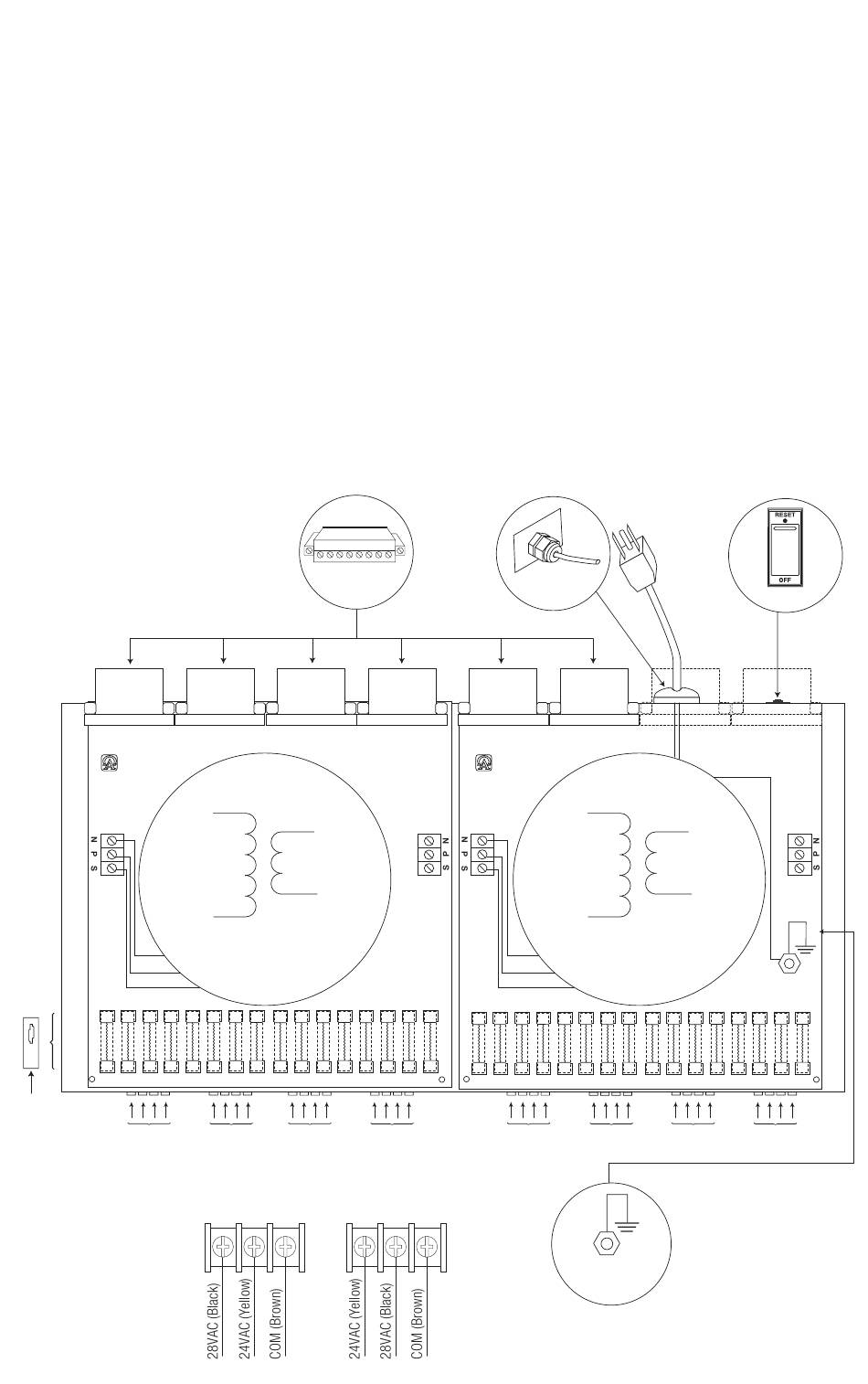

Fig. 1
PTC1
Used
on PTC
Models
AC Power
LEDs
Fig. 1d
R2432UL Series
Fig. 1a
Removable
Terminal
Block
XFMR*
AC Power AC Power AC Power
LEDs
LEDs
24VAC Output
(Factory Set) 28VAC Output
S P N S
Fig. 1b
Strain Relief
Line Cord
AC Power
LEDs
LEDs
P N
Fig. 1c
XFMR*
AC Power AC Power
LEDs
LEDs
Fig. 1e
Green Wire
Earth GND
Power Switch
AC Power
LEDs
