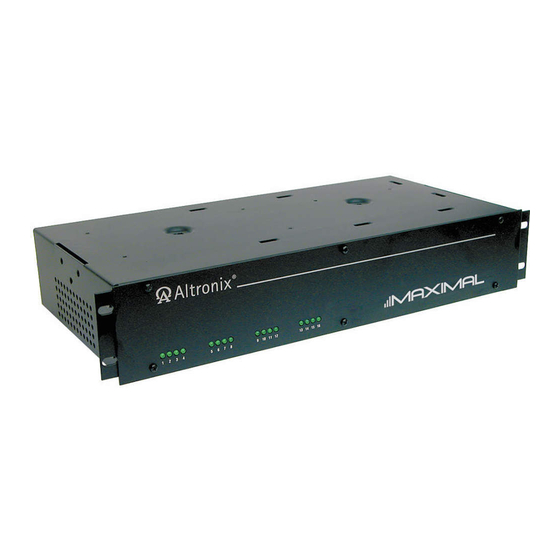

R2416UL Series
UL Listed Rack Mount
CCTV Power Supplies
Installation Guide
Models Include:
R2416UL
- 24VAC @ 7A (170VA) or
28VAC @ 6A (170VA).
- Sixteen (16) Fuse Protected Outputs.
R2416300UL
- 24VAC @ 14A (300VA) or
28VAC @ 12.5A (300VA).
- Sixteen (16) Fuse Protected Outputs.
R2416600UL
- 24VAC @ 28A (600VA) or
28VAC @ 25A (600VA).
- Sixteen (16) Fuse Protected Outputs.
Rev. 040506
R2416ULCB
- 24VAC @ 7A (170VA) or
28VAC @ 6A (170VA).
- Sixteen (16) PTC Protected Outputs.
R2416300ULCB
- 24VAC @ 14A (300VA) or
28VAC @ 12.5A (300VA).
- Sixteen (16) PTC Protected Outputs.
R2416600ULCB
- 24VAC @ 28A (600VA) or
28VAC @ 25A (600VA).
- Sixteen (16) PTC Protected Outputs.
More than just power.
TM
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Altronix R2416UL Series
Summary of Contents for Altronix R2416UL Series
- Page 1 R2416UL Series UL Listed Rack Mount CCTV Power Supplies Installation Guide Models Include: R2416UL R2416ULCB - 24VAC @ 7A (170VA) or - 24VAC @ 7A (170VA) or 28VAC @ 6A (170VA). 28VAC @ 6A (170VA). - Sixteen (16) Fuse Protected Outputs.
- Page 2 Overview: Altronix R2416UL Series Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Sixteen (16) Output Rack Mount Configuration Reference Chart: Altronix...
- Page 3 OFF position (Fig. 1e, pg. 3). Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1). b. Tripped PTC (R2416ULCB, R2416300ULCB, and R2416600ULCB) - To reset PTC, set power switch on the back of the unit to the OFF position.
