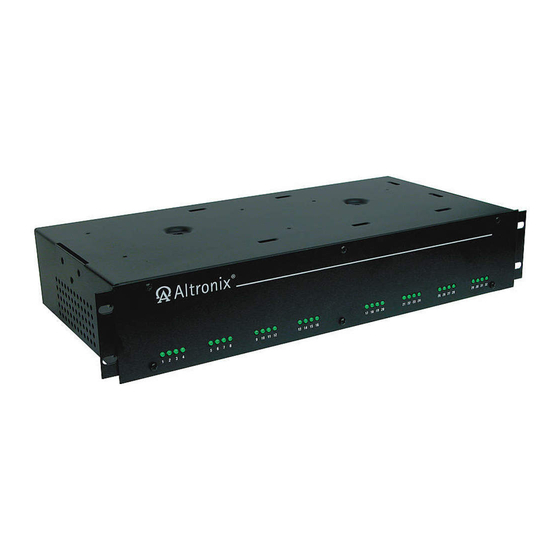

Rack Mount Series
UL Listed CCTV Power Supplies
Installation Guide
Models Include:
• R2432300UL
- 24VAC @ 12.5 amp (300VA).
or 28VAC @ 10 amp (280VA).
- Thrity-two (32) Fuse Protected Outputs.
• R2432600UL
- 24VAC @ 25 amp (600VA).
or 28VAC @ 20 amp (560VA).
- Thrity-two (32) Fuse Protected Outputs.
• R2432300ULCB
- 24VAC @ 12.5 amp (300VA).
or 28VAC @ 10 amp (280VA).
- Thrity-two (32) PTC Protected
Outputs.
• R2432600ULCB
- 24VAC @ 25 amp (600VA).
or 28VAC @ 20 amp (560VA).
- Thrity-two (32) PTC Protected
Outputs.
Rev. 020504
Advertisement
Related Manuals for Altronix R2432300UL
Summary of Contents for Altronix R2432300UL
-
Page 1: Installation Guide
Rack Mount Series UL Listed CCTV Power Supplies Installation Guide Models Include: • R2432300UL • R2432300ULCB - 24VAC @ 12.5 amp (300VA). - 24VAC @ 12.5 amp (300VA). or 28VAC @ 10 amp (280VA). or 28VAC @ 10 amp (280VA). - Page 2 Overview: These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via thirty-two (32) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. Thirty-two (32) Output Rack Mount Configuration Reference Chart: Altronix Model Number 12.5 amp (300VA)
- Page 3 (Green Wire Earth GND) Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1). b. Tripped PTC (R2432300ULCB & R2432600ULCB) - To reset PTC, set power switch on back of unit to the OFF position. After approximately 30 secs. set power switch to the ON (RESET) position (Fig. 1C, pg. 3).
- Page 4 FACEPLATE 19.125" .75" Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. IIR2432ULRackMountSeries B18D MEMBER - 4 -...
