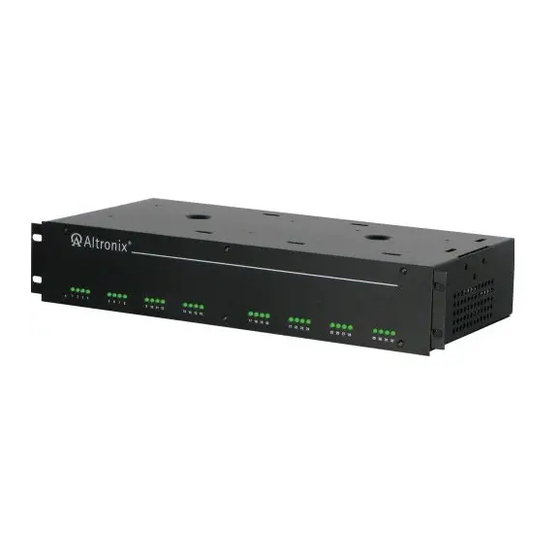

R2432UL Series
UL Listed Rack Mount
CCTV Power Supplies
Installation Guide
Models Include:
R2432300UL
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (280VA).
- Thirty-Two (32) Fuse Protected Outputs.
R2432600UL
- 24VAC @ 25A (600VA) or
28VAC @ 20A (560VA).
- Thirty-Two (32) Fuse Protected Outputs.
Rev. 020504
R2432300ULCB
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (280VA).
- Thirty-Two (32) PTC Protected Outputs.
R2432600ULCB
- 24VAC @ 25A (600VA) or
28VAC @ 20A (560VA).
- Thirty-Two (32) PTC Protected Outputs.
More than just power.
TM
Advertisement
Related Manuals for Altronix R2432UL Series
Summary of Contents for Altronix R2432UL Series
- Page 1 R2432UL Series UL Listed Rack Mount CCTV Power Supplies Installation Guide Models Include: R2432300UL R2432300ULCB - 24VAC @ 12.5A (300VA) or - 24VAC @ 12.5A (300VA) or 28VAC @ 10A (280VA). 28VAC @ 10A (280VA). - Thirty-Two (32) Fuse Protected Outputs.
- Page 2 Overview: Altronix R2432UL Series Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via thirty- two (32) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Thirty-Two (32) Output Rack Mount Configuration Reference Chart:...
- Page 3 Blown fuse (R2432300UL and R2432600UL) - Set power switch on the back of the unit to the OFF position (Fig. 1c, pg. 3). Remove faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1). b. Tripped PTC (R2432300ULCB and R2432600ULCB) - to reset PTC, set power switch on the back of the unit to the OFF position.
- Page 4 N P N P Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A. MEMBER IIR2432ULSeries...
