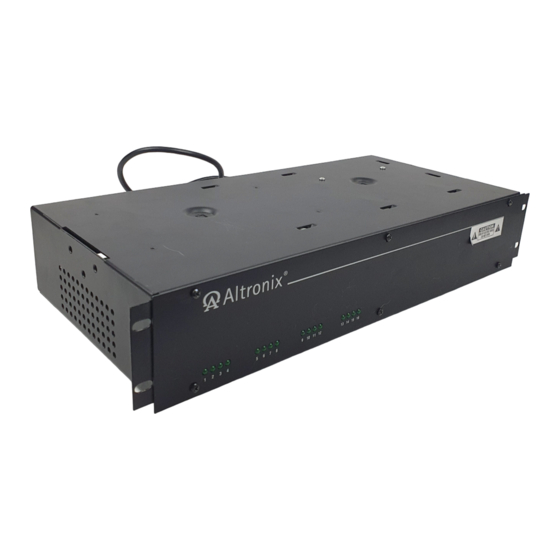

Rack Mount Series
UL Listed CCTV Power Supplies
Installation Guide
Models Include:
• R2416UL
- 24VAC @ 7 amp (170VA)
or 28VAC @ 6 amp (170VA).
- Sixteen (16) Fuse Protected Outputs.
• R2416300UL
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (280VA).
- Sixteen (16) Fuse Protected Outputs.
• R2416600UL
- 24VAC @ 25 amp (600VA)
or 28VAC @ 20 amp (560VA).
- Sixteen (16) Fuse Protected Outputs.
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
• R2416ULCB
- 24VAC @ 7 amp (170VA)
or 28VAC @ 6 amp (170VA).
- Sixteen (16) PTC Protected Outputs.
• R2416300ULCB
- 24VAC @ 12.5 amp (300VA)
or 28VAC @ 10 amp (280VA).
- Sixteen (16) PTC Protected Outputs.
• R2416600ULCB
- 24VAC @ 25 amp (600VA)
or 28VAC @ 20 amp (560VA).
- Sixteen (16) PTC Protected Outputs.
Rev. 040506
Advertisement
Related Manuals for Altronix R2416UL
Summary of Contents for Altronix R2416UL
-
Page 1: Installation Guide
Rack Mount Series UL Listed CCTV Power Supplies Installation Guide Models Include: • R2416UL • R2416ULCB - 24VAC @ 7 amp (170VA) - 24VAC @ 7 amp (170VA) or 28VAC @ 6 amp (170VA). or 28VAC @ 6 amp (170VA). -
Page 2: Specifications
Overview: These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via sixteen (16) fuse or PTC protected outputs for powering CCTV Cameras, heaters and other video accessories. Sixteen (16) Output Rack Mount Configuration Reference Chart: Altronix Model Number... - Page 3 (blown fuse or tripped PTC) the corresponding LED will not be illuminated (Fig. 1, pg. 3). a. Blown fuse (R2416UL, R2416300UL & R2416600UL) - Set power disconnect circuit breaker on back of unit to the OFF position (Fig. 1e, pg. 3).
- Page 4 View from front FACEPLATE 19.125" .75" Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA, 718-567-8181, fax: 718-567-9056 web site: www.altronix.com, e-mail: info@altronix.com, Lifetime Warranty, Made in U.S.A. MEMBER IIR2416ULSeries H20K - 4 - R2416ULseries Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
