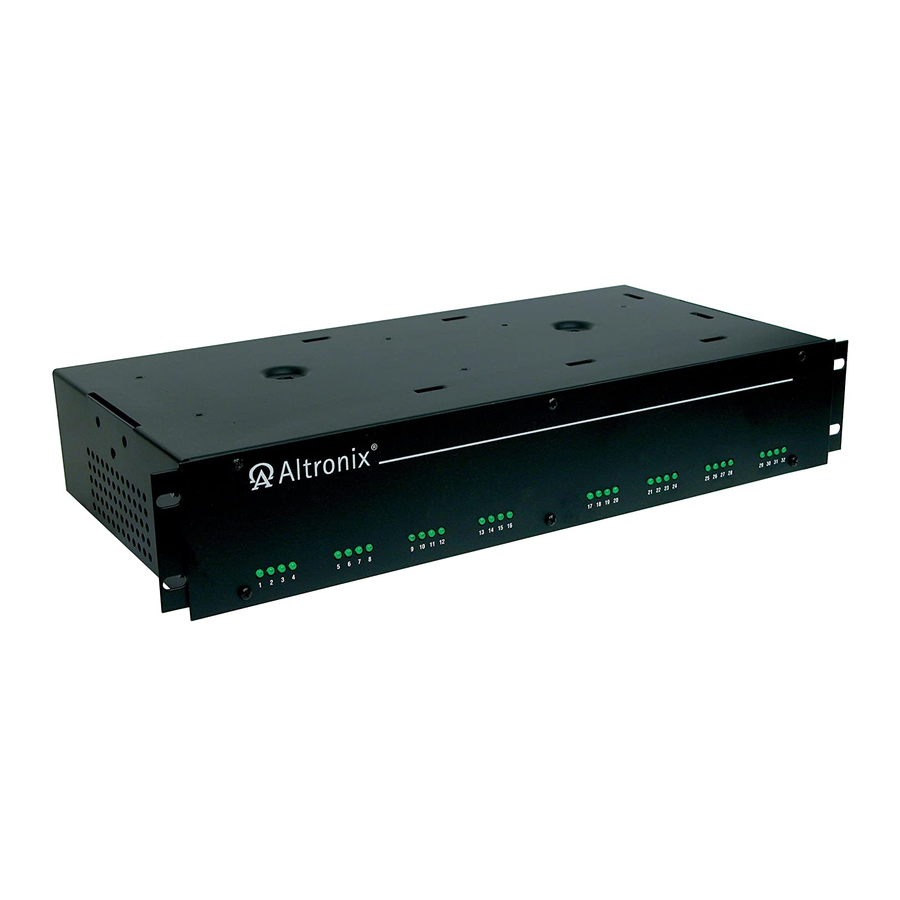

Rack Mount Series
UL Listed CCTV Power Supplies
Installation Guide
Models Include:
• R2432300UL
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (280VA).
- Thirty-two (32) Fuse Protected Outputs.
• R2432600UL
- 24VAC @ 25A (600VA) or
28VAC @ 20A (560VA).
- Thirty-two (32) Fuse Protected Outputs.
• R2432300ULCB
- 24VAC @ 12.5A (300VA) or
28VAC @ 10A (280VA).
- Thirty-two (32) PTC Protected Outputs.
• R2432600ULCB
- 24VAC @ 25A (600VA) or
28VAC @ 20A (560VA).
- Thirty-two (32) PTC Protected Outputs.
Rev. 020504
Advertisement
Related Manuals for Altronix R2432600UL
Summary of Contents for Altronix R2432600UL
-
Page 1: Installation Guide
28VAC @ 10A (280VA). 28VAC @ 10A (280VA). - Thirty-two (32) Fuse Protected Outputs. - Thirty-two (32) PTC Protected Outputs. • R2432600UL • R2432600ULCB - 24VAC @ 25A (600VA) or - 24VAC @ 25A (600VA) or 28VAC @ 20A (560VA). -
Page 2: Specifications
Overview: These Altronix Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via thirty-two (32) fuse or PTC protected outputs for powering CCTV cameras, heaters and other video accessories. Thirty-two (32) Output Rack Mount Configuration Reference Chart: Altronix Model Number 24VAC 12.5A... - Page 3 (blown fuse or tripped PTC) the corresponding LED will not be illuminated (Fig. 1, pg. 3): a. Blown fuse (R2432300UL and R2432600UL) - Set power switch on the back of the unit to the OFF position (Fig. 1c, pg. 3). Remove faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1).
- Page 4 N P N P Altronix is not responsible for any typographical errors. Altronix Corp. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
