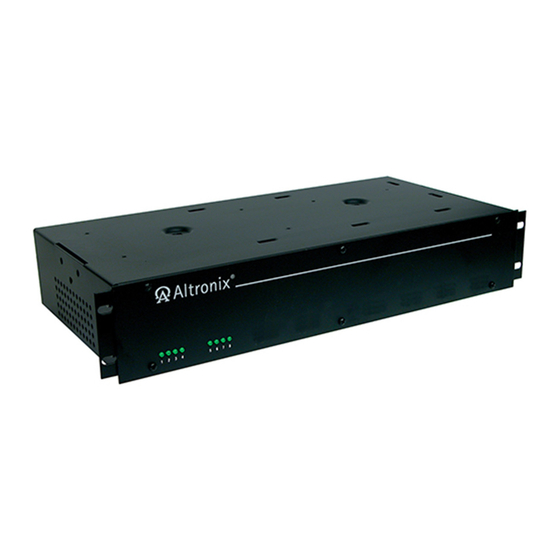

R248UL Series
UL Listed
8-Output Rack Mount CCTV Power Supplies
Models Include:
R248UL
- 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA).
- Eight (8) Fuse Protected Outputs
R248ULCB
- 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA).
- Eight (8) PTC Protected Outputs
Installation Guide
Rev. 040506
Installing Company: _______________ Service Rep. Name: __________________________________
Address: _____________________________________________ Phone #: __________________
More than just power.
TM
Advertisement
Table of Contents
Related Manuals for Altronix R248UL Series
Summary of Contents for Altronix R248UL Series
- Page 1 R248UL Series UL Listed 8-Output Rack Mount CCTV Power Supplies Models Include: R248UL - 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA). - Eight (8) Fuse Protected Outputs R248ULCB - 24VAC @ 3.5A (85VA) or 28VAC @ 3A (85VA).
- Page 2 Overview: Altronix R248UL Series Rack Mount CCTV Power Supplies provide 24VAC or 28VAC distributed via eight (8) fuse or PTC protected outputs for powering CCTV cameras, heaters, and other video accessories. Eight (8) Output Rack Mount Configuration Reference Chart: Altronix...
- Page 3 Line Cord Block Illuminated Power Disconnect Circuit Breaker with manual reset XFMR Used on PTC Models 24VAC Output (Factory Set) 28VAC Output AC Power AC Power Fig. 1e LEDs LEDs Green Wire Earth GND R248UL Series Installation Guide - 3 -...
- Page 4 Rear View N P N P N P N P Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty...
