3.3. Assembling the Craftbot Printer

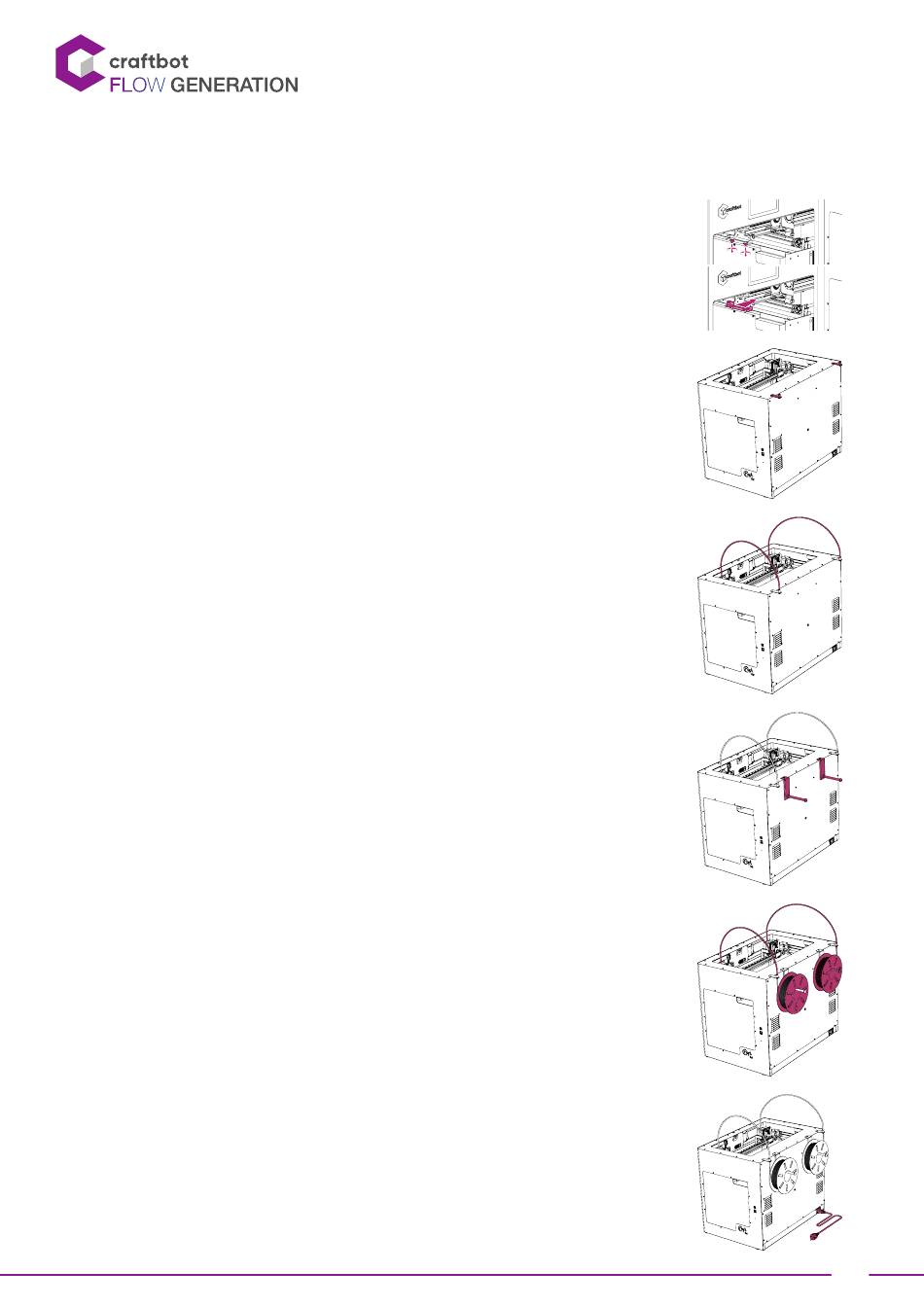

• Remove the X-rail clamps
- To ensure your product was delivered safely, there are two clamps on the
end of the X-rail. Safely remove these by using the hex key provided by
unscrewing the 2 screws on each clamp.
- Slide the clamps out by wiggling them from side to side.
• Install the filament guide tube holders
- Select the desired position for the filament guide holders. Choose their
position so that the filament spool holders fit beside them.
• Install the filament guide tubes
- Locate the filament guide tubes.
- Insert one end of the filament guide tubes into the filament guide tube
holder on top of the Craftbot appliance.
- Push the other end into the hole on the top of the extruder.
• Install the filament spool holders
- Locate the filament spool holders.
- Using a hex wrench, install the filament spool holder next to the filament
guide tube holders.
• Mount the filament spools
- Fit the filament spools onto the filament spool holders so that the lead
end keeps its course when the filament is fed into the filament guide tube
holder.
• Attach the power cord
- Ensure that the power switch on the Craftbot is set to the OFF position.
- Plug the AC power cord into the power input an the back
of the unit.
- Plug the power cord into a wall socket.
