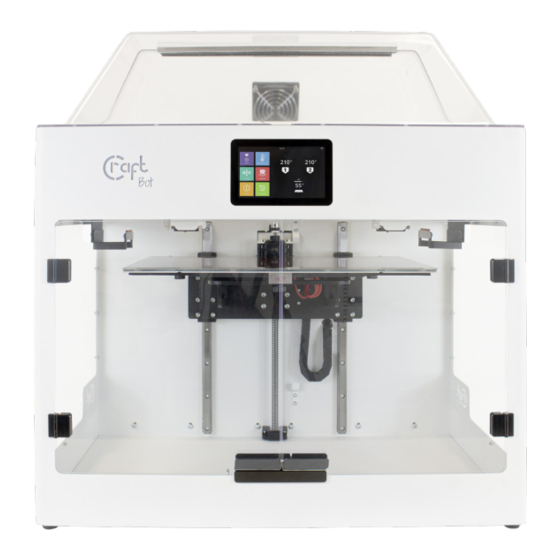

- Page 1 CRAFTBOT FLOW / FLOW XL IDEX / IDEX XL DOOR INSTALLATION MANUAL WWW. C R A FT B OT.C OM...
- Page 2 DOOR INSTALLATION MANUAL V1.0 Table of contents 1. Introduction ..........3 2.
- Page 3 That’s why we also offer the elegant and durable printer cover and door for Craftbot printers. Learning from previous feedback, the dome now consists of two parts so that we can easily reach the machine if necessary.
- Page 4 DOOR INSTALLATION MANUAL V1.0 2. Accessories Below you can see contents of the box. First of all, check the list to make sure nothing is missing! 1. Left door (1x) 2. Right door (1x) 3. Door lock (1x) 4. Door cable (1x) 5.
- Page 5 DOOR INSTALLATION MANUAL V1.0 • Secure the wire with the supplied cable holders. (10x) Recommended spacing is 10cm apart. • Attach the doors, one-by-one. Use the 1.5mm allen key as a spacer under the door. • Press the door againist the case and tighten the upper screw in the upper hinge. (2.00mm allen key) WWW.
- Page 6 DOOR INSTALLATION MANUAL V1.0 • Press the door againist the case and tighten the rest of the screws. (3x) • Check the gaps between the case and the doors. It should be even all around the door. • Arrange the door to the middle of the cutout. The gaps have to be equal on the sides. WWW.
- Page 7 DOOR INSTALLATION MANUAL V1.0 • Press the door lock againist the case and tighten the door lock securing screws, with the 1.5mm allen key. (2x) • Enable the door in the Settings / Door menu. • Adjust the other parameters if necessary. •...
- Page 8 Cooperation between 3D printer and people has never been easier. Cooperation between 3D printer and people has never been easier. G et in t o uch! G et in t o uch! CO N TACT: CO N TACT: C r a ftUn iq ue Ltd. C r a ftUn iq ue Ltd.
