7.6. Relocating the fan assembly to
the extruder assembly

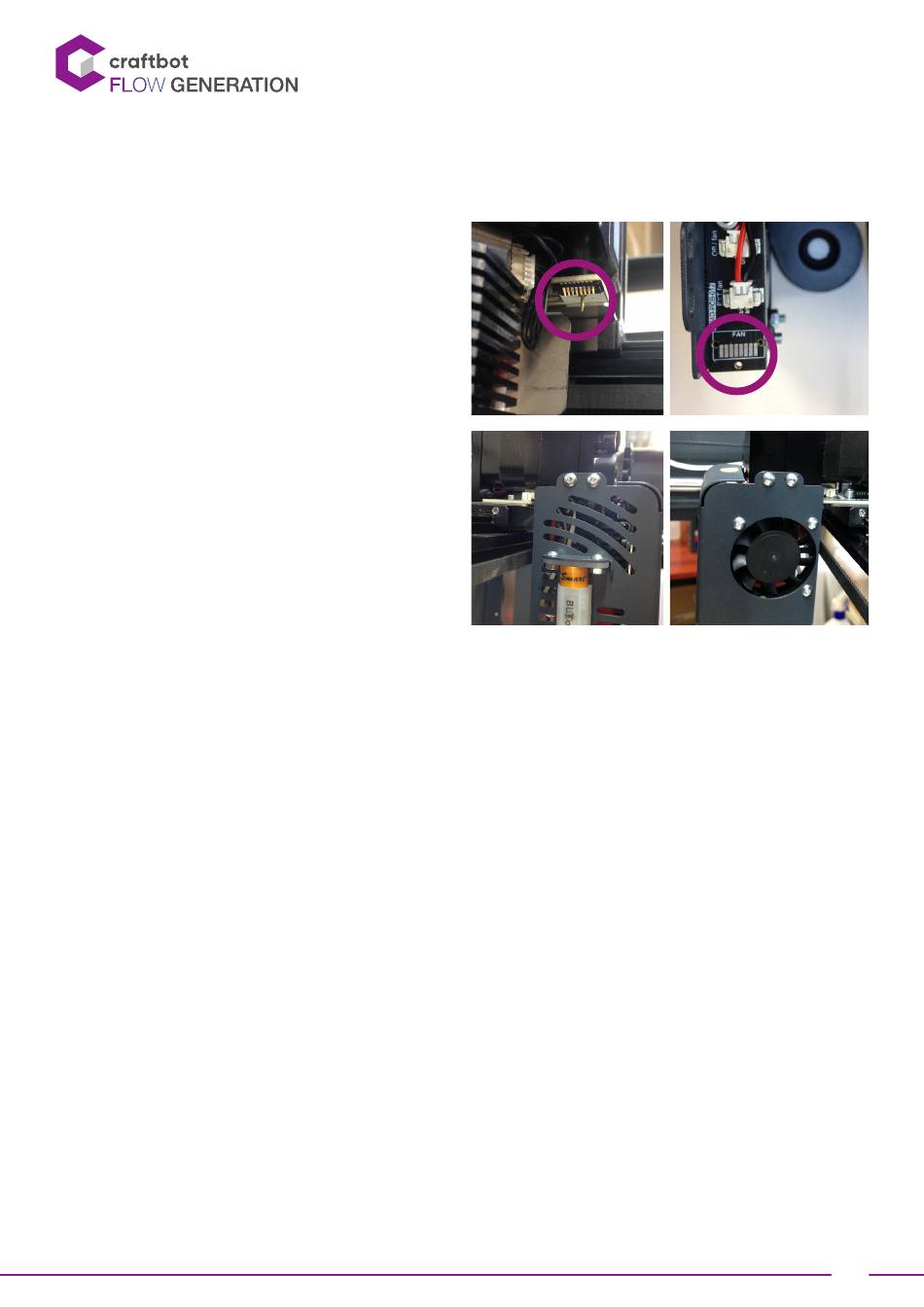

Move the fan Assembly over the extruder first about
1 centimeter below the required height. Gently lift
the fan assembly to connect to the 2 boards together
but first insert the central pin from the Extender
board into the hole of the Fan extender board below
it.
When you have inserted the pin into the central hole,
align the side bolt holes of the Extruder with the fan
casing holes and place an Allen key into the front
bolt hole on the right side again to keep it steady.
Start inserting the first bolt into the rear hole on the
right side to hold the correct position, taking some of
the stress off the pins.
Place the second bolt into the front left bolt hole
to hold the fan assembly more level and upright on
the extruder Assembly. Now use the Allen key to
secure all 4 of the bolts that attach the fan set to the
extruder assembly.
Now you have finished disassembling and
reassembling the extruder fan set from the extruder
assembly.
IDEX USER MANUAL
38
