5. Assembling the CraftBot printer

5.1.

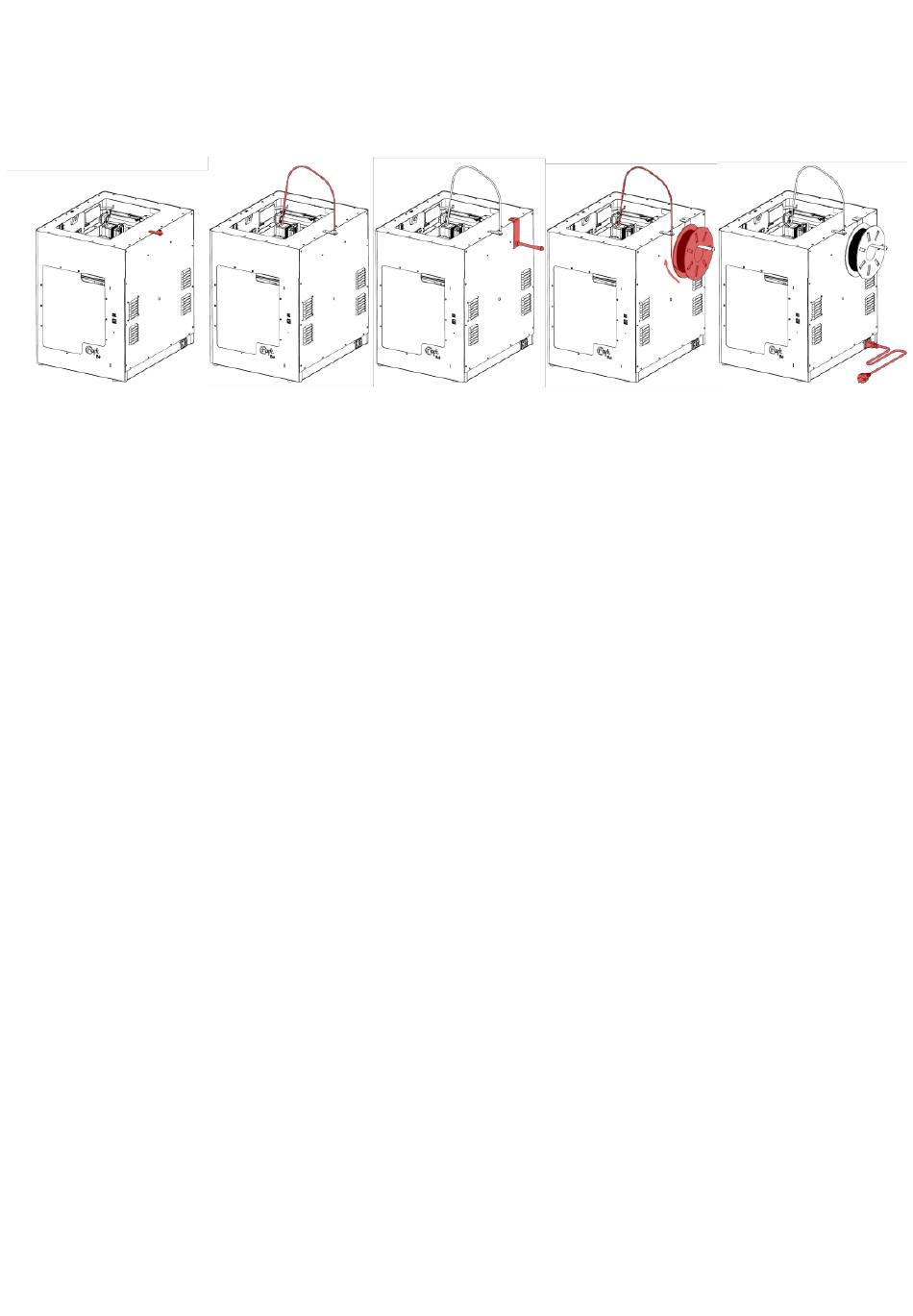

• Installing the filament guide tube holder

Select the desired position for the tube holder along the top of the printer.

Keep in mind that the spool holder must be installed directly next to it.

Using a hex wrench, install the filament guide tube holder onto the top of the

CraftBot.

• Installing the filament guide tube

Locate the filament guide tube.

Insert one end of the filament guide tube into the filament guide tube holder

on top of the CraftBot appliance.

Push the other end into the hole on the top of the extruder.

• Installing the filament spool holder

Locate the filament spool holder.

Using a hex wrench, install the filament spool holder next to the filament

guide tube holder.

• Mounting the filament spool

Fit the filament spool onto the filament spool holder so that the lead end

keeps its course when the filament is fed into the filament guide tube holder.

• Attaching the powercord

Ensure that the power switch on the CraftBot is set to the OFF position.

Find and then insert the AC power cord into the power input on the back of

the CraftBot.
