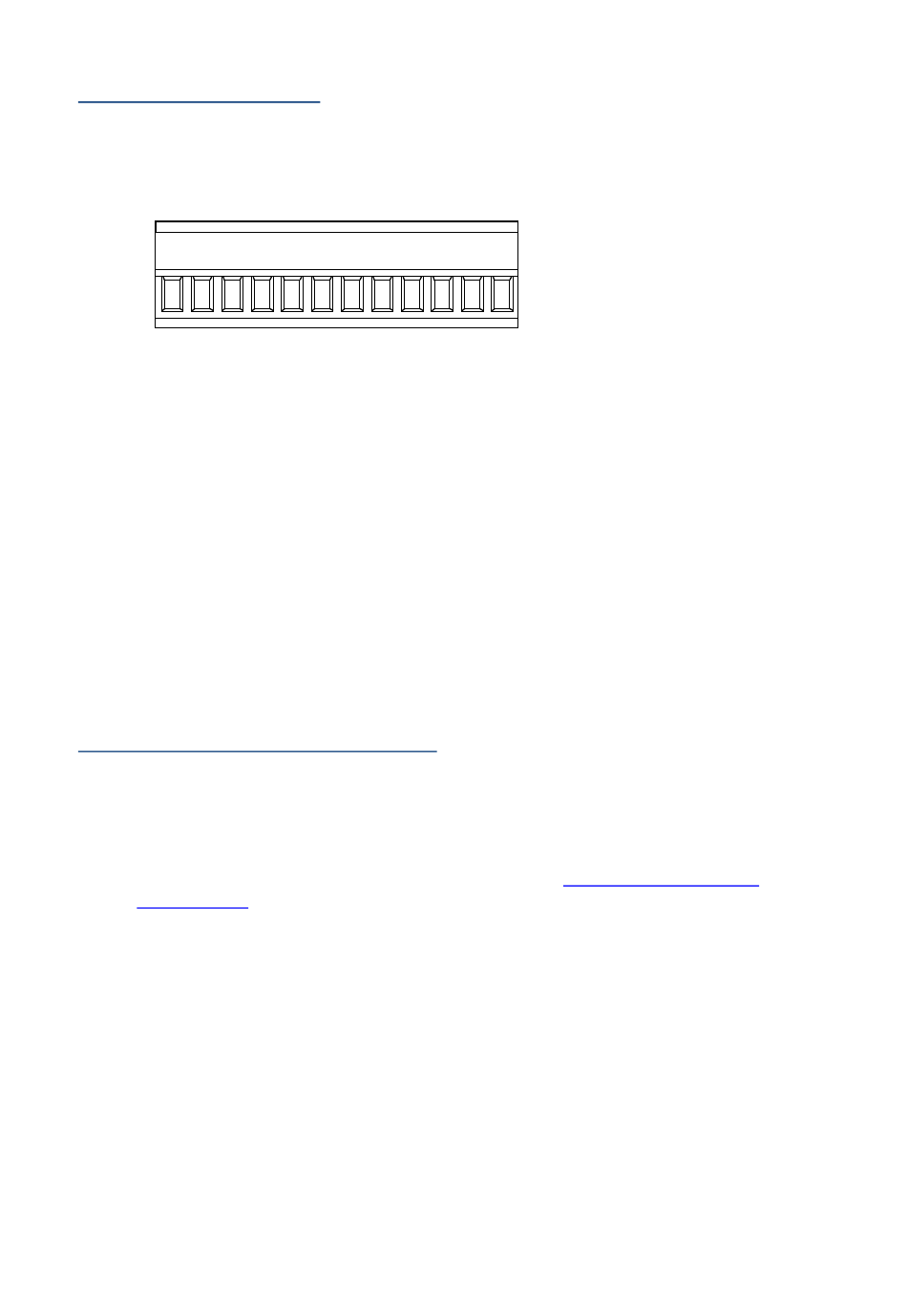

1. Connection Diagram
The only way to power the Wizard IP is over a PoE network connection. If the available network
switch does not have a PoE, it is recommended to order the Fasttel PoE injector (FTPoE).
1 2 3 4 5 6 7 8 9 10 11 12
Pin 1: GND Wiegand/external button
Pin 2: Wiegand D1
Pin 3: Wiegand D0
Pin 4: connection external button (simulates button 1) / reset
Pin 5: normally closed contact relay 2
Pin 6: normally open contact relay 2
Pin 7: shared contact relay 2
Pin 8: normally closed contact relay 1
Pin 9: normally open contact relay 1
Pin 10: shared contact relay 1
Pin 11: Not used
Pin 12: Not used
2. Find the Wizard in the Network
1. Via DHCP server:
During start‐up, the IP address obtained is shown in the Wizard's display.
Or search for the device using the "Advanced IP scanner" (http://www.advanced‐ip‐
scanner.com/) program (or similar software). The name is always formatted as
Fasttel0005510xxxx. Then navigate to the IP address in a browser and make the
configuration. The Mac address always begins as 00:05:51:
2. Without DHCP server:
Connect the Wizard through a PoE injector to a laptop or desktop and search for the device
using the "Advanced IP Scanner" program (or similar software). The name is always
formatted as Fasttel0005510xxxx. Then navigate to the IP address in a browser and make the
configuration.
Attention: after performing a factory reset the Wizard obtains ipaddress 192.168.222.123!
