Summary of Contents for Fasttel FT600KSIP

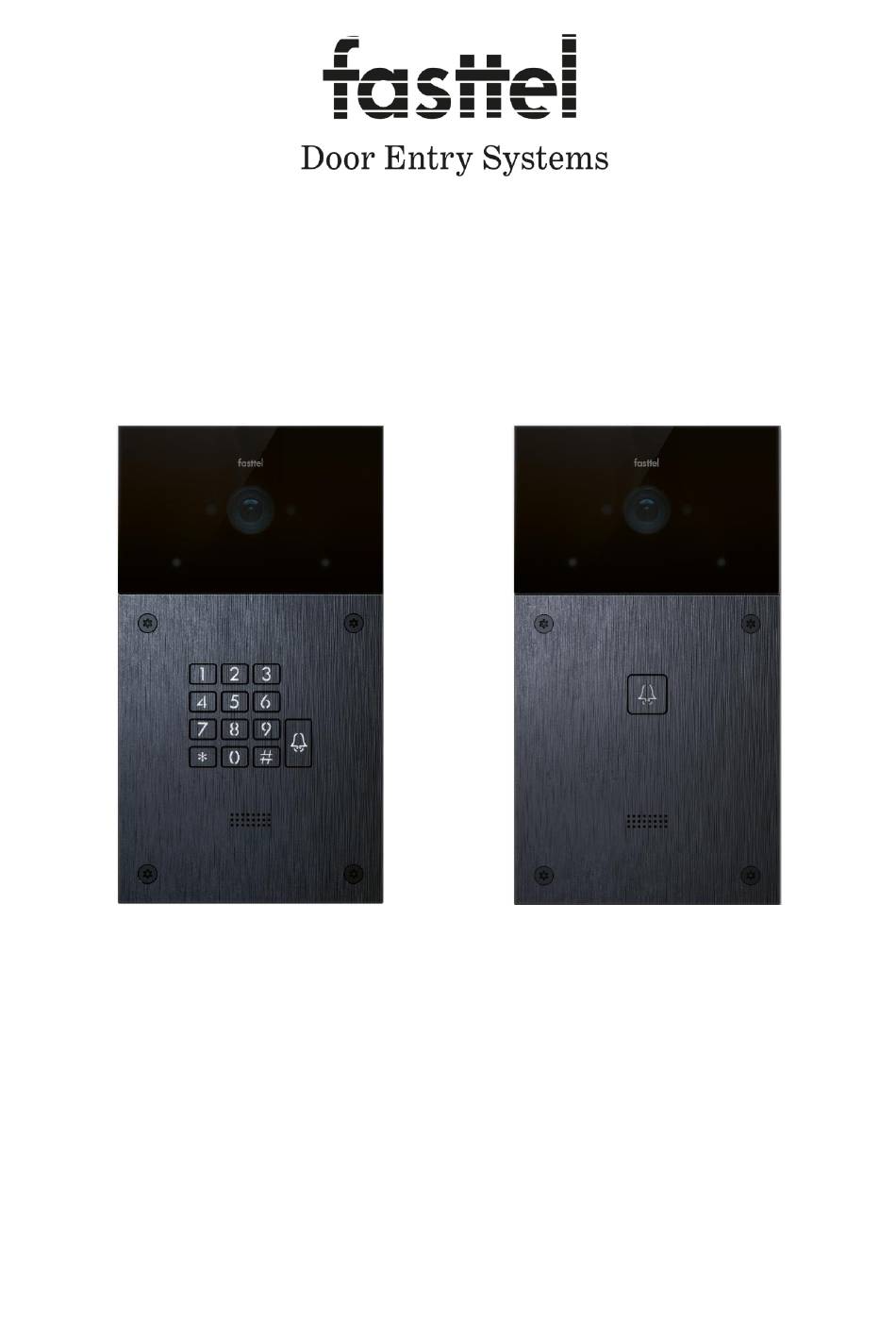

- Page 1 FT600KSIP FT600SIP Version: 2.0 | Date: Okt. 2022...
- Page 2 About This Manual Thank you for choosing Fasttel FT600(K)SIP series door phone. This manual is intended for the administrators who need to properly configure the door phone. This manual applies to 220.78.103.1 version, and it provides all the configurations for the functions and features of Fasttel door phone. Please visit Fasttel web or consult technical support for any new information or latest firmwares.
-
Page 3: Table Of Contents
Table of Contents Product Overview ..................6 Model Specification .................. 7 Introduction to Configuration Menu ............8 Access the Device ..................9 4.1. Obtain Device IP Address ..............9 4.2. Access the Device Setting on the Web Interface ......9 Language and Time Setting .............. - Page 4 9.3.6. Auto Answer ................31 9.3.7. Multicast..................31 9.3.8. Configure Maximum Call Duration .......... 32 9.3.9. Maximum Dial Duration ............33 9.3.10. Hang Up After Open Door ............34 Audio& Video Codec Configuration ............34 10.1. Audio Codec Configuration.............. 34 10.2.
- Page 5 14.1.2. RTSP Stream Setting ............... 57 14.2. MJPEG Image Capturing..............58 14.2.1. NACK ..................59 14.3. ONVIF ....................60 14.4. Live Stream ..................61 Logs ......................61 15.1. Call Logs .................... 61 15.2. Door Logs ..................62 Debug ....................... 64 16.1.
-
Page 6: Product Overview
Fasttel FT600(K)SIP is a SIP-compliant, hands-free and video door phone. It can be connected with Fasttel indoor monitors for remote access controlling and monitoring. Users can communicate with visitors via audio and video calls, and unlock the door if they need. -
Page 7: Model Specification
Housing Material 2 Mega pixels, automatic lighting Camera Relay In Relay Out √ RS485 √ 128MB 16MB Card Reader IP65 IP Rating IK Rating √ Wall Mounting √ Flush Mounting 216x116x36mm Wall Mounting Dimension 202x102x31mm Recess flush Mounting Dimension www.fasttel.com FT600(K)SIP... -
Page 8: Introduction To Configuration Menu
Mode selection : ⚫ 1. Discovery mode: It is a plug and play configuration mode. Fasttel devices will configure themselves automatically when users power on the devices and connect them to the network. It is a super time-saving mode and it will greatly bring users convenience by reducing manual operations. -
Page 9: Access The Device
FT600SIP: press the call button for about 5 seconds and a voice will announce the ip address through loudspeaker. FT600KSIP: press *3258* and a voice will announce the ip address through loudspeaker. 4.2. Access the Device Setting on the Web... -
Page 10: Language And Time Setting
Parameter Set-up: Time Zone: Select the specific time zone depending on where the device is ⚫ used and then press Confirm tab for the confirmation. The default time zone is GMT GMT+1.00. www.fasttel.com FT600(K)SIP... -
Page 11: Led Setting
1500, then the infrared light will be disabled ( the video image you see will have color). ⚫ Now: click Obtain to obtain the current environment brightness and use it as a reference to set up the photoresistor setting. www.fasttel.com FT600(K)SIP... -
Page 12: Led Settings On Keypad
6:00 pm to 22:00 pm during a day. 7. Volume and Tone Configuration Volume and tone configuration in Fasttel door phone refers to the microphone volume, speaker volume, temper alarm volume, ringback tone and open door tone configuration. Moreover, you can upload the tone you like to enrich your personalized user experience. - Page 13 80-95, and 2 is the second level of volume, the volume range is roughly 95-109. ⚫ Speaker Volume: adjust the speaker volume as needed. ⚫ Tamp Alarm Volume: adjust the volume for the tamper alarm. ⚫ Keypad volume: adjust the volume of the keypad. www.fasttel.com FT600(K)SIP...
-
Page 14: Open Door Tone Configuration
You can configure door phone ringback tone and other tones related to the door opening. 7.1.2.1. Upload Ringback Tone You can customize the ringback tone if you need. Please follow the prompt about the file size and format. On the web, navigate to Phone > Voice > Ringback Tone. www.fasttel.com FT600(K)SIP... -
Page 15: Network Setting
You can customize the tone of door open successful/failed if you need. On the web, navigate to Phone > Voice. 8. Network Setting 8.1. Network Status To check the network status on the web Status > Network Information interface. www.fasttel.com FT600(K)SIP... -
Page 16: Device Network Configuration
⚫ LAN DNS1/2: set up preferred or alternate DNS Server (Domain Name Server)according to your actual network environment. Preferred DNS server is the primary DNS server address while the alternate DNS server is the secondary server address and the door phone will connect to the www.fasttel.com FT600(K)SIP... -
Page 17: Device Deployment In Network
Community, Unit, Stair, Floor, Room in sequence. (not for FT600(K)SIP) ⚫ Device extension: enter the device extension number for the device you installed. (not for FT600(K)SIP) ⚫ Device Location: enter the location in which the device is installed and used. www.fasttel.com FT600(K)SIP... -
Page 18: Device Local Rtp Configuration
SIP assigned to other devices, resulting in failure to connect to it in the future. To do this configuration on web Account > Advance > NAT interface. www.fasttel.com FT600(K)SIP... -
Page 19: Snmp Setting
These variables can then be queried by managing applications. These variables accessible via SNMP are organized in hierarchies, which are described by Management Information Bases (MIBs). To do the configuration on the web Network > Advanced > SNMP interface. Parameter Set-up： www.fasttel.com FT600(K)SIP... -
Page 20: Vlan Setting
VLAN. To do the configuration on the web Network > Advanced > VLAN interface. Parameter Set-up: ⚫ Active: To enable or disable VLAN feature for designated port. ⚫ VID: To configure VLAN ID for designated port. ⚫ Priority: To select VLAN priority for designated port. www.fasttel.com FT600(K)SIP... -
Page 21: Tr069 Setting
To do the configuration on the web Network > Advanced > TR069 interface. Parameter Set-up: ⚫ Active: to enable or disable the TR069 feature. ⚫ Version: to select supported TR069 version (version 1.0 or 1.1). www.fasttel.com FT600(K)SIP... -
Page 22: Device Web Http Setting
This function is used to manage whether the device website is allowed to be accessed. The door phone supports two types of remote access methods HTTP and HTTPS(encryption). To do this configuration on the web Network > Advanced > Web Server interface. www.fasttel.com FT600(K)SIP... -
Page 23: Intercom Call
For example, if you do not allow direct IP call to be made on the device, you can click “Disable” to terminate the function. ⚫ Direct IP AutoAnswer: click “Enable” or “Disable” to turn the direct IP call www.fasttel.com FT600(K)SIP... -
Page 24: Sip Call &Sip Call Configuration
9.2.1. SIP Account Registration Fasttel door phones support two SIP accounts that can all be registered according to your applications. You can, for example, switch between them if any one of the account failed and become invalid. The SIP account can be configured on the device interface. -
Page 25: Sip Server Configuration
SIP server between intercom devices. To do this configuration also on web Account > Basic > SIP Server interface. Parameter Set-up: ⚫ Server IP: enter the primary server IP address number or its URL. ⚫ Server IP: enter the backup SIP server IP address or its URL. www.fasttel.com FT600(K)SIP... -
Page 26: Configure Outbound Proxy Server
⚫ Port: enter the Port number to establish call session via the primary outbound proxy server ⚫ Alternate Server IP: set up Backup Server IP for the backup outbound proxy server. ⚫ Port: enter the port number for establishing call session via the backup outbound proxy server. www.fasttel.com FT600(K)SIP... -
Page 27: Configure Data Transmission Type
Moreover, SRV can also be used to configure the priority and the weight of the server address. 9.3. Configure Calling Feature You can select the SIP account for making SIP calls. On the web, navigate to Intercom > Basic. www.fasttel.com FT600(K)SIP... -
Page 28: Dnd
486 for “busy here”. ⚫ DND On Code: turn on the DND on server using the Code obtained. The DND on Code is 78 by default. ⚫ DND Off Code: turn off the DND on server using the code obtained. The www.fasttel.com FT600(K)SIP... -
Page 29: Speed Dial Call
Intercom > Basic > Speed Dial interface. 9.3.3. Robin Call Robin call is used to initiate multiple numbers from one family in Fasttel Fasttelphone APP one by one. If the previous callee does not answer within the robin call timeout, the call will be transferred to the next one. -
Page 30: Web Call
FT600(K)SIP Door Phone Administrator Guide Parameters Set-up: ⚫ Robin Call Enable: it is disabled by default. It needs to be controlled by Fasttel FasttelPhone App. ⚫ Robin Call Timeout: call out time value for each number, ranging from 5 - 60s. -
Page 31: Auto Answer
To do the configuration on the web Phone > Multicast interface. Parameters Set-up: ⚫ Paging Barge: multicast or how many multicast calls are higher priority than SIP call, if you disable Paging Priority Active, SIP call will have high priority. www.fasttel.com FT600(K)SIP... -
Page 32: Configure Maximum Call Duration
If using SIP account to make a call, please pay attention to the max call time of the SIP server. If the max call time of SIP server is shorter than the max call time of the device, the shorter one is available. www.fasttel.com FT600(K)SIP... -
Page 33: Maximum Dial Duration
If using SIP account to make a call, please pay attention to the max call time of the SIP server. If the max call time of SIP server is shorter than the max call time of the device, the shorter one is available. www.fasttel.com FT600(K)SIP... -
Page 34: Hang Up After Open Door
10. Audio& Video Codec Configuration 10.1. Audio Codec Configuration Fasttel door phone supports four types of Codec (PCMU, PCMA, G729, G722) for encoding and decoding the audio data during the call session. Each type of Codec varies in terms of sound quality. You can select the specific codec with different bandwidths and sample rates flexibly according to the actual network environment. -
Page 35: Video Codec Configuration
16kHZ 10.2. Video Codec Configuration Fasttel door phone support H264 codec that provides a better video quality at a much lower bit rate with different video quality and payload. It is only available for SIP call. To set up video codec on web Account > Advanced interface. -
Page 36: Video Codec Configuration For Ip Direct Calls
“CIF”, “VGA”, “4CIF” and “720P”. The default code resolution is 4CIF. ⚫ Video Bitrate: Video Bitrate: select video bit-rate among six options: “64 kbps”, “256kbps”, “512 kbps”, “1024 kbps”, “2048 kbps” according to your network environment. The default video bit-rate is “2048 kpbs”. www.fasttel.com FT600(K)SIP... -
Page 37: Configure Dtmf Data Transmission
⚫ DTMF Payload: set the payload according to the specific data transmission payload agreed on between the sender and receiver during the data transmission. 11. Relay Setting 11.1. Relay Switch Setting You can configure the relay switch(es) and DTMF for the door access on the www.fasttel.com FT600(K)SIP... - Page 38 5 seconds ⚫ DTMF Option: select the number of DTMF digits for the door access control (Ranging from 1-4 digits ). For example, you can select 1 digit DTMF code or 2-digit DTMF code, etc, according to your need. www.fasttel.com FT600(K)SIP...
-
Page 39: Select Speed Dial Triggered Relay
11.2. Select Speed Dial triggered Relay This function is used to trigger a relay when you initiate the speed dial numbers. To do this configuration on the web Intercom > Basic>Trigger Relay Of Speed Dial interface. Parameters Set-up: www.fasttel.com FT600(K)SIP... -
Page 40: Web Relay Setting
“Webrelay” to enable the web relay. Select “Disable” to disable the web relay. Select “Both” to enable both local relay and web relay. ⚫ IP Address: enter the web relay IP address provided by the web relay manufacturer. www.fasttel.com FT600(K)SIP... -
Page 41: Configure White List For Door Relay
11.4. Configure White List for Door Relay For security, Fasttel door phone give permission for who can unlock the door by DTMF code. To do this configuration on the web Intercom > Relay > Open Relay Via DTMF interface. -
Page 42: Door Access Schedule Management
All Number. If None is selected, the DTMF code for unlock can not be available during the call. If WhiteList is selected, Fasttel door phone can only be unlocked by the contacts existing in the phone book. If All Number... -
Page 43: Create Door Access Schedule
To do this configuration on web Intercom > Schedules interface. To create a daily schedule, you can do as follows: Parameters Set-up: ⚫ Schedule Type: set the type of time period. There are three types to choose from: Daily, Weekly, and Normal. The default is Daily. www.fasttel.com FT600(K)SIP... -
Page 44: Door Unlock Configuration
To do this configuration on web Intercom > Relay > Open Relay Via HTTP interface. Parameter Set-up: ⚫ Switch: enable the HTTP command to unlock the function by clicking on www.fasttel.com FT600(K)SIP... -
Page 45: Configure Exit Button For Door Unlock
When you need to open the door from inside using the Exit button installed by the door, you can configure the door phone Input to trigger the relay for the door access on web Intercom > Input interface. Parameter Set-up: www.fasttel.com FT600(K)SIP... -
Page 46: Configure Pin Code For Door Unlock
12.6. Configure Public Code for Door Unlock Public PIN code is configured and used by the property in the same building or in the same community. To do this configuration on the web Intercom > Basic > Public PIN interface. www.fasttel.com FT600(K)SIP... -
Page 47: Configure Private Pin Code On The Web Interface
On the web interface, you can not only set up PIN code, but also set and select the door access schedule that you created for the validity of the PIN Code access during a certain time span you scheduled. Path: Intercom > Private Key www.fasttel.com FT600(K)SIP... -
Page 48: Security
Tamper alarm will be triggered off when the door phone changes its gravity value as opposed to its original gravity value set up when the device is installed. To do this configuration on the web Intercom > www.fasttel.com FT600(K)SIP... -
Page 49: Client Certificate Setting
Fasttel door phone. Then the door phone will verify this certificate according to client certificate list. -
Page 50: Web Server Certificate
⚫ Action to execute: To choose which action to execute after triggering. 13.2.2. Web Server Certificate To upload Web Server certificate on the device web interface Security > Advanced > Web Server Certificate. 13.2.3. Client Certificate To upload and configure client certificate on the same page. www.fasttel.com FT600(K)SIP... -
Page 51: Security Notification Setting
If you select Disabled, the phone will not verify the server certificate no matter whether the certificate is valid or not. 13.3. Security Notification Setting 13.3.1. Email Notification Setting www.fasttel.com FT600(K)SIP... -
Page 52: Ftp Notification Setting
FTP notification on the web Intercom > Action > FTP Notification properly. Parameter set-up: ⚫ FTP Server: enter the address (URL) of the FTP server for the FTP notification. ⚫ FTP User Name: enter the FTP server user name. ⚫ FTP Password: enter the FTP server password. www.fasttel.com FT600(K)SIP... -
Page 53: Sip Call Notification Setting
If Email is selected, the Emails containing a screenshot of the caller will be sent. If HTTP is selected, you can add the event message to the HTTP URL before sending. ⚫ Http URL: enter the HTTP URL that will be sent to the Http server. For example:http//192.168.31.6/door phone#1. www.fasttel.com FT600(K)SIP... -
Page 54: Http Url Notification Configuration
FT600(K)SIP Door Phone Administrator Guide 13.3.5. HTTP URL Notification Configuration Fasttel door phones support sending the HTTP notification to the third party when some features are triggered. HTTP notification can be set up in specific chapters, please check chapter 16.4. The URL format: http://http server IP address/any information. -
Page 55: Voice Encryption
“Fasttel”, model number and firmware version from PCAP. To do this configuration on the web Account > Advanced > User Agent interface. Parameter Set-up: ⚫ User Agent: support to enter another specific value, Fasttel is by default. www.fasttel.com FT600(K)SIP... -
Page 56: Monitor And Image
14. Monitor and Image 14.1. RTSP Stream Monitoring Fasttel door phones support RTSP stream that allows intercom devices such as indoor monitor or the monitoring unit from the third party to monitor or obtain the real time audio/ video (RTSP stream) from the door phone using the correct URL. -
Page 57: Rtsp Stream Setting
After enabling RTSP feature, the video RTSP is enabled by default and can not be modified. ⚫ RTSP Video2 Enabled: Fasttel door phones support 2 RTSP streams, you can enable the second one. ⚫ RTSP Audio Codec: choose a suitable audio codec for RTSP audio. -
Page 58: Mjpeg Image Capturing
14.2. MJPEG Image Capturing Fasttel door phones allow you to capture the Mjpeg format monitoring image if needed. You can enable the Mjpeg function on Intercom > RTSP > RTSP Basic and set the image quality on the web Intercom > RTSP > MJPEG Video Parameters interface. -
Page 59: Nack
⚫ Video Quality: the video bitrate, from 50 to 90. 14.2.1. NACK NACK (Negative Acknowledgement) used to ensure the smooth and continued data transmission for the video call. To enable NACK, navigate to Phone > Call Feature > Others. www.fasttel.com FT600(K)SIP... -
Page 60: Onvif
14.3. ONVIF Real-time video from the door phone camera can be searched and obtained by the Fasttel indoor monitor or by third party devices such as NVR (Network Video Recorder) you can configure the ONVIF function on the web Intercom >... -
Page 61: Live Stream
If you want to check on the calls inclusive of the dial-out calls, received calls and missed calls in a certain period of time, you can check and search the call log on the device web Phone > Call Log interface. www.fasttel.com FT600(K)SIP... -
Page 62: Door Logs
If you want to search and check and import/export the various types of door access history, you can search and check the door logs on the device web Phone > Door Log interface. Parameter Set-up: ⚫ Index: the order of the call logs. www.fasttel.com FT600(K)SIP... - Page 63 ⚫ Type: if opening the door via PIN code, Password will be displayed. If the door is opened by HTTP command, Http will be displayed. ⚫ Date: the date for opening the door. ⚫ Time: the time for opening the door. ⚫ Status: the door opening result Success or Failed. www.fasttel.com FT600(K)SIP...
-
Page 64: Debug
⚫ LogLevel: select log levels from 1 to 7 levels. You will be instructed by Fasttel technical staff about the specific log level to be entered for debugging purpose. The default log level is “3”. the higher the level is, the more complete the log is. -
Page 65: Remote Debug Server
⚫ Port: enter the remote debug server port. 16.3. PCAP PCAP in Fasttel door phone is used to capture the data package going in and out of the devices for debugging and troubleshooting purpose. You can set up the PCAP on the device web Upgrade > Advanced > PCAP interface properly before using it. - Page 66 1M maximum in capacity. If you set it as “Disable” the PCAP will stop data packet capturing when the data packet captured reached the maximum capturing capacity of 1MB. www.fasttel.com FT600(K)SIP...
-
Page 67: Firmware Upgrade
FT600(K)SIP Door Phone Administrator Guide 17. Firmware Upgrade Firmwares of different versions for Fasttel door phone can be upgraded on the device web Upgrade > Basic interface. Parameter Set-up: ⚫ Upgrade: Choose.rom firmware from your PC, then click Submit to update. -
Page 68: Auto-Provisioning
DHCP, PNP, TFTP, FTP, HTTPS are the protocols used by the Fasttel intercom devices to access the URL of the address of the third party server which stores configuration files and firmware, which will then be used to to update the firmware and the corresponding parameters on the door phone. -
Page 69: Configuration Files For Auto-Provisioning
MAC number. And the configuration files named with device MAC number will be matched automatically with the device MAC number before being downloaded for the provisioning on the specific device. To get the Autop configuration file template on Upgrade > Advanced > Automatic Autop interface. www.fasttel.com FT600(K)SIP... -
Page 70: Autop Schedule
MAC-based configuration files. 19.3. AutoP Schedule Fasttel provides you with different Autop methods that enable the door phone to perform provisioning for itself at a specific time according to your schedule. Parameter Set-up: ⚫... -
Page 71: Static Provisioning Configuration
⚫ Common AES Key: set up AES code for the intercom to decipher the general Auto Provisioning configuration files. ⚫ AES Key (MAC): set up AES code for the intercom to decipher the MAC- based auto provisioning configuration file. www.fasttel.com FT600(K)SIP... - Page 72 ⚫ HTTP: http://192.168.0.19/ (use the default port 80) ⚫ http://192.168.0.19:8080/ (use other ports, such as 8080) ⚫ HTTPS: https://192.168.0.19/ (use the default port 443) Note: ⚫ Fasttel do not provide user specified server. ⚫ Please prepare TFTP/FTP/HTTP/HTTPS server by yourself. www.fasttel.com FT600(K)SIP...
-
Page 73: Integration With Third Party Device
FT600(K)SIP Door Phone Administrator Guide 20. Integration with Third Party Device 20.1. Integration via Wiegand If you want to integrate Fasttel door phone with the third party devices via Wiegand, you can configure the Wiegand on the web Intercom > Wiegand interface. -
Page 74: Integration Via Http Api
20.2. Integration via HTTP API HTTP API is designed to achieve a network-based integration between the third party device with the Fasttel intercom device. You can configure the HTTP API function on the web Intercom > HTTP API interface for the integration. - Page 75 Mode No authentication is required for HTTP API as it None is only used for demo testing. This mode is used by Fasttel developer only. Normal If this mode is selected, you are only required to WhiteList fill in the IP address of the third party device for the authentication.
-
Page 76: Integration With Milestone
FT600(K)SIP Door Phone Administrator Guide 20.3. Integration with Milestone Fasttel multi-tenant door phone integrate with Milestone surveillance system, to do this configuration on the web Intercom > Onvif interface. Parameter Set-up: ⚫ Milestone Enable: enable to integrate with Milestone system. It is disabled by default. -
Page 77: Configure Web Interface Automatic Logout
To do the configuration on the web Security > Basic > Session Time Out interface. Parameters Set-up: ⚫ Session Time Out Value: the range from 60 to 14400 sec. If there is no operation over time, you need to log in the website again. www.fasttel.com FT600(K)SIP... -
Page 78: System Reboot&Reset
If you want to restart the device system, you can operate it on the device Upgrade > Basic web interface as well. 22.2. Reset If you want to reset the device system to the factory setting, you can it on the web Upgrade > Basic interface. www.fasttel.com FT600(K)SIP... -
Page 79: Abbreviations
HTTPS: Hypertext Transfer Protocol Secure Socket Layer IP: Internet Protocol ID: Identification IR: Infrared LCD: Liquid Crystal Display LED: Light Emitting Diode MAX: Maximum POE: Power Over Ethernet PCMA: Pulse Code Modulation A-Law PCMU: Pulse Code Modulation µ-Law www.fasttel.com FT600(K)SIP... - Page 80 SNMP: Simple Mail Transfer Protocol SDMC: SIP Devices Management Center TR069: Technical Report069 TCP: Transmission Control Protocol TLS: Transport Layer Security TFTP: Trivial File Transfer Protocol UDP: User Datagram Protocol URL: Uniform Resource Locator VLAN: Virtual Local Area Network WG: Wiegand www.fasttel.com FT600(K)SIP...
-
Page 81: Faq
LED turns blue and it will enter into IP announcement mode. In announcement mode, the IP address will be announced 1x. ✔ For devices FT600KSIP: While FT600KSIP power up normally, press “*3258*” and it will enter into IP announcement mode. In announcement mode, the IP address will be announced 1x.
